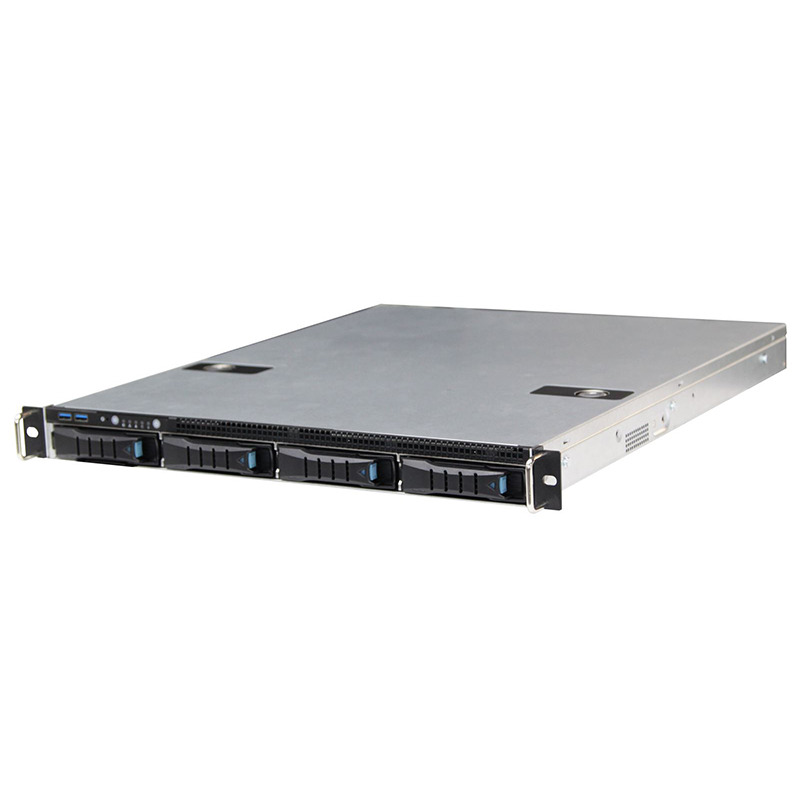

AIC 1U 12G Short Storage Server Chassis 4 x 3.5" Hot-Swap + 4 x 9mm 2.5" Internal with 400W Single PSU (Rails Included) * Expander On Board
RSC-1DTS-BAS4-12GWant it delivered by 10th May 2024? Order within 19 Hours and 23 minutes and get it delivered the next working day as standard.
Order this product before 4.30pm today and get it delivered for only £9.20* on 10th May 2024.
* Shipping price is for UK Mainland. Other destinations are calculated at the checkout.
Key Features
• Tool-less design supports quick installation and easy maintenance:
- Tool-less 2.5" drive trays
- Tool-less slide rail
• Supports 4 x 12G 3.5" hot swap drive bays
• Includs 400W single power supply
• Support 1 full height expansion slot
• One front access USB 3.0 port
RSC-1DTS is a T-series 1U SAS/SATA storage server chassis supports external 4 x 12G 3.5" hot swap and internal 4 x 2.5" (9mm) drive bays. This environmentally friendly solution features high-efficiency power supply, SGCC pre-plated steel, tool-less ball-bearing mounting rail, easy-swap PWM fans, and overall short depth, offering a cost-effective solution ideally suited for a broad range of applications, and especially space-concerned users. (Power supply is included. Motherboard is not included.)
| Dimensions (W x D x H) |
| • mm: 483 x 560 x 43.5 • inches: 17 x 22 x 1.72 |
| Industry Standard |
| EIA-RS310D |
| Material |
| SGCC |
| Color |
| Front Panel: Black |
| Cooling |
| Middle: 4 x 40x28mm PWM fans |
| Power Supply |
| Standard: 400W single PSU Option: 300W 1+1 redundant |
| Expansion Slot |
| 1 full height |
| Front Panel |
| System power on/off and system reset, 1 x USB 3.0 port |
| LED Indicators |
| • Power • HDD • LAN |
| System Board |
| Up to 12"(W) x 9.6"(D) ATX MB |
| Drive Bays |
| • External: 3.5" hot swap x 4 • Internal: 2.5" x 4 (9mm) |
| Backplanes |
| 4-port with SFF-8643 connector supports 12G |
| Storage Temperature |
| 0°C(32°F) ~ 50°C(122°F) |
| Humidity |
| 5% ~ 95% non-condensing |
| Gross Weight (w/ PSU & Rail) |
| • kgs: 14 • lbs: 30.9 |
| Package Dimension (W x D x H) |
| • mm: 588 x 730 x 178 • inches: 23.1 x 28.7 x 7 |
| Cubic Feet |
| 4.2 |
| Container Load Quantity |
| • 20’: 200 • 40’: 400 • 40’H: 450 |
| Mounting |
| Standard: 28” tool-less slide rail |
