AIC 1U 6G Enterprise Storage Chassis 12 x 3.5" + 2 x 2.5" 7mm Internal High Density Server with 520W single Platinum PSU (Rails Included)

Key Features

• High-density design for space saving (cost saving)
• 1 drawer to load up to 12 hot swap drives
• Tool-less design supports quick installation and easy maintenance:
• Tool-less 3.5” drive trays
• Tool-less top covers
• Anti-vibration rubbers on drive trays and fans
• Silicon gaskets to absorb vibration from sides of drives
• Easy swap system fans designed to minimize rotational vibration while providing superior cooling

Features And Benifits

As the manager or operator of a data center, it is important to maintain tight control over costs while providing the maximum uptime for your customers. For that reason, AIC has developed the RSC-1C, a 1U 12-Bay storage server chassis. It enables data center services companies that run object storage applications a more efficient and economical solution. If you run Ceph, the RSC-1C is designed to provide abundant storage space and support for computing power to meet shifting application requirements. The tool-less design makes installation and maintenance quick and easy. Rubbers on the drive tray and silicon gaskets protect against vibrations. Its high-density, space-saving design saves you money. Its drives can be hot swapped at a moment’s notice, resulting in less downtime.

Dimensions (W x D x H) (with chassis ears)
• mm : 483 x 910 x 44
• inches : 19 x 35.8 x 1.73

Industry Standard
EIA-RS310D

Material
Heavy-duty preplated SPGC cold-rolled steel

Color
Not coated

Cooling
Middle : 5 x 40x28mm PWM easy swap fans

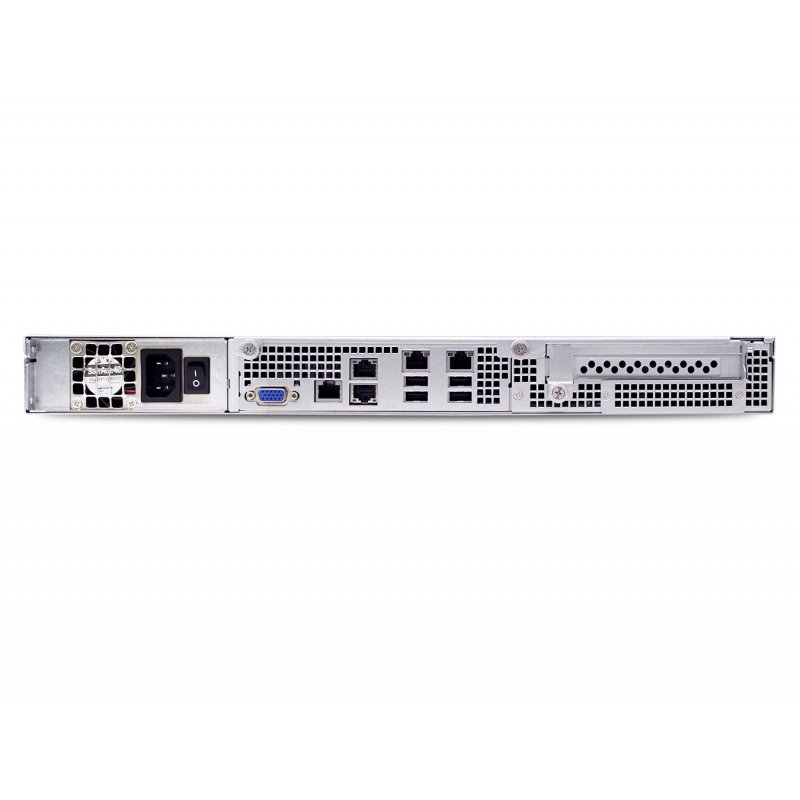

Power Supply
520W single PSU PMBus 1.2 80+ Platinum

Expansion Slot
1 full height via riser card (Please see Optional Product for details)

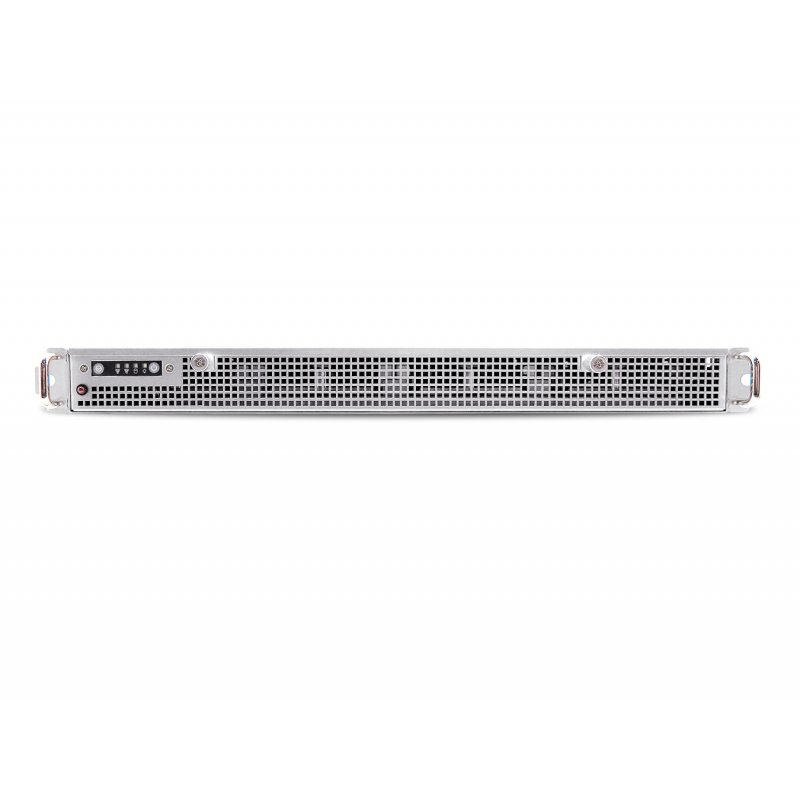

Front Panel
• Power on/off
• System reset

LED Indicators
• Power
• LAN
• Drive

System Board
12”(W) x 9.6”(D) ATX

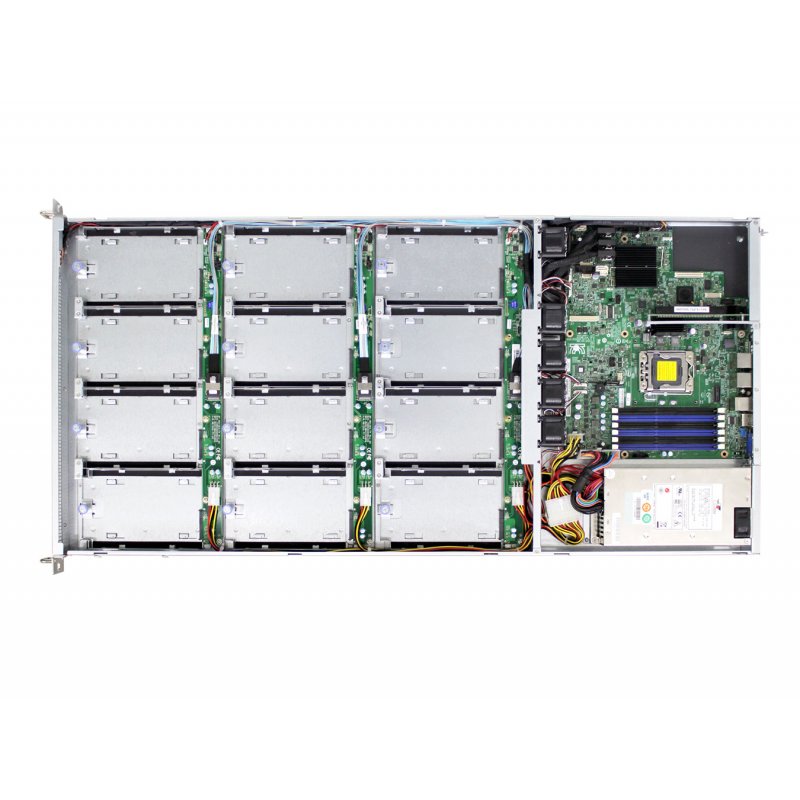

Drive Bays
Internal : 12 x 3.5” hot swap & 2 x 2.5”

Backplanes
3 x 4-port 6Gb SAS backplanes with single SFF-8087 connector on each

Storage Temperature
0°C(32°F) ~ 50°C(122°F)

Humidity
5% ~ 95% non-condensing

Gross Weight (w/ PSU & Rail)
• kgs : 25
• lbs : 55.1

Package Dimension (W x D x H)
• mm : 600 x 1085 x 208
• inches : 23.6 x 42.7 x 8.2

Cubic Feet
4.8

Container Load Quantity
• 20’ : 198
• 40’ : 418
• 40’ H : 456

Mounting
Standard : 26” tool-less slide rail

* All specifications are subject to change without notice
