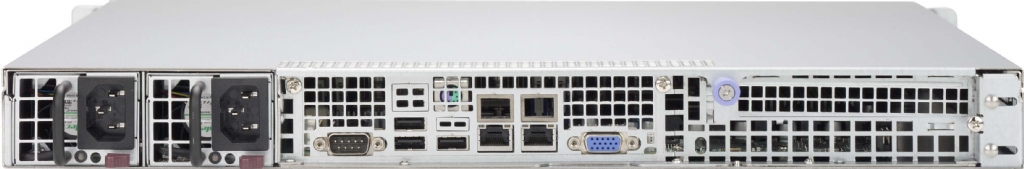

Supermicro CSE-514-R400C

CSE-514-R400C
Supermicro CSE-514-R400C
£390.82
ex. VAT
(£468.98
inc. VAT)
Great news, we have 59 of this product in stock. Available for next working day delivery.

Want it delivered by 3rd Oct 2020? Order within 17 Hours and 26 minutes and get it delivered the next working day as standard.
Quantity


Looking for Compatible Products?

Next working day delivery countdown

Hour

Min

Sec


Order this product before 4.30pm today and get it delivered for FREE* on 3rd Oct 2020.

* FREE Delivery on all orders over £100.00 to UK Mainland Only. Normal shipping charges apply outside UK Mainland.

Product SKUs
CSE-514-R400C
  • SuperChassis 514-R400C

Form Factor
  • Support STD MB, size up to E. ATX 12" x 13".

Processor Support
  • Dual and Single Intel® and AMD processors

Dimensions
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 16.9" (429 mm)
Gross Weight
  • 18 lbs (8.16 kg)
Packaging (W x H x L)
  • 27" (686 mm) x 8" (203 mm) x 24" (610 mm)
Available Color
  • No Paint

Expansion Slots
  • Up to
  • 1 full height expansion slot(s)

Drive Bays
  • Upto 2 x 2.5" fixed with bracket
  • SAS or enterprise SATA HDD only recommended

Front Panel
Buttons
  • Power On/Off button
  • System Reset Button
LEDs
  • 2 Network Activity LEDs
  • Fan Fail/System Over Heat LED
  • HDD activity LED
  • Power Status LED
Motherboard (for CSE- 514-R400C)
X10DRL-i X10DRL-CT
X10DRD-iNTP X10DRD-iTP
X10DRD-LTP X10DRL-iT
X10DRL-C X10DRD-iNT
X10DRD-iT X10DRD-i
X10DRD-LT X10DRD-L
X11SSZ-TLN4F X11SSZ-F
X11SSZ-QF X10SRM-TF
X10SRM-F X11SSW-4TF
X11SSW-TF X9DRD-iF
X9DRD-LF


Servers (for CSE- 514-R400C)
6018R-MDR


Systems Cooling
Fans
  • 4 x 40x56mm PWM fan(s)
  • Optional 2 x fans for AOC cooling

Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply
1U 400W Redundant single output power supply, W/PMbus, gold level
Power Efficiency
  • 92%
Total Output Power and Input
  • 400W with Input 100 - 240Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 220 x 54.5 x 40 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 33A / Min: 0.5A (100Vac - 240Vac)
+5Vsb
  • Max: 3A / Min: 0A
Power Distributor
  • PDB-PT514-2824
  • O/P: 12V/54A
  • +5V Max: 25A
  • +3.3V Max: 25A
  • -12V Max: 0.6A
Certification
  • Gold Certified  Gold Certified

Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class A
  • TUV/CB
  • UL/CUL
Standard Parts List
  Part Number Qty Description
Cable(S) CBL-0156L 1 CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,40CM,28AWG
Cable(S) CBL-0260L 2 US power cord 18AWG 6ft, PBF (default for low watt)
Fan(s) FAN-0156L4 4 40x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH
Front Panel MCP-280-51201-0N 1 Front control board (FP512) for SC512 (surface-mounted LED)
Cooling Fan & Accessory MCP-320-81801-0B 3 SC818G 2x 4056 fan tray,HF,RoHS,PBF
Cooling Fan & Accessory MCP-340-00035-0B 2 Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
Drive Tray(s) MCP-220-51401-0N 1 Dual 2.5 HDD bracket (Not follow std 2.5" HDD screw holes)
Power Distributor PDB-PT514-2824 1 1U redundant power distributor board for SC514, SC113 etc., (rename from PDB-PT514-1824),RoHS/REACH
Part(s) MCP-260-00078-0N 1 1U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF
Power Supply & Accessory PWS-406P-1R 2 1U 400W Redundant Short Depth Power Supply
Mounting Rail(s) MCP-290-00102-0N 1set Outer rail, quick-release type, 25.6
Mounting Rail(s) MCP-290-00108-0N 1set Inner rail, front, short, quick-release type
Rear Window MCP-240-00086-0N 1 STD rear window for SC113 redundant PWS

Optional Parts List
  Part Number Qty Description
Rail MCP-290-00056-0N - Quick-release outer rail for square hole short-depth rack (19"~26.4")
Chassis parts MCP-120-00078-0N - Optional shorter 1U riser card bracekt for X9DRL-7F/EF
Fan Kit CBL-0296L - 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
Fan Kit FAN-0147L4 - 40x40x28 mm, 17.5K RPM, SC813MTS Middle Cooling Fan,RoHS/REACH,PBF
Fan Kit MCP-320-00031-0B - Fan tray for six 40x28 fans(SC813M/113M)
Fan Kit MCP-340-00001-01 - Dummy fan 40x28mm
