Supermicro SuperChassis 504-203B (Black)

CSE-504-203B
Supermicro SuperChassis 504-203B (Black)
£106.56
ex. VAT
(£127.87
inc. VAT)
This product is ordered upon request on a 3 - 5 Days lead-time.
Quantity


Email me when in stock
Looking for Compatible Products?

Frequently bought together

Supermicro Certified MEM-DR480L-CL01-ER21 Micron Memory - 8GB DDR4-2133 1Rx4 ECC REG RoHS
Supermicro 1U 16x PCIe Riser Card
Supermicro 1U 16x PCIe Riser Card
£18.75 ex VAT
(£22.50 inc VAT)
Supermicro MCP-220-00044-0N Mounting Bracket
Supermicro MCP-220-00044-0N Mounting Bracket
£5.99 ex VAT
(£7.19 inc VAT)
Supermicro MCP-220-00051-0N Mounting Bracket
Supermicro MCP-220-00051-0N Mounting Bracket
£6.68 ex VAT
(£8.01 inc VAT)



Product SKUs
CSE-504-203B
  • SuperChassis 504-203B (Black)

Form Factor
9.8"-Depth Mini 1U chassis support for maximum motherboard size - 6.7" x 6.7"

Processor Support
Single Processor Support

Dimensions
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm) <<< Release form has 17.3"
Depth
  • 9.8" (249mm)
Packaging
  • 25.8" (W) x 6.1" (H) x 18.3" (L)
Gross Weight
  • 10 lbs (4.5kg)
Available Colors
  • Black

Expansion Slots
• Up to 1x full-height, half-length PCI expansions slot*
*NOTE: Riser Card Required, See 'Drive Bays' for possible configurations

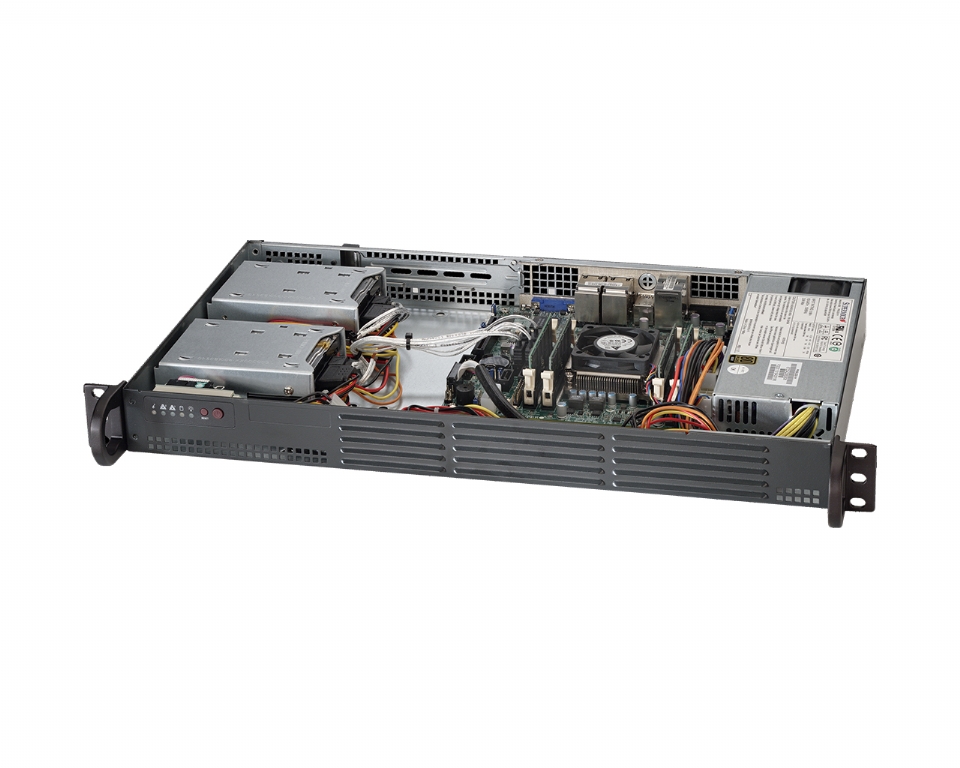

Drive Bays
Internal Bay
  • 1x 3.5" Internal Drive Bay with 1x Half-height, Half-length PCI
  • OR 2x 3.5" Internal Drive Bay
  • OR 2x 2.5" Internal Drive Bay with 1x Full-height, Half-length PCI
  • OR 4x 2.5" Internal Drive Bay
  • Only SAS or enterprise SATA HDD recommended

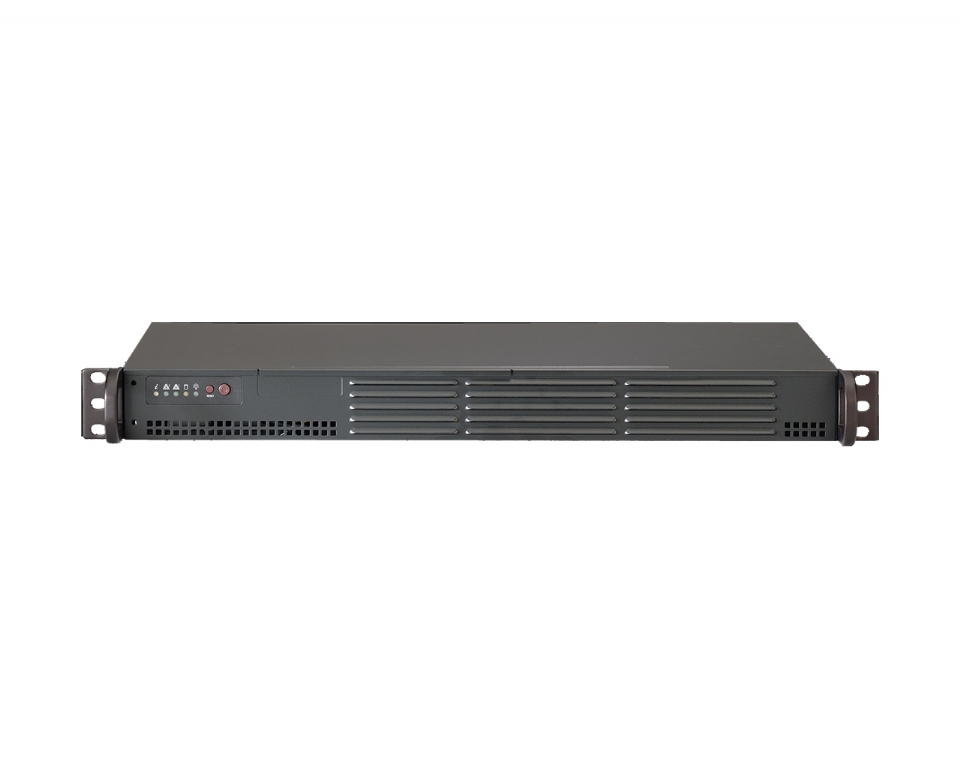

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED
I/O Ports
  • Standard System I/O
    (Mouse, Keyboard, 2x USB Video, COM, LPT, LAN)

Operating Environment (System)
Operating Temperature Range
  • 5°C ~ 35°C (41°F ~ 95°F)
Non-Operating Temperature Range
  • -40°C ~ 60°C (-40°F ~ 140°F)
Operating Relative Humidity Range
  • 8% ~ 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply
200W Low Noise AC-DC power supply with PFC
AC Voltage
  • 100 - 240V, 50-60Hz, 2.6 Amp Max
+5V
  • 8.0 Amp (max.)
+5V standby
  • 2.0 Amp (max.)
+12V
  • 16 Amp (max.)
-12V
  • 0.5 Amp (max.)
+3.3V
  • 8.0 Amp (max.)
Certification Gold Level Certified
  Gold Certified


Regulatory (Power Supply)
Power Supply Safety / EMC
  • USA - UL listed, FCC
  • Canada - CUL listed
  • CCC Certification
  • EN 60950/IEC 60950-Compliant
  • Europe/CE Mark
  • Germany - TUV Certified
Standard Parts List
  Part Number Qty Description
Chassis CSE-504-203B 1 1U Chassis (Black)
Cable(s) CBL-0260L

CBL-0235L
1

1
US power cord 18AWG 6ft, PBF (default for low watt)

77.5cm, 16-pin to 16-pin Front Cable
Front Panel MCP-280-81301-0N 1 Front Panel Control Board
Power Supply PWS-203-1H 1 200W Low Noise Power Supply
Optional Parts List
  Part Number Qty Description
Cable(s) CBL-0080L - 1x 4-pin to 1x SATA Power Cable
Fan(s) FAN-0100L4 - 40X28MM 4-PIN PWM FAN, 8500 rpm
MCP-320-81302-0B                 - Single fan holder for one 40x28mm fan
(*Note: May order two MCP-320-81302-0B to configure a dual fan holder for optional dual fan configuration)



Hard Drive Bracket MCP-220-00051-0N

MCP-220-00044-0N
-

-
Retention Bracket for 1 x 2.5" HDD

Retention Bracket for up to 2x 2.5" HDD



Key Features



1. Mini 1U Chassis



2. 200W High-efficiency Power Supply
    Gold Level Certified

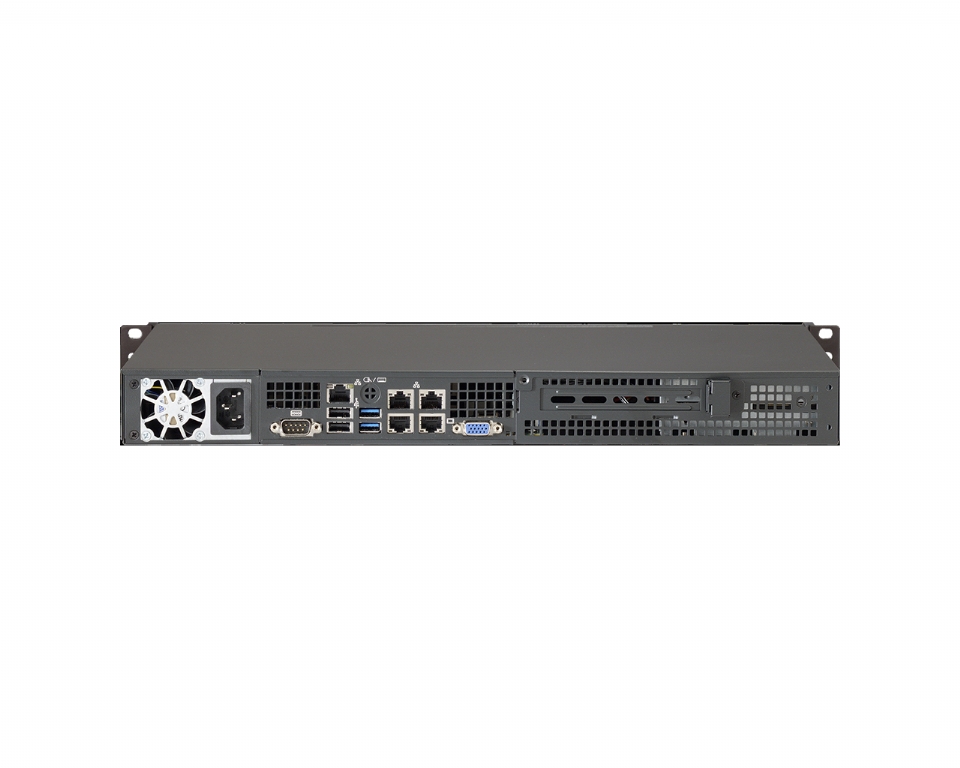

3. Rear I/O Ports



4. 1x 3.5" Internal Drive Bay with 1x
    Half-height, Half-length PCI



5.OR 2x 3.5" Internal Drive Bay



6. OR 2x 2.5" Internal Drive Bay with
    1x Full-height, Half-length PCI



7.OR 4x 2.5" Internal Drive Bay



8. Power Switch, Reset Button and 5 LED Indicators
