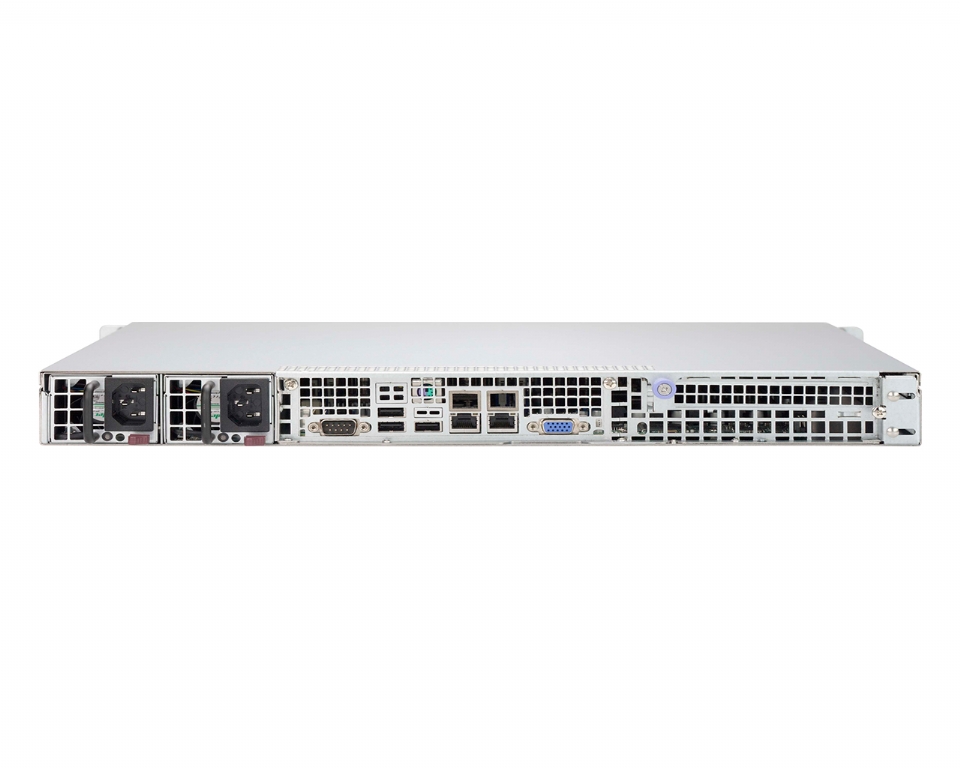

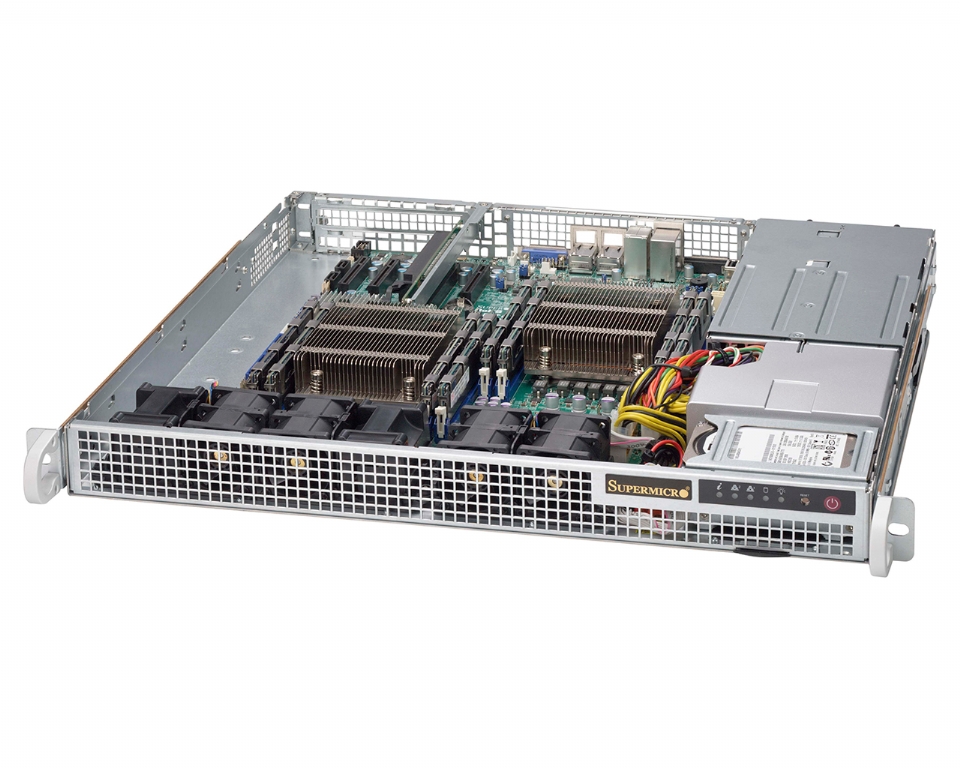

Supermicro SuperChassis 514-R407C 1U Short Depth Chassis with Dual 400W Redundant PSU

Supermicro SuperChassis 514-R407C 1U Short Depth Chassis with Dual 400W Redundant PSU
ex. VAT
inc. VAT)

Hurry, only 1 left in stock

Great news, we have 1 of this product in stock. Available for next working day delivery.

Want it delivered by 28th Sep 2021? Order within 23 Hours and 26 minutes and get it delivered the next working day as standard.
Looking for Compatible Products?

Next working day delivery countdown


Order this product before 4.30pm today and get it delivered for FREE* on 28th Sep 2021.

* FREE Delivery on all orders over £100.00 to UK Mainland Only. Normal shipping charges apply outside UK Mainland.

Frequently bought together

2U Short ATX Chassis - Low Profile PCI Card Support
2U Short ATX Chassis - Low Profile PCI Card Support
£47.99 ex VAT
(£57.59 inc VAT)
Seasonic SS-400ES-F3 400W Industrial Server Power Supply - 80 plus Bronze PFC with Single 8cm Fan
Supermicro 1U 16x PCIe Riser Card
Supermicro 1U 16x PCIe Riser Card
£20.28 ex VAT
(£24.34 inc VAT)
Supermicro I/O shield for X11SSZ with EMI Gasket
Supermicro I/O shield for X11SSZ with EMI Gasket
£6.69 ex VAT
(£8.03 inc VAT)
Product SKUs
  • SuperChassis 514-R407C
Form Factor
  • Support STD MB, size up to E. ATX 12" x 13".
Processor Support
  • Dual and Single Intel® and AMD processors
  • 1.7" (43 mm)
  • 17.2" (437 mm)
  • 16.9" (429 mm)
Gross Weight
  • 25.2 lbs (11.43 kg)
Packaging (W x H x L)
  • 27" (686 mm) x 8" (203 mm) x 24" (610 mm)
Available Color
  • No Paint
Expansion Slots
  • 1 full height expansion slot(s)
Drive Bays
  • 2 x 2.5" fixed with bracket
  • SAS or enterprise SATA HDD only recommended
Front Panel
  • Power On/Off button
  • System Reset Button
  • 2 Network Activity LEDs
  • Fan Fail/System Over Heat LED
  • HDD activity LED
  • Power Status LED
Systems Cooling
  • 4 x 40x56mm PWM fan(s)
  • Optional 2 x fans for AOC cooling
Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Power Supply
1U 400W Redundant Power Supply Platinum with PMBUS, W54.5xL220xH40mm
Power Efficiency
  • 94%
Total Output Power and Input
  • 400W with Input 100 - 240Vac
  • 400W with Input 200 - 240Vdc
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 220 x 54.5 x 40.25 mm
Output Type
  • Backplanes (gold finger)
  • Max: 33A (100Vac - 240Vac)
  • Max: 3A / Min: 0A
Power Distributor
  • PDB-PT514-2824
  • O/P: 12V/54A
  • +5V Max: 25A
  • +3.3V Max: 25A
  • -12V Max: 0.6A
  • Platinum Certified  Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class A
  • UL/CB
  • UL/CUL
Standard Parts List
  Part Number Qty Description
Cable(S) CBL-0260L 2 US power cord 18AWG 6ft, PBF (default for low watt)
Fan(s) FAN-0156L4 4 40x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH
Front Panel MCP-280-51201-0N 1 Front control board (FP512) for SC512 (surface-mounted LED)
Cooling Fan & Accessory MCP-320-81801-0B 3 SC818G 2x 4056 fan tray,HF,RoHS,PBF
Cooling Fan & Accessory MCP-340-00035-0B 2 Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
Drive Tray(s) MCP-220-51401-0N 1 Dual 2.5 HDD bracket (bracket base not follow std 2.5" HDD screw holes)
Power Distributor PDB-PT514-2824 1 1U redundant power distributor board for SC514, SC113 etc., (rename from PDB-PT514-1824),RoHS/REACH
Part(s) MCP-260-00078-0N 1 1U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF
Power Supply & Accessory PWS-407P-1R 2 AC and DC 240V Input, 400W, Platinum Level, Redundancy power supply meet PMBus Revision 1.2 requirement,RoHS/REACH
Mounting Rail(s) MCP-290-00102-0N 1set Outer rail, quick-release type, 25.6" to 33.05"
Mounting Rail(s) MCP-290-00108-0N 1set Inner rail, front, short, quick-release type
Rear Window MCP-240-00086-0N 1 STD rear window for SC113 redundant PWS
