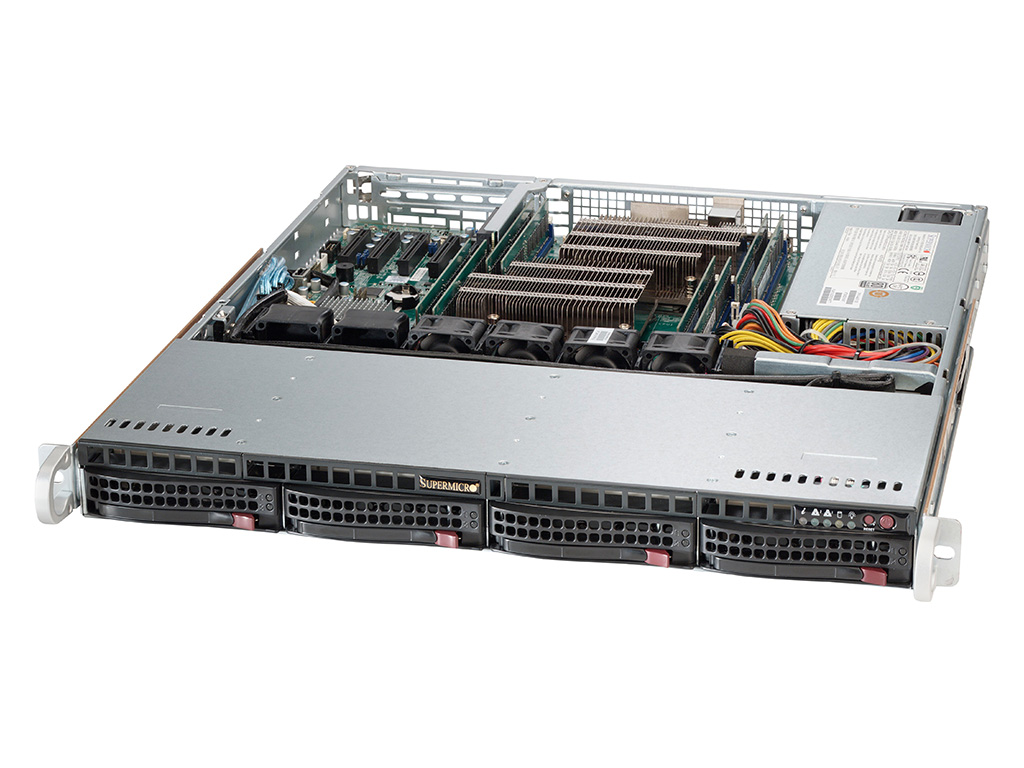

Supermicro SuperChassis 813MFTQC-505CB

Supermicro SuperChassis 813MFTQC-505CB
ex. VAT
inc. VAT)

Hurry, only 1 left in stock

Great news, we have 1 of this product in stock. Available for next working day delivery.

Want it delivered by 8th Jul 2022? Order within 4 Hours and 58 minutes and get it delivered the next working day as standard.
Looking for Compatible Products?

Next working day delivery countdown


Order this product before 4.30pm today and get it delivered for FREE* on 8th Jul 2022.

* FREE Delivery on all orders over £100.00 to UK Mainland Only. Normal shipping charges apply outside UK Mainland.

Product SKUs
  • SuperChassis 813MFTQC-505CB
Form Factor
  • 1U Chassis for motherboard support size: (12" x 10") (9.6" x 9.6")
Processor Support
  • Dual, single Intel® / AMD processors
  • 1.7" (43 mm)
  • 17.2" (437 mm)
  • 19.85" (503 mm)
Net Weight
  • N/A lbs (N/A kg)
Gross Weight
  • 31 lbs (14.06 kg)
Packaging (W x H x L)
  • 23.4" (594 mm) x 8.5" (216 mm) x 29.7" (754 mm)
Available Color
  • Black
Expansion Slots
  • 1 full height expansion slot(s)
Drive Bays
  • 4 x 3.5" hot-swap SAS/SATA drive bay with SES2
  • 1U 4-Port 12Gbps Backplane Support 4x3.5
Peripheral Drives
  • Optional 1 x Slim DVD-ROM Drive

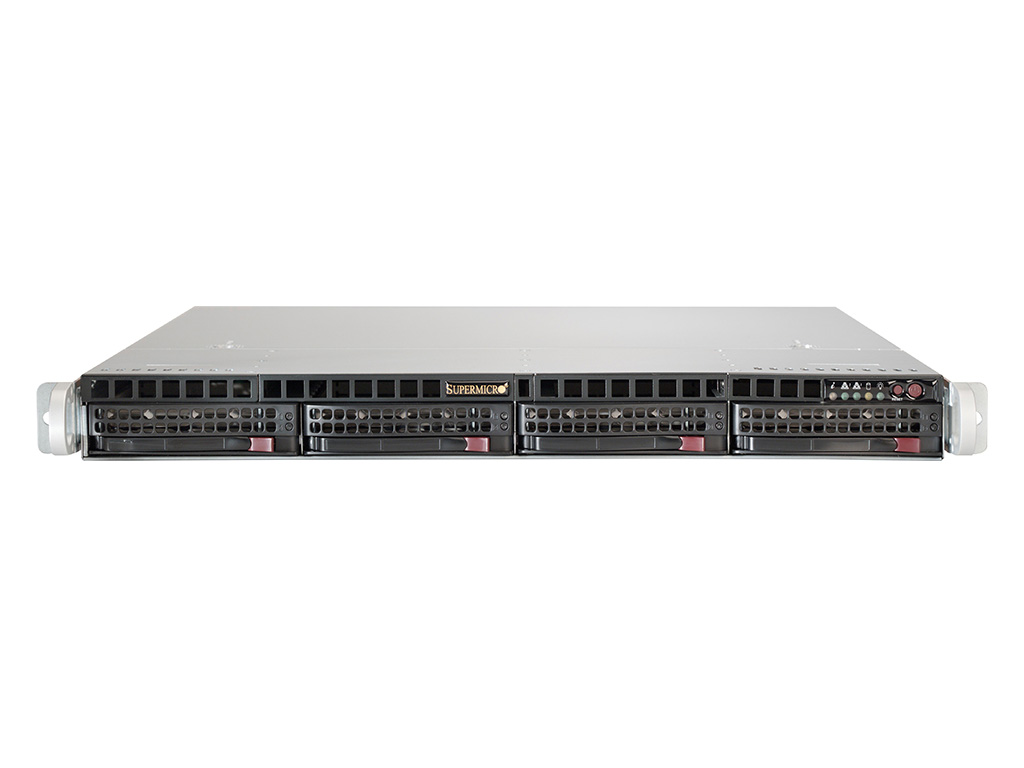

Front Panel
  • Power On/Off button
  • System Reset Button
  • 2 Network Activity LEDs
  • HDD activity LED
  • Power Status LED
  • System Information LED
Systems Cooling
  • 4 x 40x28mm PWM fan(s)
  • Optional 2 x 40x28mm PWM fan(s)
Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Power Supply
1U 500W Multi-output power supply w/ PMbus, 80Plus Platinum
Power Efficiency
  • 93%
Total Output Power and Input
  • 500W with Input 100 - 240Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 180 x 100 x 40 mm
Output Type
  • 24pin ATX
  • Max: 0.2A / Min: 0A
  • Max: 41A / Min: 0.5A (100Vac - 240Vac)
  • Max: 15A / Min: 0.2A
  • Max: 12A / Min: 0.2A
  • Max: 3A / Min: 0A
  • Platinum Certified  Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class A
  • UL/CB
  • UL/CUL
Standard Parts List
  Part Number Qty Description
HD Backplane BPN-SAS3-815TQ 1 1U 4-Port 12Gbps Backplane Support 4x3.5
Cable(s) CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
Cable(s) CBL-PWCD-0160-IS 1 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
Part(s) MCP-120-00078-0N 1 Optional shorter 1U riser card bracket for X9DRL-7F/EF and beyond
Part(s) MCP-230-00047-0N 1 Top cover with mylar for SC813M (single PWS),RoHS/REACH
Part(s) MCP-270-81304-0N 1 Chassis base for SC813M, Single PWS
Part(s) MCP-290-00088-0N 1 SC119 Intrusion assembly
CD-ROM & Accessory CSE-PT93L-B 1 Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS
Fan(s) FAN-0154L4 4 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
Front Panel FPB-FP813-D 1 Front control board dual color for SC815,SC813M (C)
Cooling Fan & Accessory MCP-320-00031-0B 1 Fan tray for six 40x28 fans(SC813M/113M)
Drive Tray(s) MCP-220-00075-0B 4 Black gen 5.5 hot-swap 3.5" HDD tray
Part(s) MCP-260-00078-0N 1 1U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF
Part(s) MCP-340-00001-01 2 Dummy fan 40x28mm
Power Supply & Accessory PWS-505P-1H 1 1U 500W Multi-output, Platinum level w/ PMbus 24pin, W100xL180xH40mm,RoHS/REACH
Mounting Rail(s) MCP-290-00102-0N 1set Outer rail, quick-release type, 25.6" to 33.05"
Mounting Rail(s) MCP-290-00108-0N 1set Inner rail, front, short, quick-release type
Mounting Rail(s) MCP-290-00110-0N 1set Inner rail, extension (quick) for 1U 17.2
