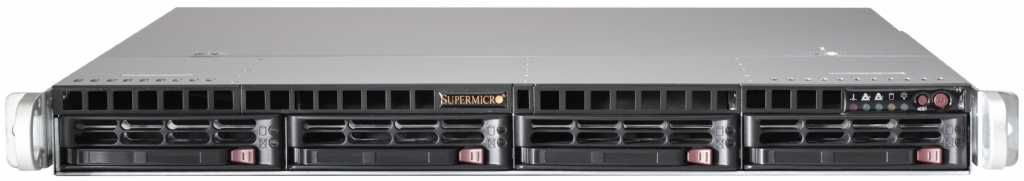

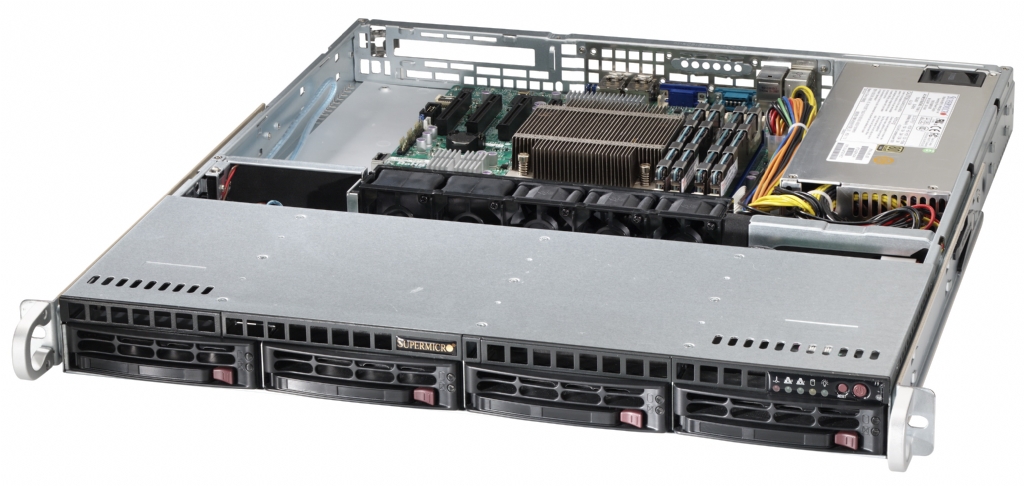

Supermicro SuperChassis 813MT-300CB (Black)

CSE-813MT-300CB
Supermicro SuperChassis 813MT-300CB (Black)
£227.92
ex. VAT
(£273.51
inc. VAT)
This product is currently out of stock. We are expecting stock in Ordered On Request
Quantity


Email me when in stock
Looking for Compatible Products?

Frequently bought together

Supermicro A1SAI-2550F
Supermicro A1SAI-2550F
£225.80 ex VAT
(£270.96 inc VAT)
Zippy 2U 650W Industry single PSU 80+ Gold (P2G-5650G)
Zippy 2U 650W Industry single PSU 80+ Gold (P2G-5650G)
£142.80 ex VAT
(£171.36 inc VAT)
Supermicro SuperChassis 825TQ-563LPB (Black)
Supermicro SuperChassis 825TQ-563LPB (Black)
£376.25 ex VAT
(£451.50 inc VAT)

Product SKUs
CSE-813MT-300C
  • SuperChassis 813MT-300C (Beige)
CSE-813MT-300CB
  • SuperChassis 813MT-300CB (Black)

Form Factor
1U chassis support for max. motherboard size - 12" x 10" ATX

Processor Support
Supports single Intel® processor
Dimensions
Height 1.7" (43mm)
Width 17.2" (437mm)
Depth 19.8" (503mm)
Gross Weight 31 lbs (14.1kg)
Available Colors Beige, Black
Expansion Slots
• 1x full-height, half-length PCI expansion slot (Riser Card Required)
Drive Bays
Hot-swap 4x 3.5" Hot-swap SAS / SATA drive bays
SAS or enterprise SATA HDD only recommended
SATA Backplane
1x SATA Backplane
Peripheral Drives
DVD-ROM Slim DVD-ROM drive (Optional)
Front Panel
Buttons • Power On/Off button
• System Reset button
LEDs • Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED
Ports • 2x Front USB Ports
• 1x Serial COM Port
System Cooling
Fans 3x 4cm 12,500 RPM PWM blower fans

Operating Environment (System)
Operating Temperature Range
  • 5°C ~ 35°C (41°F ~ 95°F)
Non-Operating Temperature Range
  • -40°C ~ 60°C (-40°F ~ 140°F)
Operating Relative Humidity Range
  • 8% ~ 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply
Fixed 300W AC power supply module with PFC
[ 24-pin, (4-pin=12V), 4-pin HDD ]
AC Voltage
  • 100 - 240V, 60-50Hz, 5 Amp
DC Output
  • 5V + 3.3V ≤ 100W
+5V
  • 25 Amp
+5V standby
  • 2.0 Amp
+12V
  • 24.0 Amp (Max)
-12V
  • 1.0 Amp
+3.3V
  • 15.0 Amp
Regulatory (Power Supply)
Power Supply Safety / EMC • USA - UL listed, FCC
• Canada - CUL listed
• Europe/CE Mark
• EN 60950/IEC 60950-Compliant
Standard Parts List
  Part Number Qty Description
Chassis CSE-813MT-300C

CSE-813MT-300CB
1

1
1U Chassis (Beige)

1U Chassis (Black)
Power Supply PWS-0054 1 300W 1U Power Supply
Fan(s) FAN-0061L4 3 1U, 40x28mm 4-pin 12,500 RPM High-Performance PWM Fan
I/O MCP-260-00024-0N 1 1U Standard I/O Shield
Mounting Rails CSE-PT52 1 1U Slide Rails
Hard Drive Trays CSE-PT39(B)

BPN-SAS-815T
4

1
Hot-swappable Hard Drive Carriers

4 x 1 SAS/SATA Backplane
Cable(s) CBL-0049L

CBL-0051L

CBL-0061L

CBL-0068
1

1

4

1
Front Panel Ribbon Cable

60cm Round Floppy Cable

SATA Cable

16-pin Front Panel Split Cable
Front Tray CSE-PT40(B) 1 Front USB and COM Port Tray
Optional Parts List
  Part Number Qty Description
Mounting Rails MCP-290-00056-0N

MCP-290-00052-0N-BULK
-

-
19" to 26.4" outer rail, /quick, for 1U 17.2" W chassis

25.6" to 33.05" outer rail, /quick, for 1U 17.2" W chassis (10 sets/pack)
Peripheral Drives DVM-TEAC-824B

DVM-PNSC-824B

DVM-TEAC-DVD-SBT2

DVM-PNSC-DVD-SBT2

CSE-PT92L

MCP-220-81502-ON
-

-

-

-

-

-
Black slim IDE DVD (8x DVD, 24x CDR), TEAC

Black slim IDE DVD (8x DVD, 24x CDR), Panasonic

Black slim SATA DVD (8x DVD, 24x CDR), TEAC

Black slim SATA DVD (8x DVD, 24x CDR), Panasonic

Slim IDE DVD kit (include backplane, cable)

Slim SATA DVD kit (include backplane, cable)
Peripheral Drives FPD-TEAC-S(B)

CSE-PT91L

CSE-PT93L(-B)

CSE-PT94L(-B)
-

-

-

-
TEAC 3.5" 1.44MB Slim Floppy Drive (B = black)

Slim FDD kit

DVD or CD dummy cover (B = black)

FDD or USB tray dummy cover (B = black)
Riser Card(s) CSE-RR32-1U

CSE-RR1U-X
-

-
1U 32-bit Riser Card

1U 64-bit 3.3V PCI-X Riser Card
Heatsink / Retention - - Please refer to our Thermal Components Matrix
Front Bezel
Compatibility Table )
CSE-PTFB-813(B) -

Front Bezel Cover with Key Lock and Filter, Black (B) & Beige
LCD/OLED Solutions - - Please reference the LCD/OLED Display Solutions for details
Adaptor HDD carrier MCP-220-00043-0N - Adaptor HDD carrier to install 2.5" HDD in 3.5" HDD tray
