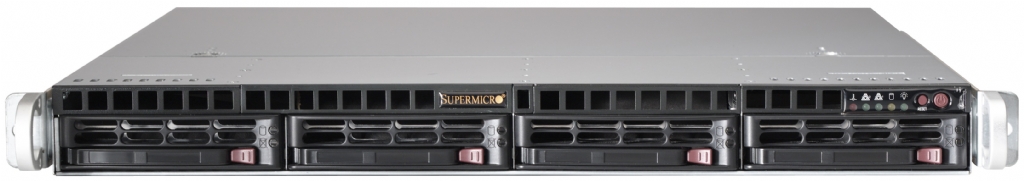

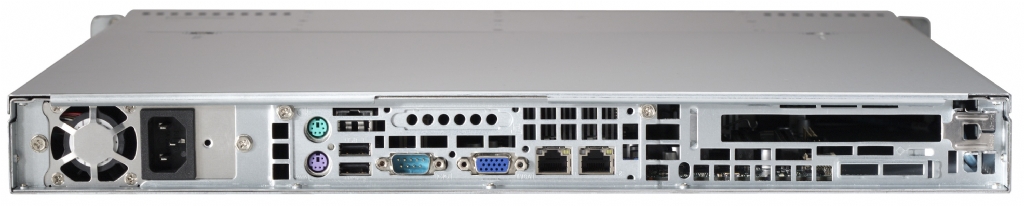

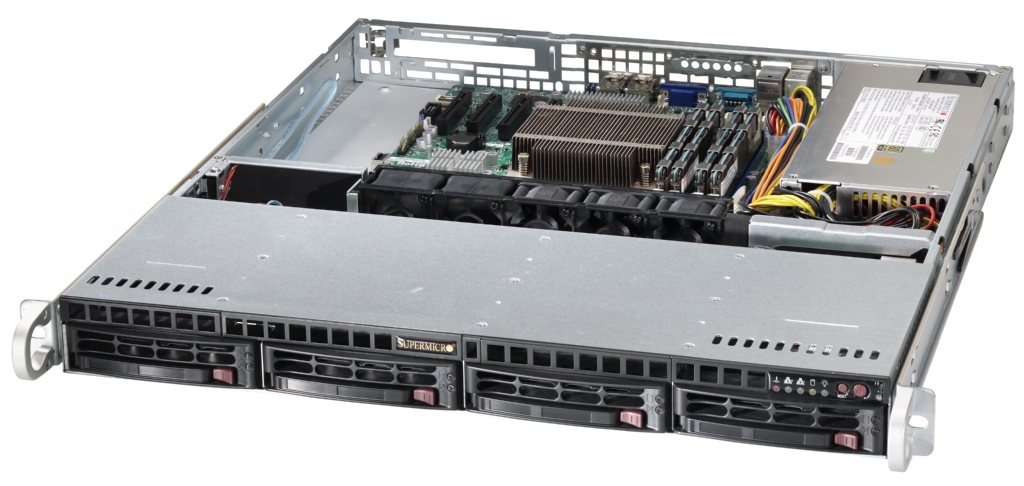

Supermicro SuperChassis 813MT-350CB (Black)

CSE-813MT-350CB

Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.

Looking for Compatible Products?

Frequently bought together

In-Win IW-R300-01N - 3U Feature Rich Short Depth Server Chassis for CCTV Applications

£149.29 ex VAT

(£179.15 inc VAT)

More from this brand

Product Description

Product SKUs

CSE-813MT-350CB	SuperChassis 813MT-350CB (Black)


Form Factor

1U chassis support for max. motherboard size - 12" x 10" ATX


Processor Support

Supports dual, single Intel® / AMD processors


Dimensions

Height	1.7" (43mm)
Width	17.2" (437mm)
Depth	19.8" (503mm)
Packaging	23" (W) x 6.8" (H) x 27.2" (L)
Gross Weight	23.65 lbs (10.7kg)
Available Colors	Black


Expansion Slots

1x full-height, half-length PCI expansion slot (Riser Card Required)


Drive Bays

Hot-swap	4x 3.5" Hot-swap SAS / SATA drive bays SAS or enterprise SATA HDD only recommended


SAS / SATA Backplane

1x SAS / SATA Backplane


Peripheral Drives

DVD-ROM	Slim DVD-ROM drive (Optional)


Front Panel

Buttons	Power On/Off button System Reset button
LEDs	Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED


System Cooling

Fans	3x 4cm 13,000 RPM PWM fans



Operating Environment (System)

Operating Temperature Range	5°C ~ 35°C (41°F ~ 95°F)
Non-Operating Temperature Range	-40°C ~ 60°C (-40°F ~ 140°F)
Operating Relative Humidity Range	8% ~ 90% (non-condensing)
Non-Operating Relative Humidity Range	5% - 95% (non-condensing)


Power Supply

350W AC power supply w/ PFC
AC Voltage	100-240 V, 50-60 Hz, 4.2-1.8 Amp
+5V	18 Amp
+5V standby	3 Amp
+12V	29 Amp
+3.3V	15 Amp
Certification	Gold Certified [ Test Report ]


Regulatory (Power Supply)

Power Supply Safety / EMC	USA - UL listed, FCC Canada - CUL listed Europe/CE Mark EN 60950/IEC 60950-Compliant


Standard Parts List

	Part Number	Qty	Description
Chassis	CSE-813MT-350CB	1	1U Chassis (Black)
Backplane	BPN-SAS-815T-O-P	1	815 SAS BACKPLANE W/O AMI 9071 -O-P
Power Supply	PWS-351-1H	1	1U 350W MULTI OUTPUT 80PLUS GOLD PWS
Cable 1	CBL-0071L	1	ROUND 16 pin TO 16 PIN RIBBON FP CABLE 30
Peripheral Drive	CSE-PT93L-B	1	Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS
Fan	FAN-0065L4	3	4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
Floppy Disk & accessory	CSE-PT94L-B	1	Black FDD or USB tray dummy cover for SC813,813M,815,818 PBF
Fan Holder	MCP-320-00007-01	1	Fan Tray for Five FAN-0061L Fans Inside SC813M
Drive Trays	MCP-220-00093-0B	4	Black 3.5
Part(s)	MCP-260-00024-0N	1	1U I/O shield for X8 server MB (3rd LAN + 4xLAN)
Part(s)	MCP-340-00002-01	2	Dummy Fan for 813M fan holder(MCP-320-00007-01)
Mounting Rails	MCP-290-00102-0N	1set	Outer rail, quick-release type, 25.6\" to 33.05\"
Mounting Rails	MCP-290-00107-0N	1set	Inner rail, front, short, screw type


Optional Parts List

	Part Number	Qty	Description
Heatsink / Retention	-	-	Please refer to our Thermal Components Matrix
Air Shroud	MCP-310-18009-0N MCP-310-18003-0N	- -	Air Shroud for UP (single processor) Intel Foxhollow Air Shroud for DP (dual processor) Intel DP
Mounting Rails	MCP-290-00056-0N MCP-290-00052-0N-BULK	- -	19" to 26.4" outer rail, for 1U 17.2" W chassis 25.6" to 33.05" outer rail, for 1U 17.2" W chassis (10 sets/pack)
Peripheral Drives	DVM-TEAC-824B DVM-PNSC-824B DVM-TEAC-DVD-SBT2 DVM-PNSC-DVD-SBT2 CSE-PT92L MCP-220-81502-0N	- - - - - -	Black slim IDE DVD (8x DVD, 24x CDR), TEAC Black slim IDE DVD (8x DVD, 24x CDR), Panasonic Black slim SATA DVD (8x DVD, 24x CDR), TEAC Black slim SATA DVD (8x DVD, 24x CDR), Panasonic Slim IDE DVD kit Slim SATA DVD kit
Peripheral Drives	FPD-TEAC-S(B) CSE-PT91L CSE-PT94L-B	- - -	TEAC 3.5" 1.44MB Slim Floppy Drive (B = black) Slim FDD kit FDD or USB tray dummy cover (B = black)
Front Bezel ( Compatibility Table )	CSE-PTFB-813LB	-	Front Bezel Cover with Key Lock and Filter, black
LCD/OLED Solutions	-	-	Please reference the LCD/OLED Display Solutions for details
Adaptor HDD carrier	MCP-220-00043-0N	-	Adaptor HDD carrier to install 2.5" HDD in 3.5" HDD tray
