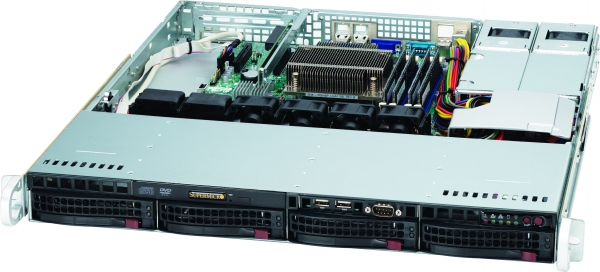

Supermicro SuperChassis 813MTQ-R400CB (Black)

CSE-813MTQ-R400CB

Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.

Looking for Compatible Products?

More from this brand

Product Description

Supermicro SuperChassis 813MTQ-R400CB (Black)

Product SKUs

CSE-813MTQ-R400CB	SuperChassis 813MTQ-R400CB (Black)


Form Factor

1U chassis support for motherboard sizes - uATX 9.6" x 9.6" or ATX 12" x 10"


Processor Support

Supports dual, single Intel® / AMD processors


Dimensions

Height	1.7" (43mm)
Width	17.2" (437mm)
Depth	19.85" (503mm)
Gross Weight	33.5 lbs (15.2kg)
Available Colors	Black


Expansion Slots

1x Full-height AOC expansion slot


Drive Bays

Hot-swap	4x 3.5" Hot-swap SAS2 (6Gb/s) / SATA drive bays SAS or enterprise SATA HDD only recommended


SAS / SATA Backplane

1x SAS / SATA Backplane


Peripheral Drives

DVD-ROM	Slim DVD-ROM drive (opt.)
Others	Front USB/COM access


Front Panel

Buttons	Power On/Off button System Reset button
LEDs	Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED


System Cooling

Fans	4x 4cm 4-pin PWM fans 2x additional fans optional; 6x fans total maximum



Operating Environment (System)

Operating Temperature Range	5°C ~ 35°C (41°F ~ 95°F)
Non-Operating Temperature Range	-40°C ~ 60°C (-40°F ~ 140°F)
Operating Relative Humidity Range	8% ~ 90% (non-condensing)
Non-Operating Relative Humidity Range	5% - 95% (non-condensing)


Power Supply
400W (1+1) Redundant SuperCompact Short-depth AC-DC Gold-level power supply with PMBus and I2C
AC Input	400W: 100-240 V, 50-60 Hz, 6-3 Amp
DC Output +5V standby	3 Amp
DC Output +12V	33 Amp
With Power Distributor	+5V: 25 Amp +3.3V: 25 Amp -12V: 0.6 Amp


Regulatory (Power Supply)

Power Supply Safety / EMC	USA - UL listed, FCC Canada - CUL listed Europe/CE Mark EN 60950/IEC 60950-Compliant
