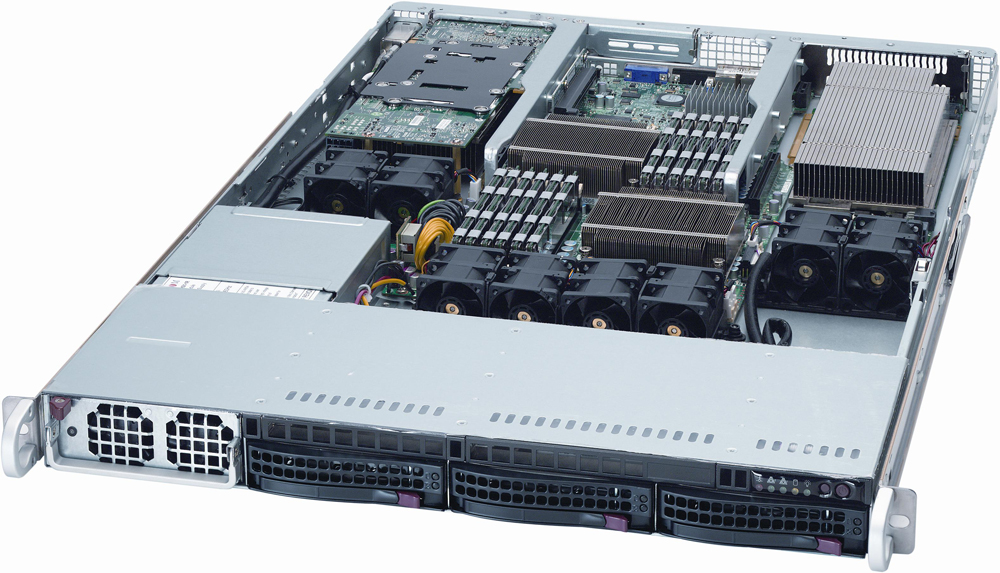

Supermicro SuperChassis 818G-1400B (Black)

CSE-818G-1400B

Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.

Looking for Compatible Products?

More from this brand

Product Description

Product SKUs (*OEM Only)

CSE-818G-1400B	SuperChassis 818G-1400B (Black)


Form Factor

1U chassis optimized for X8DTG-DF and support X8/H8 motherboards (with optional accessory kit)


Processor Support

Supports dual, single Intel® / AMD processors


Dimensions

Height	1.7" (43mm)
Width	17.2" (437mm)
Depth	28.2" (716mm)
Gross Weight	38 lbs (17.2 kg)
Available Color	Black


Expansion Slots

4x Full-height & full-length + 1 Low-profile expansion slots, OR 2x Double-width high end graphics cards (GPU) + 1 Low-profile expansion slot OR 1x Single-width high-end graphics card (with twin motherboards)


Drive Bays

Hot-swap	3x 3.5" Hot-swap SAS/SATA drive bays SAS or enterprise SATA HDD only recommended


Backplane

SAS/SATA HDD Backplane


Peripheral Drives

DVD-ROM	Slim DVD-ROM drive (optional)


Front Panel

Buttons	Power On/Off button System Reset button
LEDs	Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED / Fan fail LED / UID LED


System Cooling

Fans	8x 4cm heavy-duty counter-rotating PWM fans with optimal fan speed control



Operating Environment (System)

Operating Temperature Range	5°C ~ 35°C (41°F ~ 95°F)
Non-Operating Temperature Range	-40°C ~ 60°C (-40°F ~ 140°F)
Operating Relative Humidity Range	8% ~ 90% (non-condensing)
Non-Operating Relative Humidity Range	5% - 95% (non-condensing)


Power Supply

1400W high-efficiency power supply with PMBus
AC Input	1200W: 100 - 140V, 50 - 60Hz, 10.5 - 14.7 Amp 1400W: 180 - 240V, 50 - 60Hz, 7.2 - 9.5 Amp
DC Output +5V standby	4 Amp
DC Output +12V	100 Amp @ 100-140V 117 Amp @ 180-240V
With Power Distributor	+5V: 14 Amp
Certification	Gold Certified [ Test Report ]


Regulatory (Power Supply)

Power Supply Safety / EMC	USA - UL listed, FCC Canada - CUL listed Europe/CE Mark EN 60950/IEC 60950-Compliant Germany - TUV Certified


For X8DTG-DF MB riser selections

Left riser	Low profile riser	Right riser
RSC-R1UG-E16 (for double width GPU cards)	RSC-R1UG-UR (for Supermicro LP UIO cards)	RSC-R1UG-E16R (for double width GPU cards)
RSC-R1UG-2E8G (for two x8 cards)	RSC-R1U-E16R (for regular LP cards)	RSC-R1UG-2E8GR (for two x8 cards)


Standard Parts List

	Part Number	Qty	Description
Chassis	CSE-818G-1400B	1	SC818G-1400B 1U Chassis (black)
Backplane	BPN-SAS-818TQ	1	Sup 3X SAS/SATA hdd; SATA con
Power Supply	PWS-1K41F-1R	1	1400W 1U GOLD LEVEL PWS W/ PM BUS & WX106MM
Power Distributor	PDB-PT818-S2068	1	POWER DISTRIBUTOR FOR SC818 GPU CHASSIS
Air Shroud	MCP-310-81802-0B	1	SC818G air shroud for X8DTG-DF
Cable 1	CBL-0087	1	Front Control Cable Round 16 pin to 16 pin Ribbon 20\" (50cm), 28AWG
Fan 1	FAN-0141L4	8	40x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan
Front Panel	MCP-280-00020-0N	1	Front control board (FP813 dual color) for SC808,818G
Fan Holder	MCP-320-81801-0B	4	SC818G 2x 4056 fan tray,HF,RoHS,PBF
Drive Tray(s)	MCP-220-00075-0B	3	Black gen 5.5 hot-swap 3.5\" HDD tray
Drive Tray(s)	MCP-220-83601-0B	1	Black FDD dummy tray support 1x 2.5
Part(s)	MCP-240-00132-0N	1
Mounting Rails	MCP-290-00054-0N	1	Rail set, quick/quick, optional for 1U 17.2
Rear Window	MCP-240-81802-0N	1	Rear window for SC818G


Optional Parts List

	Part Number	Qty	Description
Mounting Rails	CSE-PT51L	-	1U Chassis Mounting Rails and Kit
Mounting Rails	MCP-290-00016-0N	-	1U open rack bracket set
Peripheral Drives	DVM-TEAC-824B DVM-PNSC-824B DVM-TEAC-DVD-SBT2 DVM-PNSC-DVD-SBT2 CSE-PT92L MCP-220-81502-ON	- - - - - -	Black slim IDE DVD (8x DVD, 24x CDR), TEAC Black slim IDE DVD (8x DVD, 24x CDR), Panasonic Black slim SATA DVD (8x DVD, 24x CDR), TEAC Black slim SATA DVD (8x DVD, 24x CDR), Panasonic Slim IDE DVD kit (include backplane, cable) Slim SATA DVD kit (include backplane, cable)
Riser Card	RSC-R1UT-E16	-	Riser card for twin motherboard
SATA DVD kit	MCP-220-81502-0N	-	Slim SATA DVD kit (including cable, backplane)
Twin Motherboard Kit	MCP-310-81803-0B MCP-240-81805-0N	- -	SC818G air shroud for twin motherboards SC818 left riser card bracket for twin motherboards
Tray	CSE-PT40L-B0 MCP-290-00036-0B	- -	Black FDD size USB/COM tray Black DVD dummy tray supporting one internal 2.5" HDD
LCD/OLED Solutions	-	-	Please reference the LCD/OLED Display Solutions for details
Adaptor HDD carrier	MCP-220-00043-0N	-	Adaptor HDD carrier to install 2.5" HDD in 3.5" HDD tray

* For OEMs Only - Minimum quantity required. Please contact your Supermicro Sales representative for additional details.
