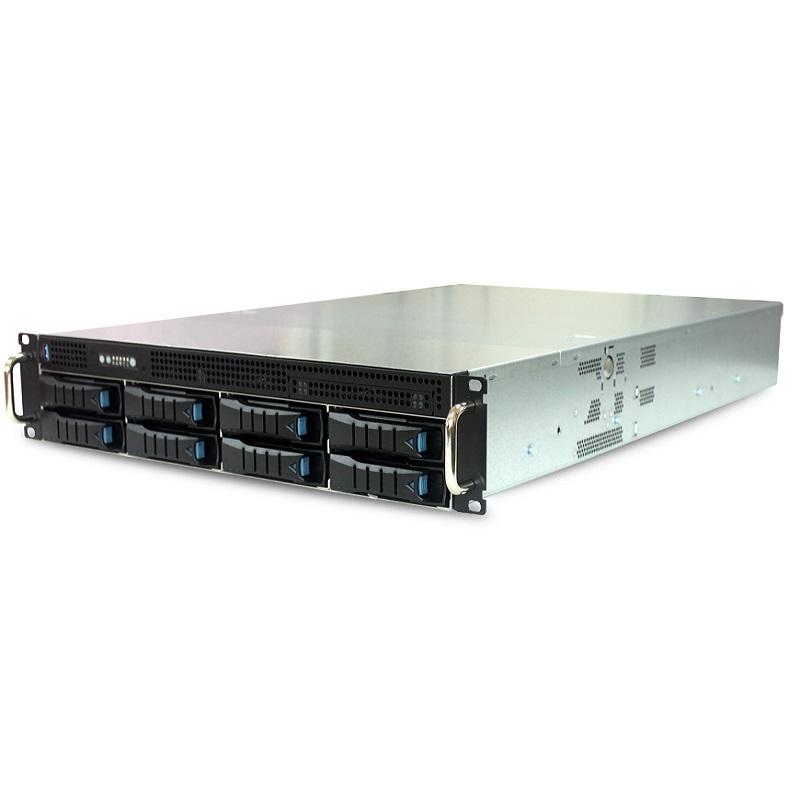

2U 12G Storage Server Chassis 8 x 3.5" Hot-Swap + 2 x 2.5" Internal with 550W x2 Redundant PSU (Rails Included) *7 x Low Profile

Dimensions (W x D x H) (with chassis ears)
• mm : 430 x 680 x 88
• inches : 17 x 26.8 x 3.5

Industry Standard
EIA-RS310D

Material
Heavy-duty preplated SGCC cold-rolled steel

Color
Front Panel : Black

Cooling
Middle : 3 x 80x38mm PWM & low-power consumption hot swap fans

Power Supply
550W 1+1 redundant PSU PMBus 1.2 80+ Platinum

Expansion Slots
7 x low profile

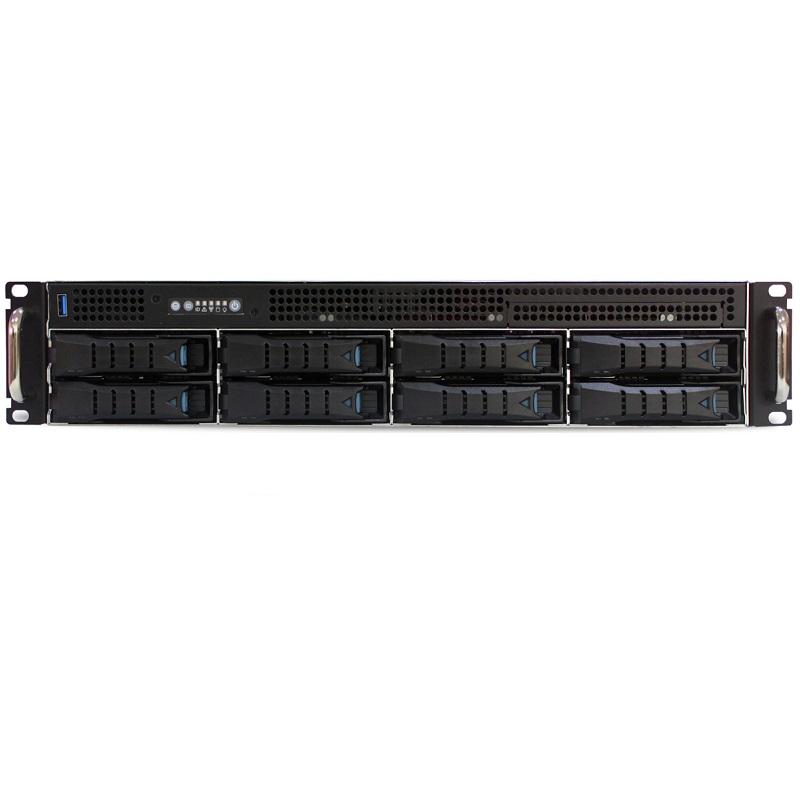

Front Panel
• Power on/off
• System reset
• 1 x USB 3.0 port

LED Indicators
• Power
• LAN
• Drive
• Alert

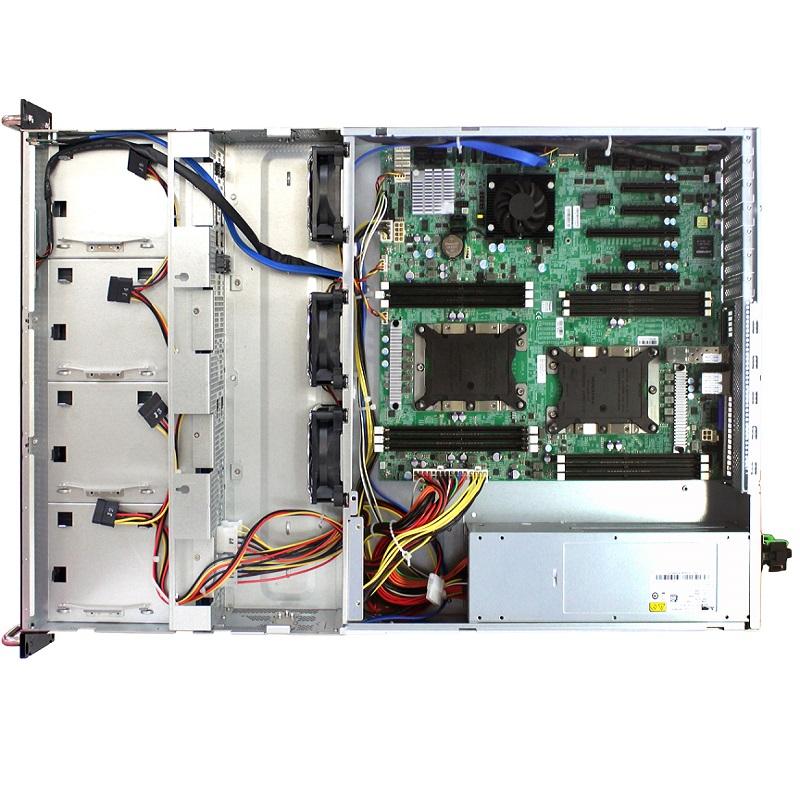

System Board
12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB

Drive Bays
• External : 8 x 3.5” hot swap
• Internal : 2 x internal and 1 x Slim Optical

Backplane
2 x 4-port 12Gb SATA/SAS backplanes with SFF-8643 connector

Storage Temperature
0°C(32°F) ~ 50°C(122°F)

Humidity
5% ~ 95% non-condensing

Gross Weight (w/ PSU & Rail)
• kgs : 20.5
• lbs : 45

Package Dimension (W x D x H)
• mm: 577 x 835 x 234
• inches: 22.7 x 32.8 x 9.2

Cubic Feet
3.88

Container Load Quantity
• 20’: 200
• 40’: 460
• 40’ H: 506

Mounting
Standard : 28” tool-less slide rail
