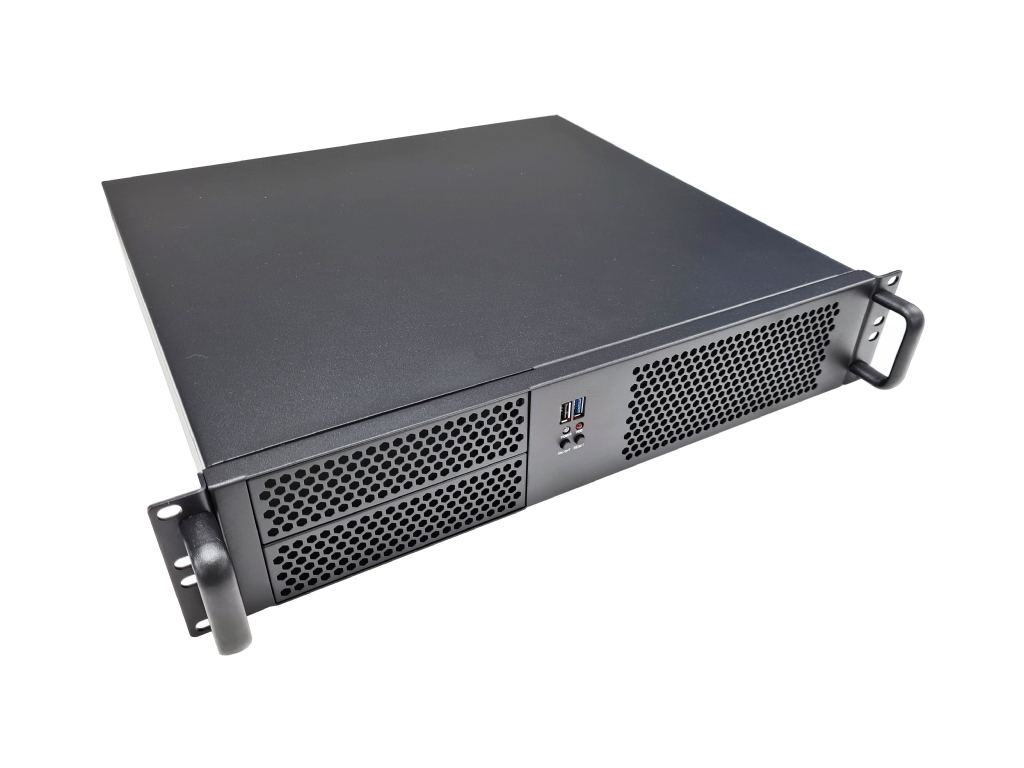

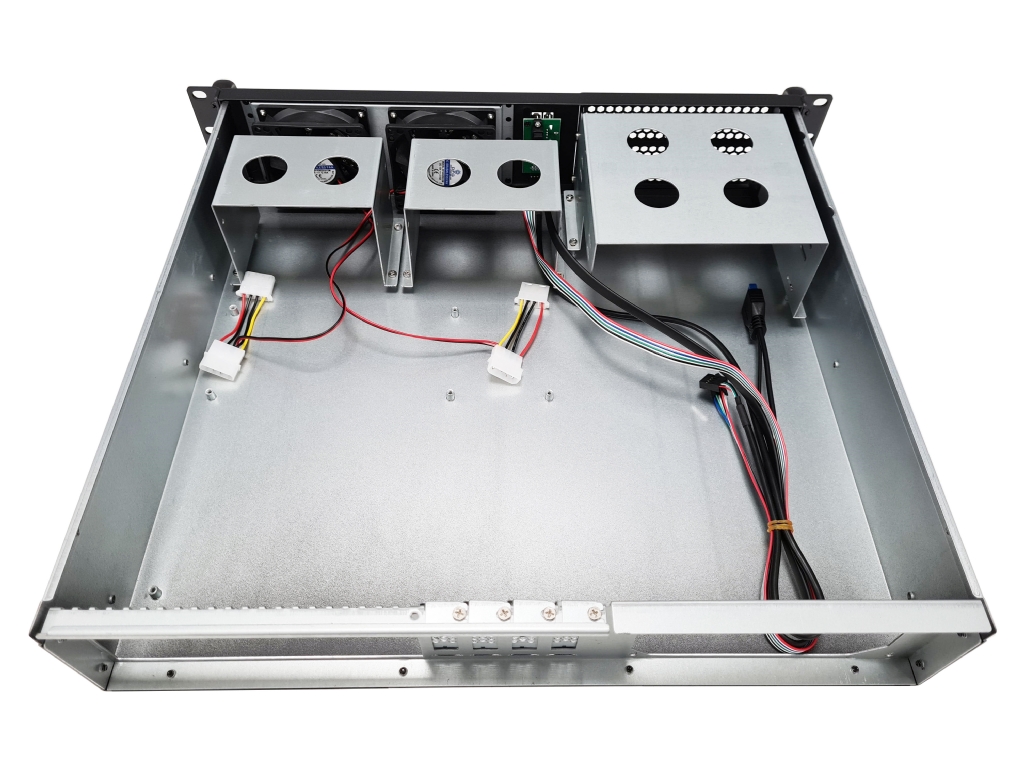

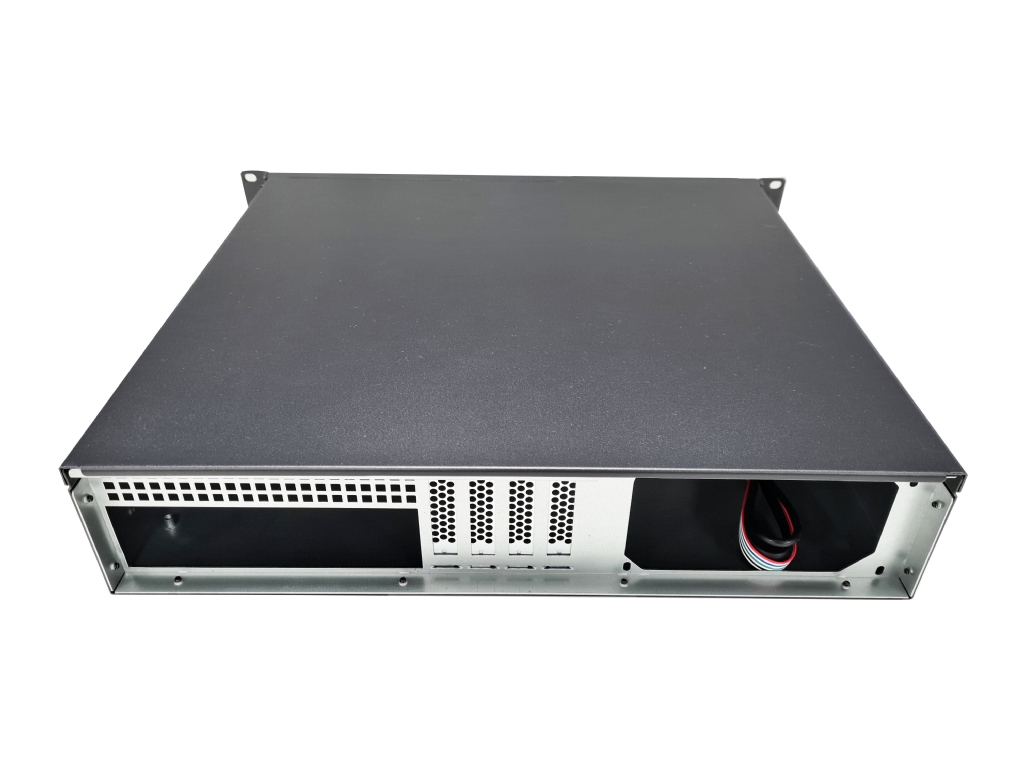

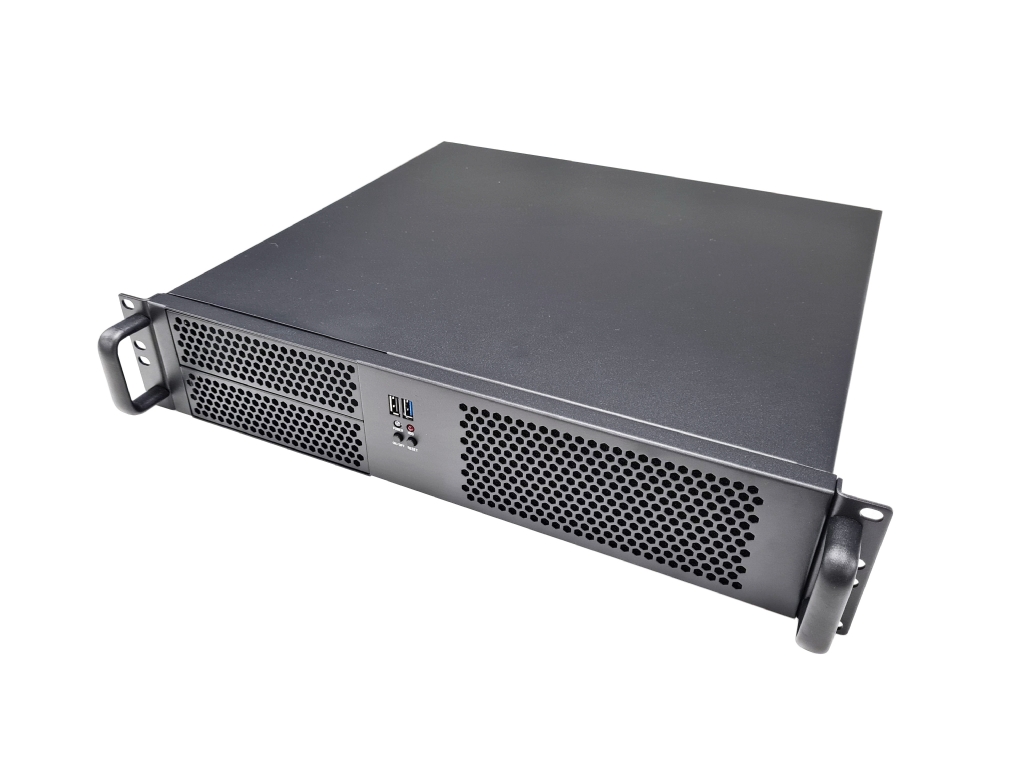

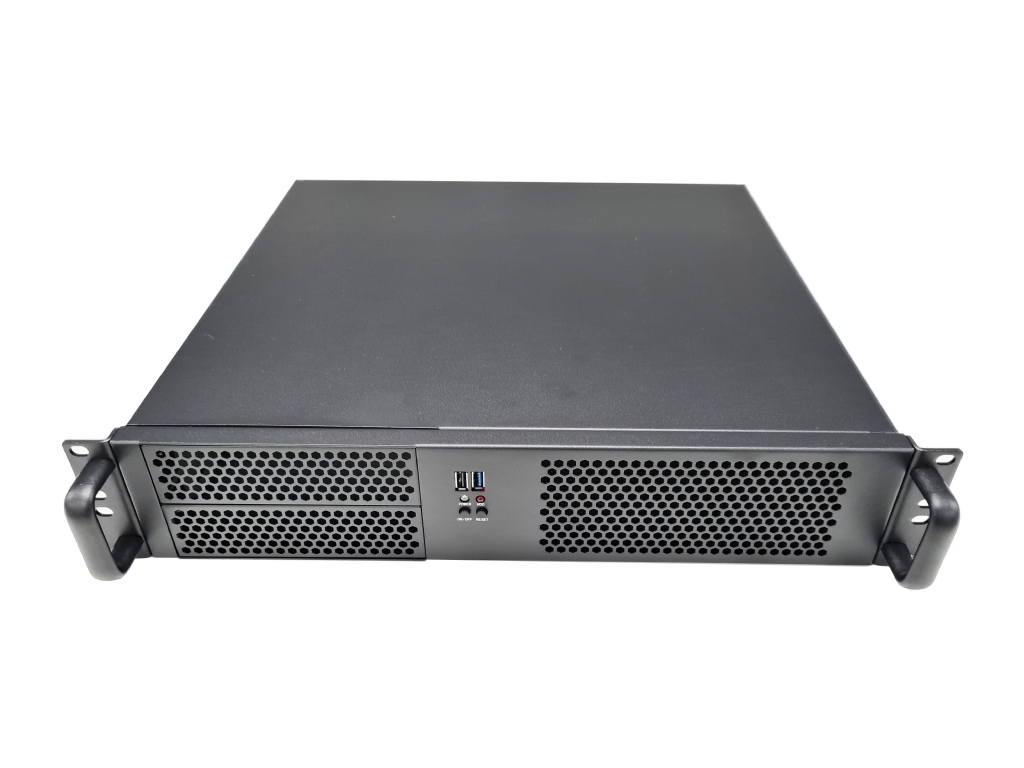

2U Short ATX Chassis - Low Profile PCI Card Support - 390mm Depth

SC-24390
2U Short ATX Chassis - Low Profile PCI Card Support - 390mm Depth
£65.84
ex. VAT
(£79.01
inc. VAT)
This product is currently out of stock.
Call/Email/Live Chat our sales team for availability, we look forward to hearing from you.
Select Options
Quantity


Email me when in stock

Trade Pricing Available

Login or Register to obtain trade pricing on this product.

Looking for Compatible Products?
Product Description
Technical Details
Case Form Factor 2U Rackmount
Motherboard Compatibility Mini-ITX, Micro ATX
Drive Bays

External 5.25"

2
External 3.5" 0
Internal 3.5" 4x Bays Total
Important Note: 4x Bays Usable with Mini ITX Motherboard Only
Important Note: 2x Bays Usable with Micro ATX Motherboard
Internal 2.5" 0
Hotswap 3.5" 0
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0
Hot-Swap Backplane Not Applicable
Expansion Slots Full Height 0
Low Profile 4
Cooling 2x 80mm Front Fans (Molex Input)
Power Supply Form Factor Standard ATX - 80mm Fan Only
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 1
USB 3.0 1
Serial 0
Indicators Power and HDD LEDs
Colour Black
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions 482mm (W) X 390mm (D) X 88.8mm (H)
Weight 6kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
Reviews (3)

Customer Reviews

Mark Hanley

Fast delivery and well packaged. The case is very good quality and came with extra screws for the motherboard etc. I wish I had purchased the power supply though as a standard psu with the top fans are no good the screws wont line up unless upside down and there are no vent holes for the psu if using a standard top fan design psu. Overall the case is perfect for what it is designed for and very happy with the purchase.

Review Submit 3rd Feb 2024

Charlie Boisseau

Great simple case. Transferred from a Supermicro 1U case that was burning up at even moderate use. This case had the room for the CPU cooler that was sorely needed. Working great now, nice and cool and plenty of extra room for drives so have expanded storage while I was at it.

Review Submit 6th Mar 2023

Daniel

Nice design, easy to build in with adequate space to tuck cables away. Not much space for a bottom top breathing PSU but even then its a great little 2u case.

Review Submit 10th Oct 2022
