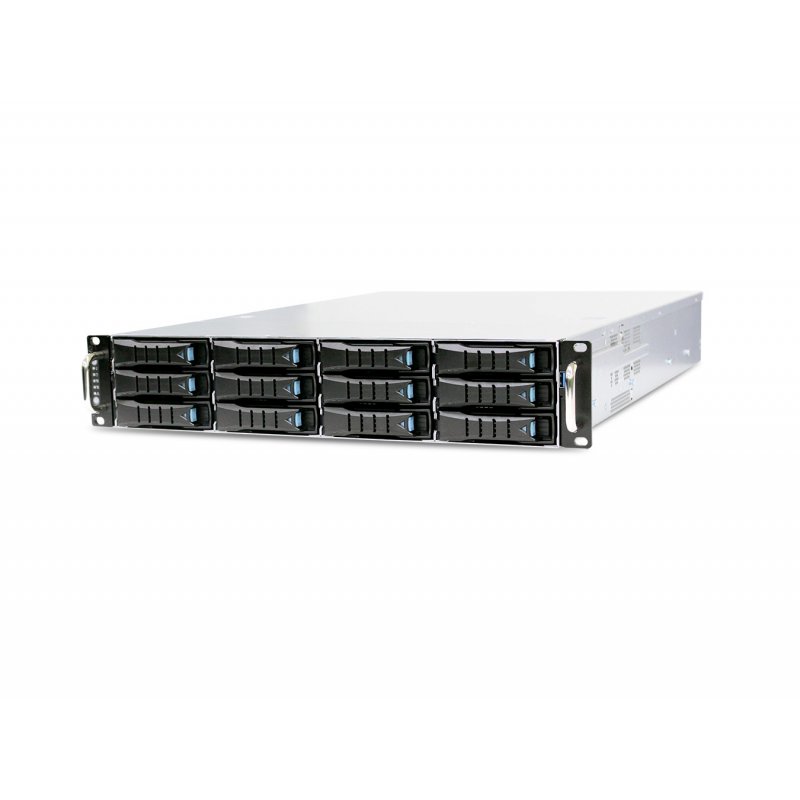

AIC 2U 12G Storage Chassis 12 x 3.5" Tool-Less Hot-Swap + 2 x 2.5" Internal and an 800W Redundant PSU (Rails Included) * 7 x Low Profile

Key Features

• Tool-less design supports quick installation and easy maintenance:
• Tool-less 3.5” & 2.5” drive trays
• Tool-less top covers
• Tool-less backplane
• 3 x easy swap middle fans for superior cooling
• 12Gb/s SAS expander chip on backplane
• Hot swap system fans designed to minimize rotational vibration while providing superior cooling
• 3.5” drive tray comes with 4 screw holes to adapt to 2.5” drive

Features And Benefits

The IPC-C2ET-R8-EOB-12G-LP is a T series 2U 12-bay SAS/SATA storage server chassis. With its tool-less 3.5" and 2.5" hard drive carriers, top covers and backplane, the IPC-C2ET supports quick installation and easy maintenance. This tool-less design solution also features 3 x low-power consumption hot swap fans and SPGC pre-plated steel with minimal paint, offering a cost-effective solution ideally suited for a broad range of applications.

Dimensions (W x D x H) (with chassis ears)
• mm : 483 x 645 x 88
• inches : 19 x 25.4 x 3.5

Industry Standard
EIA-RS310D

Material
Heavy-duty preplated SGCC cold-rolled steel

Color
Front Panel : Black

Cooling

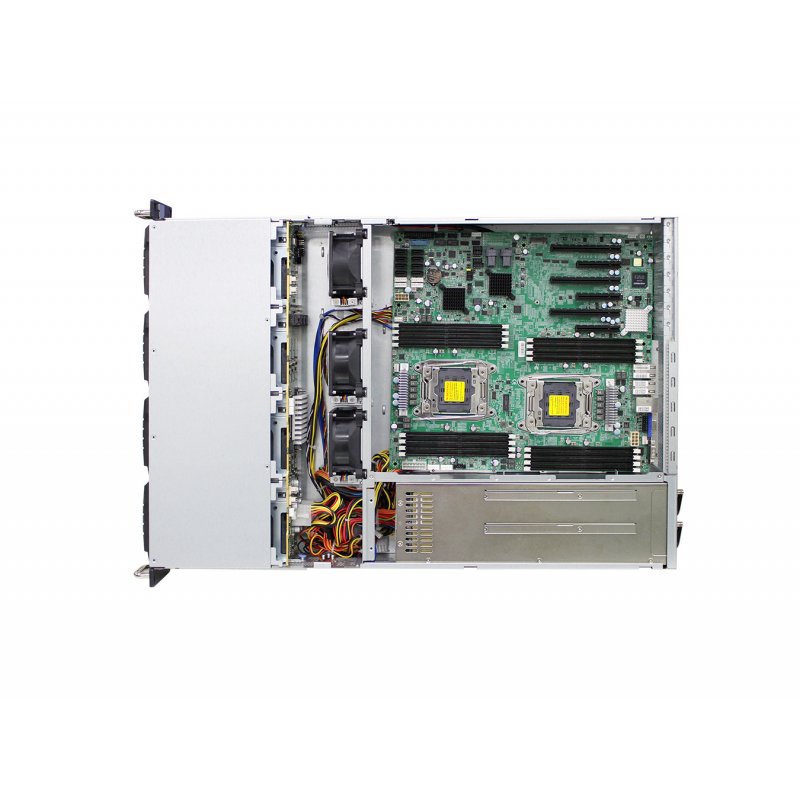

Middle : 3 x 80x38mm PWM & low-power consumption hot swap fans

Power Supply

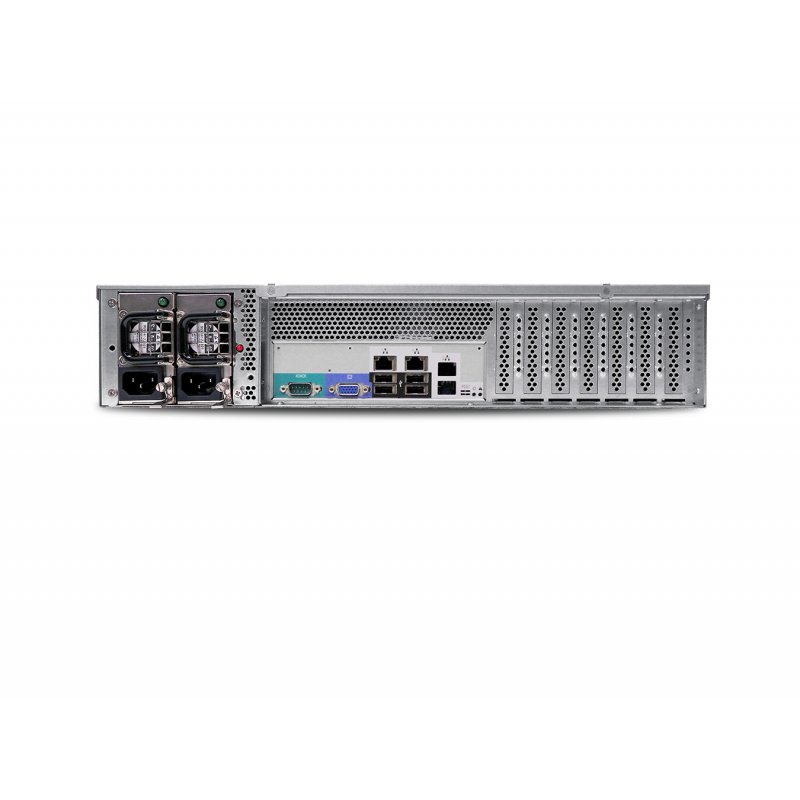

800W 1+1 redundant PSU PMBus 1.2 80+ Platinum

Expansion Slots
7 x low profile

Front Panel
• Power on/off
• System reset
• 1 x USB 3.0 port

LED Indicators
• Power
• LAN
• Drive
• Alert

System Board
12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB

Drive Bays

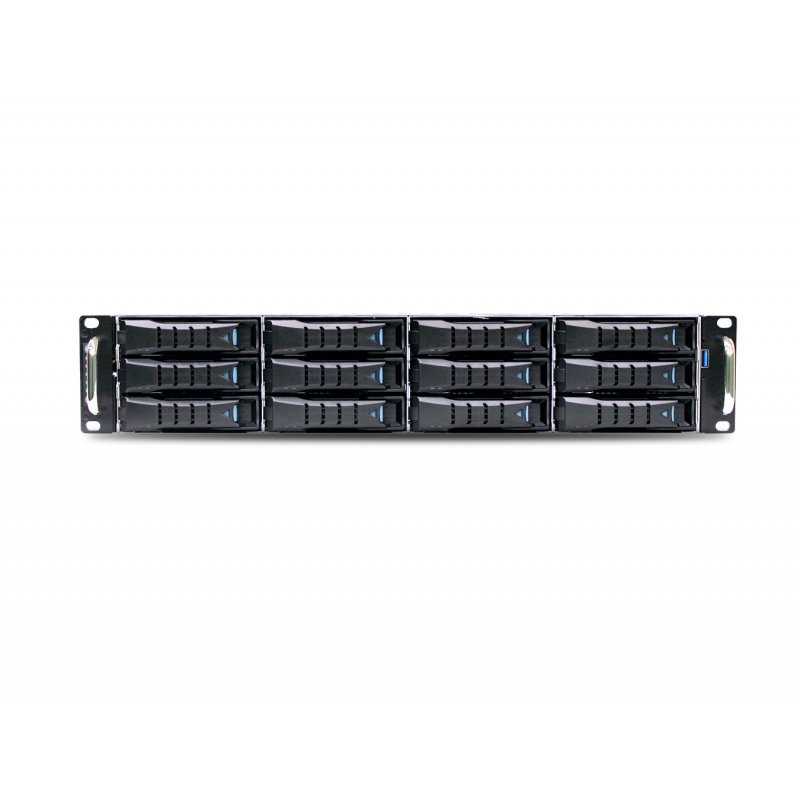

• External : 12 x 3.5” hot swap
• Internal : 2 x 2.5” with 2U PSU

Backplane
1 x 12-port 12Gb SAS backplane with 28-PHY expander and 3 SFF-8643 connectors

Storage Temperature
0°C(32°F) ~ 50°C(122°F)

Humidity
5% ~ 95% non-condensing

Gross Weight (w/ PSU & Rail)
• kgs : 27
• lbs : 59.5

Package Dimension (W x D x H)
• mm : 590 x 850 x 270
• inches : 23.2 x 33.5 x 10.6

Cubic Feet
4.65

Container Load Quantity
• 20’ : 205
• 40’ : 420
• 40’ H : 505

Mounting
Standard : 28” tool-less slide rail
