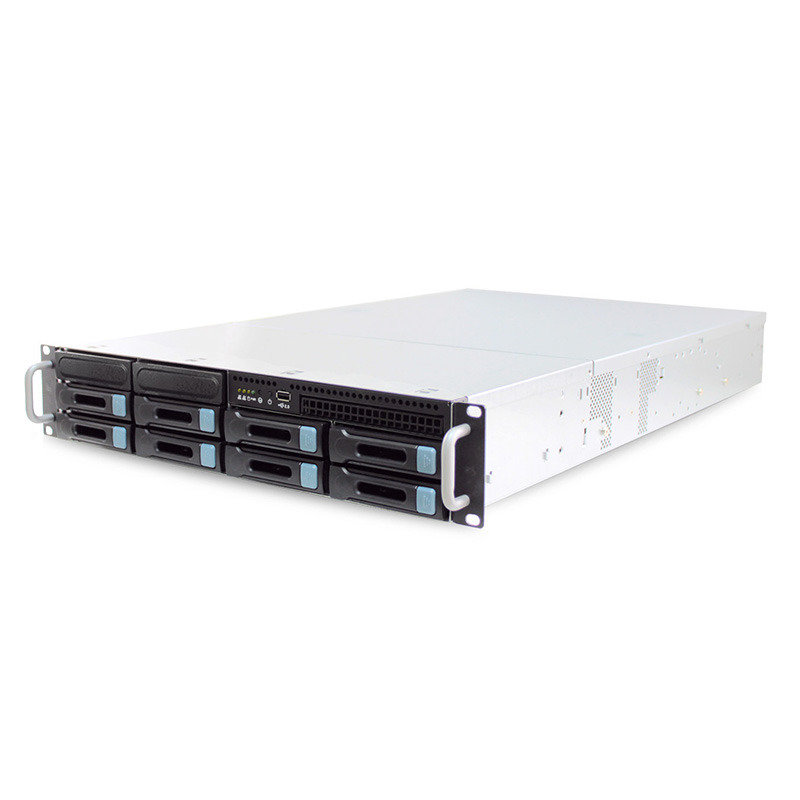

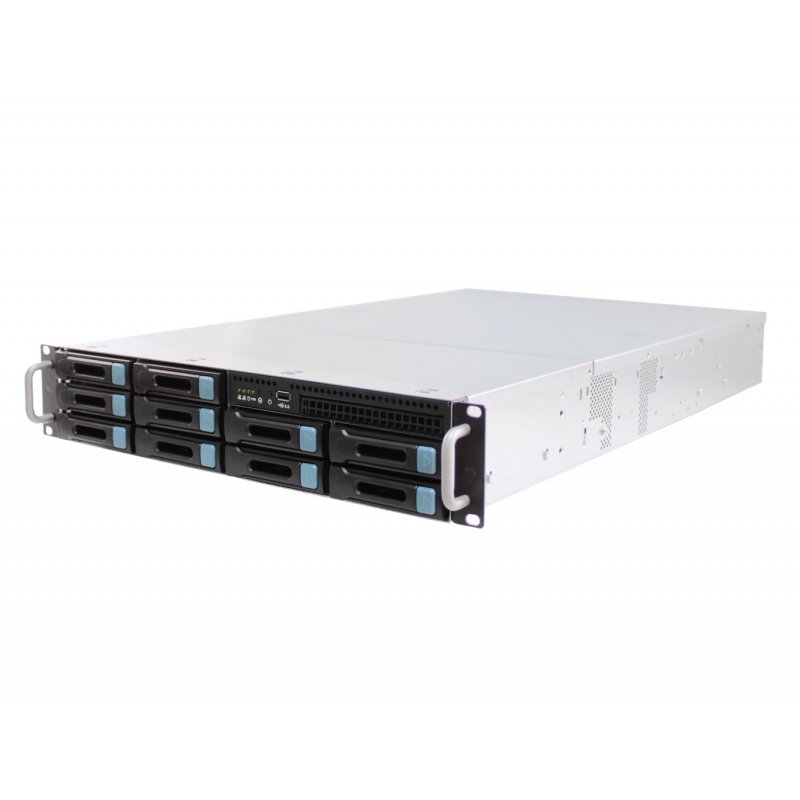

AIC 2U 6G Storage Chassis 8 x 3.5" Hot Swap + 2 x 2.5" Internal + 1 x 5.25" Slim Optical with an 650W Single PSU (Rails Included) * 7 x Low Profile

Key Features

• Up to 10 x 3.5” hot swap drive trays
• Front access USB port
• 3 x easy swap middle fans for superior cooling
• Optimised to use 7 x Low Profile PCI Cards
• Rear access power supply alarm reset button
• 650W 80+ Gold single PSU

Features And Benefits

The IPC-C2KH-BAS65-LP is a H-series 2U 8-bay SAS/SATA storage server chassis. This environmentally friendly solution features high-efficiency power supply, SPGC pre-plated steel with minimal paint, and tool-less ball-bearing mounting rail, offering a cost-effective solution ideally suited for a broad range of applications.

Dimensions (W x D x H) (with chassis ears)
• mm : 482.6 x 700 x 88.8
• inches : 19 x 27.5 x 3.5

Industry Standard
EIA-RS310D

Material
Heavy-duty preplated SPGC cold-rolled steel

Color
Front Panel : Black

Cooling
Middle : 3 x 80x38mm easy swap fans

Power Supply
• 650W Single PSU 80+ Gold

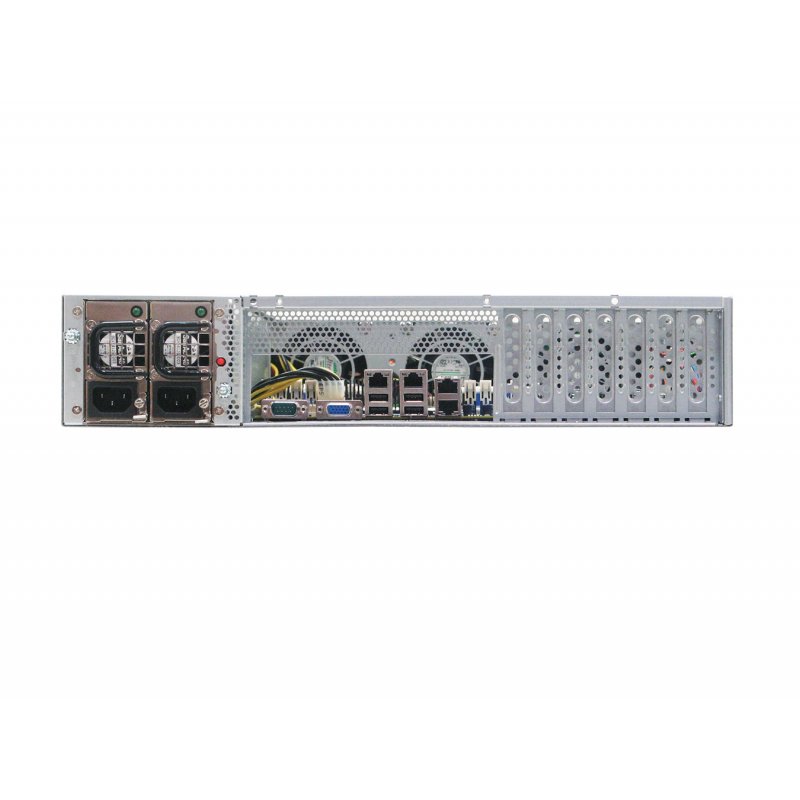

Expansion Slot
• 7 low profile

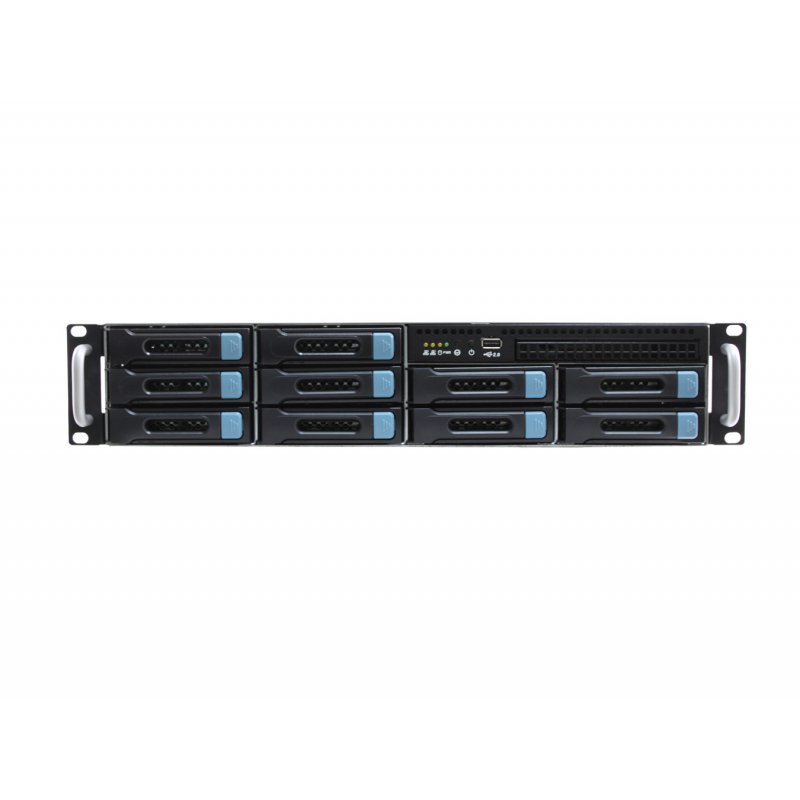

Front Panel
• Power on/off
• System reset
• 1 x USB port

LED Indicators
• Power
• LAN
• Drive

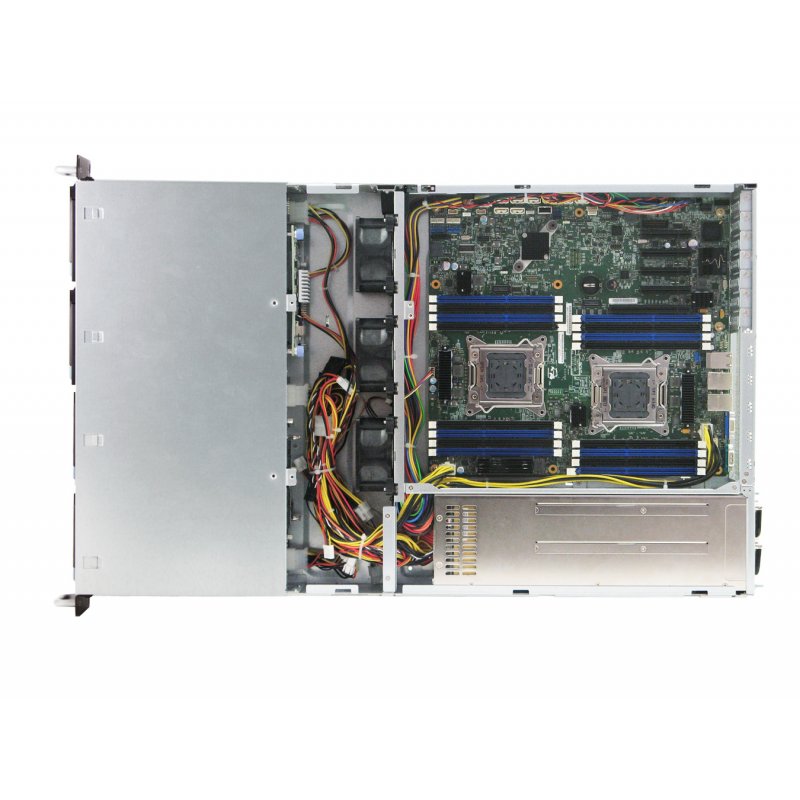

System Board
12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB

Drive Bays
External : 8 x 3.5” hot swap (up to 10) & 1 x Slim DVD-ROM
Internal : 2 x 2.5”

Backplanes
2 x 4-port 6Gb SAS backplanes with single SFF-8087 connector on each

Storage Temperature
0°C(32°F) ~ 50°C(122°F)

Humidity
5% ~ 95% non-condensing

Gross Weight (w/ PSU & Rail)
• kgs : 26.9
• lbs : 59.3

Package Dimension (W x D x H)
• mm : 614 x 945 x 298
• inches : 24.2 x 37.2 x 11.7

Cubic Feet
6.1

Container Load Quantity
• 20’ : 155
• 40’ : 320
• 40’ H : 385

Mounting
Standard : 28” tool-less slide rail
* All specifications are subject to change without notice
