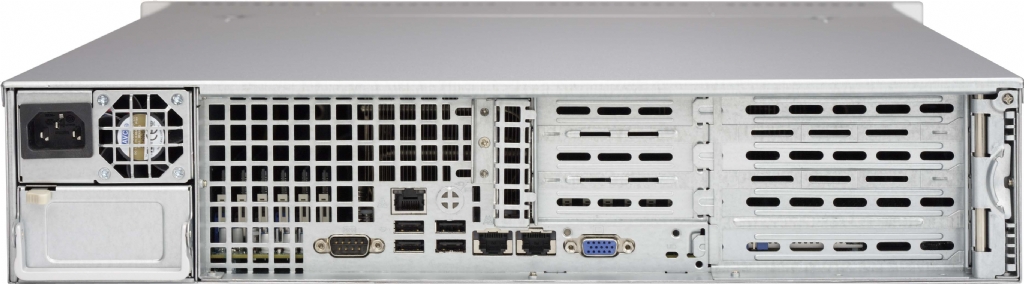

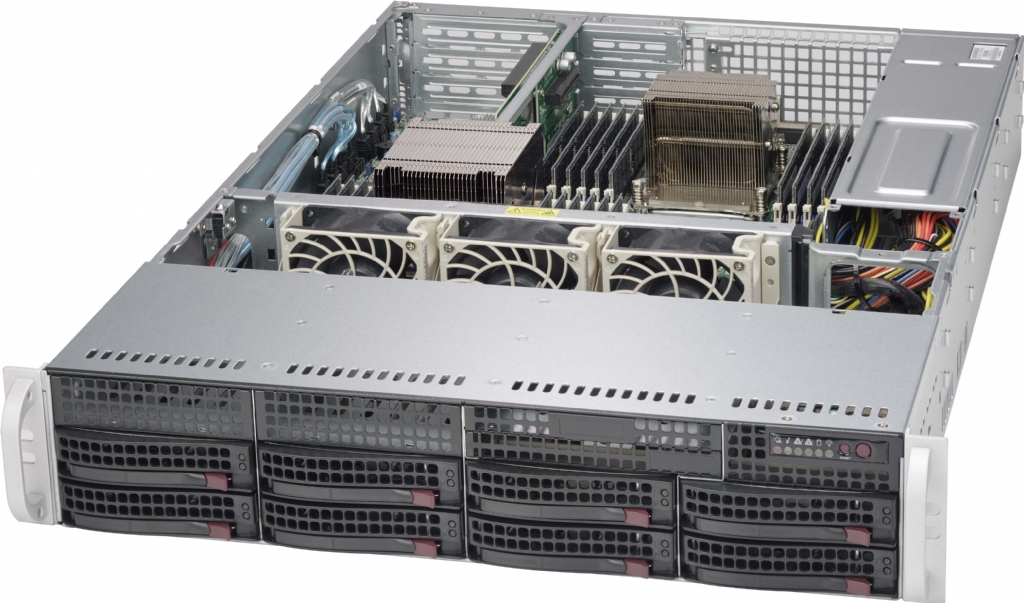

CSE-825TQ-600WB

CSE-825TQ-600WB
CSE-825TQ-600WB
£418.46
ex. VAT
(£502.15
inc. VAT)
This product is currently out of stock. We are expecting stock in Ordered On Request
Quantity


Email me when in stock
Looking for Compatible Products?
Product SKUs
CSE-825TQ-600WB
  • SuperChassis 825TQ-600WB (Black)

Form Factor
2U chassis for motherboard support size of , 12" x 10", 12" x 13", 13.68" x 13"

Processor Support
Supports dual, single Intel® / AMD processors

Dimensions
Height 3.5" (89mm)
Width 17.2" (437mm)
Depth 25.5" (647mm)
Gross Weight 52 lb (23.59 kg)
Packaging
  • 26.7'' (W) x 11.4''(H) 34.5'' (L)
Available Color Black

Expansion Slots
• 4 full-height & full-length expansion slot(s)
• 3 low-profile expansion slot(s)

Drive Bays
Hot-swap 8x 3.5" hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards
SAS or enterprise SATA HDD only recommended

SAS Backplane
1x 2U SAS backplane w/ Enclosure Management

Peripheral Drives
DVD-ROM 1x slim DVD-ROM drive bay

Front Panel
Buttons • Power On/Off button
• System Reset Button
LEDs • 2 Network Activity LEDs
• Fan Fail/System Over Heat LED
• HDD activity LED
• Power Status LED
• Unit Identification (UID) LED
Ports 2x USB 2.0 ports
Servers ( for SC825TQ-600WB )
6027R-TDT+

System Cooling
Fans 3x 8cm (7000 RPM) hot-swap PWM cooling fan

System Monitoring
Chassis intrusion switch

Operating Environment (System)
Operating Temperature Range
  • 5°C ~ 35°C (41°F ~ 95°F)
Non-Operating Temperature Range
  • -40°C ~ 60°C (-40°F ~ 140°F)
Operating Relative Humidity Range
  • 8% ~ 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply with Digital Switching Control & PMBus 1.2
600W AC power supply w/ PFC (24-pin)
AC Voltage
  • 100-240 V, 50-60 Hz, 7.5 Amp max
+5V
  • 18 Amp
+5V standby
  • 3 Amp
+12V
  • 49 Amp
-12V
  • 0.5 Amp
+3.3V
  • 15 Amp
Certification 95%+ Platinum Level Certified
  Platinum Certified
  [ Test Report ]

Regulatory (Power Supply)
Power Supply Safety / EMC
  • USA - UL listed
  • Canada - CUL listed
  • Germany - TUV Certified
  • EN 60950/IEC 60950-Compliant
  • CB Report
  • CCC Certification

Standard Parts List
  Part Number Qty Description
Chassis CSE-825TQ-600WB 1 2U Chassis (black)
Backplane BPN-SAS-825TQ-O-P 1 BPN-SAS-825TQ-O-P
Cable 1 CBL-0180L-01 1 SET OF 4 SATA 70/59/48/38CM ROUND S-RA, 26AWG
Cable 2 CBL-0157L 2 8 pin to 8 pin ribbon SGPIO cable with tube , 40cm, PBF
Power Supply PWS-605P-1H 1 1U 600W Multi Output Power Supply PMbus
Air Shroud MCP-310-29001-0N 1 SC825/826/216/213 Intel DP X9,X8 PC air shroud 1368x13/12x13
Cable 3 CBL-0071L 1 ROUND 16 pin TO 16 PIN RIBBON FP CABLE 30
Peripheral Drive 1 MCP-290-00007-01 1 Black DVD dummy cover for SC825, 836
Fan 1 FAN-0126L4 3 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing
Front Panel FP836-D 1 Front control board Dual color LED(FP836-D)forSC823M,825,825M,828,829,835,836
Drive Tray(s) MCP-220-00023-01 1 Black USB dummy tray support 1x 2.5" slim HDD for SC825, 836
Drive Tray(s) MCP-220-82502-0B 2 Black fixed 3.5
Drive Tray(s) MCP-220-00075-0B 8 Black gen 5.5 hot-swap 3.5\" HDD tray
Mounting Rails MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2\"W
Optional Parts List
  Part Number Qty Description
Rail MCP-290-00058-0N  -- Ball bearing quick release rail for shor-depth rack (19"~26.6")
