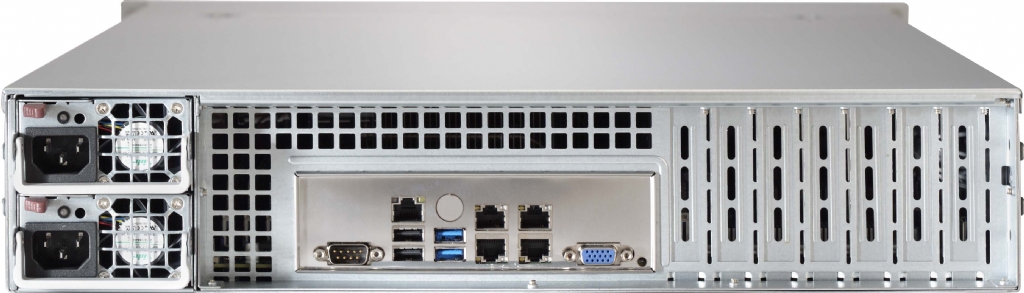

Supermicro CSE-213AC-R1K23LPB

CSE-213AC-R1K23LPB
Supermicro CSE-213AC-R1K23LPB
£724.82
ex. VAT
(£869.79
inc. VAT)
This product is currently out of stock. We are expecting stock in Ordered On Request
Quantity


Email me when in stock
Looking for Compatible Products?
Product SKUs
CSE-213AC-R1K23LPB
  • SuperChassis 213AC-R1K23LPB

Form Factor
  • 2U chassis supports for maximum motherboard sizes - 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards

Processor Support
  • Dual and Single Intel® and AMD processors

Dimensions
Height
  • 3.5" (89 mm)
Width
  • 17.2" (437 mm)
Depth
  • 24.8" (630 mm)
Gross Weight
  • 60 lbs (27.22 kg)
Packaging (W x H x L)
  • 29" (737 mm) x 11" (279 mm) x 38.7" (983 mm)
Available Color
  • Black

Expansion Slots
  • 7 low-profile expansion slot(s)

Drive Bays
  • 16 x 2.5" hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards
  • 1 x 5.25" drive bay

Backplane
  • 16-port 2U SAS3 12Gbps direct-attached backplane, support up to 16x 2.5-inch SAS3/SATA3 HDD/SSD

Peripheral Drives
  • Optional 1 x slim DVD-ROM drive bay
  • Optional 2 x USB 2.0 ports
  • Optional 1 x COM port tray

Front Panel
Buttons
  • Power On/Off button
  • System Reset Button
LEDs
  • 2 Network Activity LEDs
  • HDD activity LED
  • Power Status LED
  • Power Fail LED
  • System Information LED
Motherboard (for CSE- 213AC-R1K23LPB)
X11DPi-N X11DPi-NT
H11DSI-NT H11DSi


Servers (for CSE- 213AC-R1K23LPB)
2029P-C1R 2029P-C1RT


Systems Cooling
Fans
  • 3 x 80mm heavy duty fan(s) with PWM fan(s) speed control

Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply
1U 1200W/1000W Titanium Power Supply W/PMbus W76xL360xH40mm
Power Efficiency
  • 96%
Total Output Power and Input
  • 1000W with Input 100 - 127Vac
  • 1200W with Input 200 - 240Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 336 x 76 x 40 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 83A (100Vac - 127Vac)
  • Max: 100A (200Vac - 240Vac)
+5Vsb
  • Max: 4A / Min: 0A
Power Distributor
  • PDB-PT216-8824
  • O/P: 12V/100
  • +5V Max: 30
  • +3.3V Max: 24
  • -12V Max: 0.6
Certification
  • Titanium Certified  Titanium Certified

Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class A
  • UL/CB
  • UL/CUL
Standard Parts List
  Part Number Qty Description
Air Shroud MCP-310-29001-0N 1 SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13
HD Backplane BPN-SAS3-213A 1 16-port 2U SAS3 12Gbps direct-attached backplane, support up to 16x 2.5-inch SAS3/SATA3 HDD/SSD
Cable(S) CBL-0071L 1 CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,75CM,28AWG
Cable(S) CBL-0088 3 10.5", 4 PIN MIDDLE FAN POWER EXTENSION (PWM)
Cable(S) CBL-0160L 2 NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
Cable(S) CBL-0217L 1 CBL,CNTL PANEL CONVERTER,FOR SC826/846,FFC,16PIN,22CM
CD-ROM & Accessory MCP-290-00007-01 1 Black DVD dummy cover for SC825, 836
Fan(s) FAN-0181L4 3 80x80x38 mm, 9.4K RPM, Hot-swappable Middle Cooling Fan for X11 Purley Platform Newly Enabled 2U+ Chassis
Front Panel MCP-280-00018-0N 1 SC826 front control board adapter
Drive Tray(s) MCP-220-00009-01 1 Black 5.25"; drive tray w/o rail (square pattern)
Drive Tray(s) MCP-220-00023-01 1 Black USB dummy tray support 1x 2.5" slim HDD for SC825, 836
Drive Tray(s) MCP-220-00047-0B 16 Black gen 3rd hot-swap 2.5inch HDD tray
Power Distributor PDB-PT216-8824 1 POWER DISTRIBUTOR FOR SC216
Power Supply & Accessory PWS-1K23A-1R 2 AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH
Mounting Rail(s) MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2";W
Rear Window MCP-240-82506-0N 1 LP Rear Window for SC825,825M,826,213,216

Optional Parts List
  Part Number Qty Description
Rail MCP-290-00058-0N - Short rail set, quick release, 19.6"~26.9" Extendable Length
Front USB MCP-220-00007-01 - Black USB/COM port tray for SC825, 836
Front Bezel MCP-210-82601-0B - Black Front Bezel for 826 chassis
Tray(s) MCP-290-00036-0B - Black DVD dummy tray support 1x2.5 HDD for SC113,815,825,836
HDD Kit MCP-220-81506-0N - 12G 2.5-in Hot-swap Slim DVD Size Drive Kit with Status LED
DVD-ROM / DVD-RW MCP-220-81502-0N - Slim SATA DVD mounting kit for SC213,219,813,815,818,819,825,828,829,836,842
DVD-ROM / DVD-RW DVM-PNSC-DVD-SBT3 - BLACK PANASONIC SLIM DVD ROM SATA DRIVE,HF,RoHS/REACH
Cable CBL-SAST-0508-01 - Internal Mini-SAS to Mini-SAS HD 50cm w/ SB, 30AWG,HF,RoHS/REACH,PBF
Cable CBL-SAST-0568 - Internal Mini-SAS HD to Mini-SAS HD 35cm,30AWG,12Gb/s,HF,RoHS/REACH,PBF
Cable CBL-SAST-0591 - cross-over mini SAS HD to 4 SATA w/SB, S. 75cm. 30AWG,HF,RoHS/REACH,PBF
