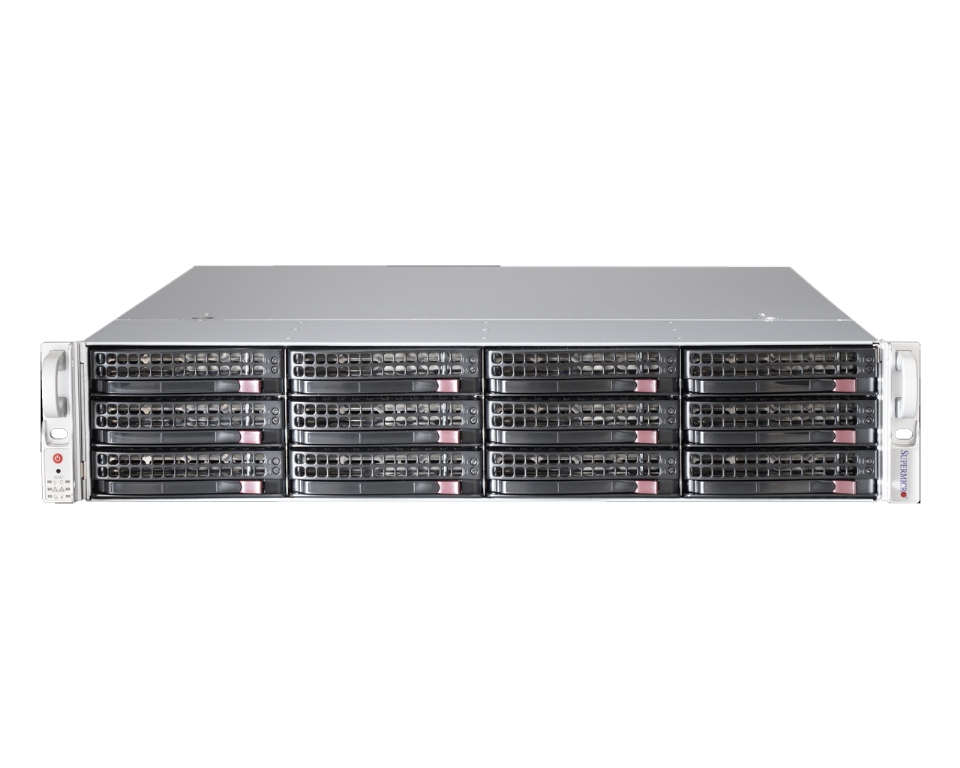

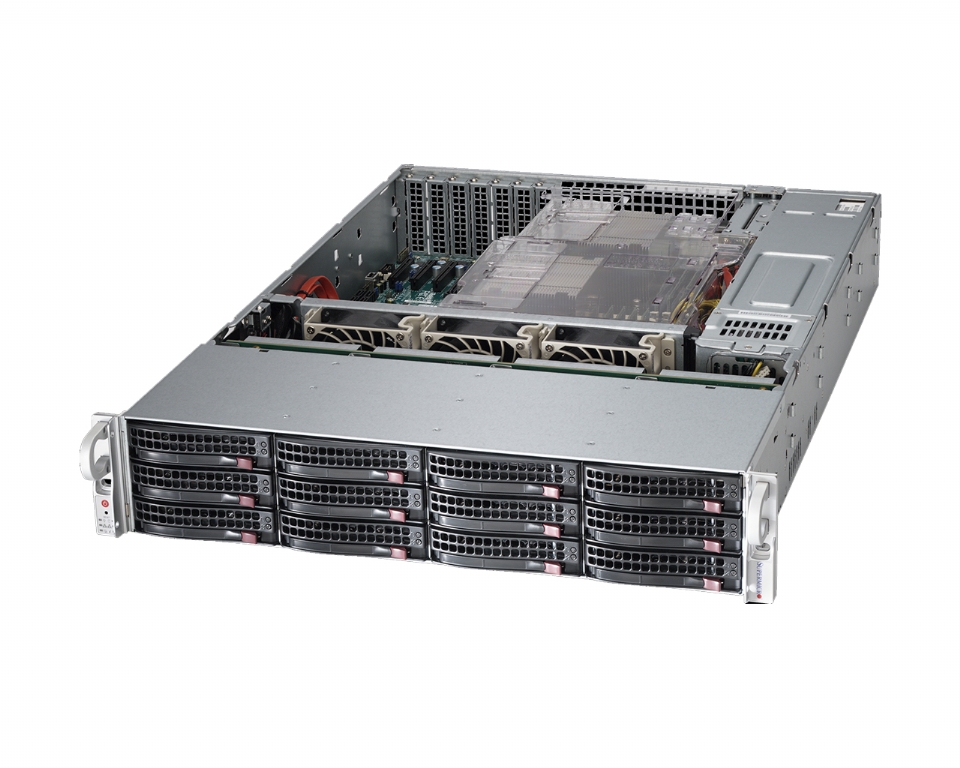

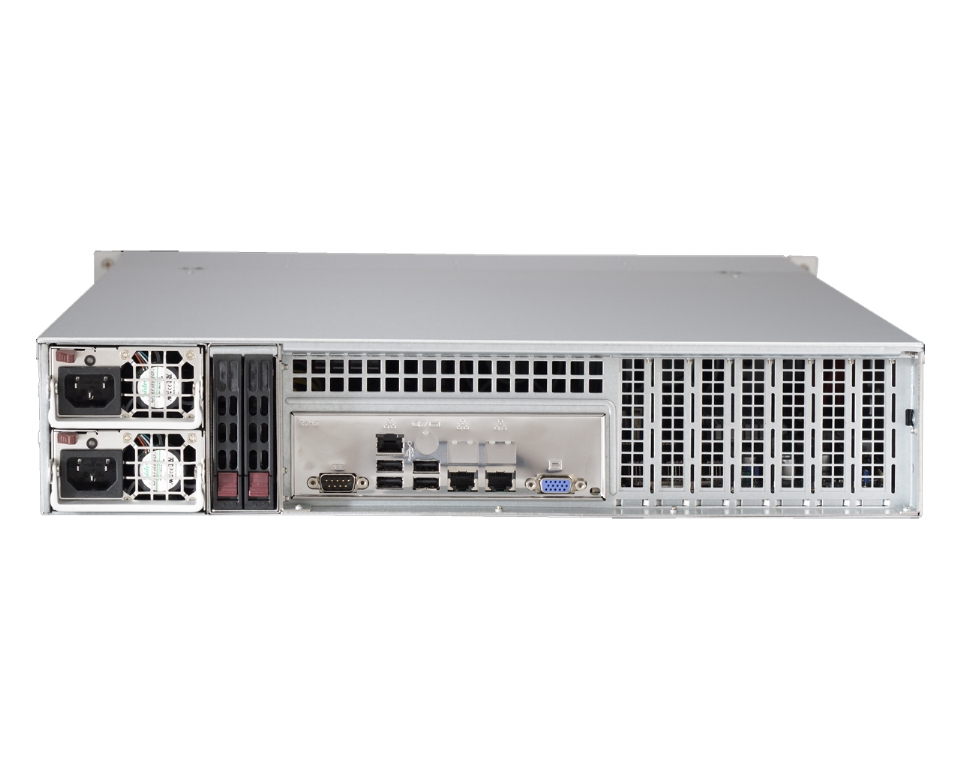

Supermicro SuperChassis 826BE16-R920LPB (Black)

CSE-826BE16-R920LPB

Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.

Looking for Compatible Products?

More from this brand

Product Description

Product SKUs - Discontinued SKU. Please contact sales-rep for possible OEM production quantities. MOQ may apply

CSE-826BE16-R920LPB	SuperChassis 826BE16-R920LPB


Form Factor

2U chassis support for maximum motherboard size - 12" x 13", 13" x 13.68". Support up to 12"x13" MB with rear 2.5" HDD option installed.


Processor Support

Dual and Single Intel® and AMD processors


Dimensions

Height	3.5" (89 mm)
Width	17.2" (437 mm)
Depth	25.5" (647 mm)
Gross Weight	52 lbs (23.59 kg)
Packaging (W x H x L)	26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm)
Available Color	Black


Expansion Slots

7 low-profile expansion slot(s)


Drive Bays

12 x 3.5" hot-swap SAS/SATA drive bay with SES2 and Mini-i-Pass (SFF 8087) connectivity


Front Panel

Buttons	Power On/Off button System Reset Button
LEDs	2 Network Activity LEDs Fan Fail/System Over Heat LED HDD activity LED Power Status LED Unit Identification (UID) LED


Motherboard (for CSE- 826BE16-R920LPB)

X9DR7-TF+	X9DRE-TF+
X9DR3-F	X9DRi-F
X9DR7-LN4F (-JBOD)	X9DRE-LN4F
X9DRH-7F	X9DRH-7TF
X9DRH-iF	X9DRH-iTF
X9DRD-7LN4F-JBOD	X9DRD-EF
X9DRD-7LN4F	H8DG6
H8DG6-F	H8DGi
H8DGi-F	X9DB3-TPF
X9DB3-F	X9DBi-TPF
X9DBi-F	X9DRH-iF-NV


Servers (for CSE- 826BE16-R920LPB)

6027R-E1R12N	6027R-E1R12L
6027R-E1R12T

Systems Cooling

Fans	3 x 8cm high-performance PWM fan(s) Optional 5x 6cm hot-swap cooling fans


System Monitoring

Chassis intrusion switch


Operating Environment (System)

Operating Temperature Range	5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non-Operating Relative Humidity Range	5% - 95% (non-condensing)


Power Supply
1U 920W Redundant Platinum Super Quiet power supply W/PMbus
Power Efficiency	94%
Total Output Power and Input	920W with Input 100 - 240Vac
AC Input Frequency	50-60Hz
Dimensions (L x W x H)	336 x 76 x 40 mm
Output Type	Backplanes (gold finger)
+12V	Max: 75A / Min: 1A (100Vac - 240Vac)
+5Vsb	Max: 4A / Min: 0A
Power Distributor	PDB-PT825-S8824 O/P: 12V/75A +5V Max: 30A +3.3V Max: 24A -12V Max: 0.6A
Certification	Platinum Certified


Regulatory (Power Supply)

Power Supply Safety / EMC	BSMI CCC CE/EMC FCC class B TUV/CB UL/CUL


Optional Parts List

	Part Number	Qty	Description
Short Rail	MCP-290-00058-0N	-	Short rail set, quick release, 19.6"~26.9" Extendable Length
HDD Kit	MCP-220-82609-0N	-	Rear 2.5 x 2 Hot swap HDD kit for 216B/826B/417B/846X/847B
Front Bezel	MCP-210-82601-0B	-	Black Front Bezel for 826 chassis
Fan Kit	MCP-320-82603-0N	-	6cm fan cooling module for 826B/216B (5X6cm fan)
Tray(s)	MCP-220-00043-0N	-	Black hotswap gen 4 3.5 to 2.5 HDD tray
