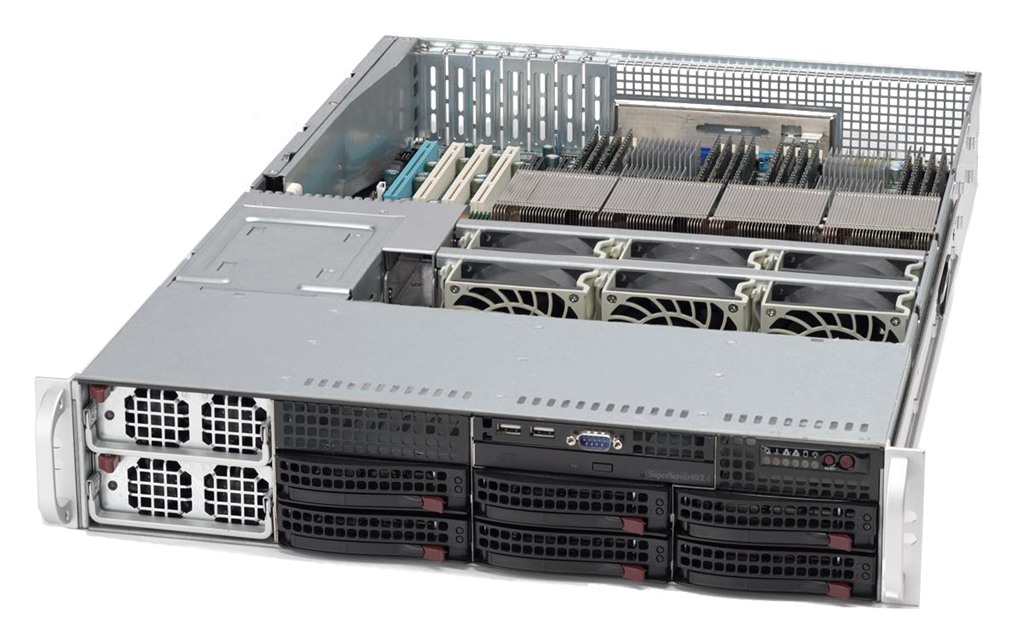

Supermicro SuperChassis 828TQ-R1200LPB (Black)

CSE-828TQ-R1200LPB

Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.

Looking for Compatible Products?

More from this brand

Product Description


Product SKUs

CSE-828TQ-R1200LPB	SuperChassis 828TQ-R1200LPB (Black)


Form Factor

2U chassis support for max. motherboard size - 16.48" x 14.3" (Quad-processor motherboards)


Processor Support

Supports Intel® / AMD Quad processors motherboards


Dimensions

Height	3.5" (89mm)
Width	17.2" (437mm)
Depth	27.9" (709mm)
Gross Weight	55.4 lbs (25.1kg)
Available Colors	Black


Expansion Slots

• 7x low-profile full-length expansion slots


Drive Bays

Hot-swap	6 x 3.5" SAS / SATA Hot-swap drive trays SAS or enterprise SATA HDD only recommended


SAS / SATA Backplane

1x 2U SAS / SATA backplane w/ SES-II


Front Panel

Buttons	• Power On/Off button • System Reset button
LEDs	• Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED • Power fail LED
Ports	2x USB Ports + DB9 COM Port (optional)


System Cooling

Fans	6x 80mm 6500 RPM fans



Operating Environment (System)

Operating Temperature Range	5°C ~ 35°C (41°F ~ 95°F)
Non-Operating Temperature Range	-40°C ~ 60°C (-40°F ~ 140°F)
Operating Relative Humidity Range	8% ~ 90% (non-condensing)
Non-Operating Relative Humidity Range	5% - 95% (non-condensing)


Power Supply

1200W (1 + 1) Redundant high-efficiency power supply w/ PFC
1200W
+5V standby	4 Amp
+12V	100 Amp
900W
+5V standby	4 Amp
+12V	74 Amp
With Power Distributor	+5V: 20 Amp +3.3V: 20 Amp -12V: 0.6 Amp


Regulatory (Power Supply)

Power Supply Safety / EMC	USA - UL listed Canada - CUL listed Germany - TUV Certified EN 60950/IEC 60950-Compliant CB Report CCC Certification


Standard Parts List

	Part Number	Qty	Description
Chassis	CSE-828TQ-R1200LPB	1	2U Black Chassis
Backplane	BPN-SAS-828TQ	1	Sup 6x SAS/SATA hdd; SATA con
Cable 1	CBL-0157L	1	8 pin to 8 pin ribbon SGPIO cable with tube , 40cm, PBF
Cable 2	CBL-0044L	6	SATA CABLE 61CM FLAT S-S PBF. 26AWG flat
Power Supply	PWS-1K22-1R	2	1200W POWER SUPPLY FOR 818 CHASSIS
Power Distributor	PDB-PT828-8824	1	POWER DISTRIBUTOR BOARD FOR SC828
Cable 3	CBL-0160L	2	NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
Cable 4	CBL-0154L	2	AC POWER CABLE FOR SC818, 36.5CM PBF
Cable 5	CBL-0222L	1	Front ctrl cable 16 PIN TO 16 PIN FLAT ,65CM, 28AWG
Peripheral Drive 1	MCP-290-00007-01	1	Black DVD dummy cover for SC825, 836
Fan 1	FAN-0099L4	6	80X38MM 4PIN PWM FAN W/HUS FOR SC828, PBF
Front Panel	MCP-280-82801-0N	1	Front Control Panel PCB With Housing
Fan Holder	MCP-320-82801-0N	2	3x 8cm fan middle bracket for SC828 rev K
Drive Tray(s)	MCP-220-00075-0B	6	Black gen 5.5 hot-swap 3.5\" HDD tray
Drive Tray(s)	MCP-220-82502-0B	1	Black fixed 3.5
Drive Tray(s)	MCP-220-00023-01	1	Black USB dummy tray support 1x 2.5" slim HDD for SC825, 836
Part(s)	MCP-120-82801-0N	1	Cable Routing Tunnel Bracket
Part(s)	MCP-270-00008-00	1	2U SC828 chassis base
Mounting Rails	MCP-290-00053-0N	1	Rail set, quick/quick, default for 2,3U 17.2"W
Rear Window	MCP-240-00037-00	1	Rear window for SC828 LP


Optional Parts List

	Part Number	Qty	Description
Heatsink / Retention	-	-	Please refer to our Thermal Components Matrix
Mounting Rails	MCP-290-00058-0N	-	19" to 26.6" rail set, quick/quick, optional for 2U, 3U 17.2" W chassis
Cable Management Arm	MCP-290-00073-0N	-	Supermicro Cable Management Arm for 2U, 3U and 4U chassis (Extendable Length: 70mm to 830mm)
Peripheral Drives	FPD-TEAC-S(B) MCP-220-82503-0B MCP-220-00023-01 MCP-290-00003-(01/03) MCP-290-00007-01	- - - - -	Slim TEAC Floppy Drive (B = Black) Slim Floppy Drive Kit USB Dummy Tray (01 = Black) FDD Cover (01 = Black / 03 = Silver) DVD-ROM Drive Dummy Cover (01 = Black)
Peripheral Drives	DVM-TEAC-824B DVM-TEAC-DVD-SBT2 DVM-PNSC-DVD-SBT2 MCP-220-81502-0N	- - - -	Black slim IDE DVD (8x DVD, 24x CDR), TEAC Black slim SATA DVD (8x DVD, 24x CDR), TEAC Black slim SATA DVD (8x DVD, 24x CDR), Panasonic Slim SATA DVD kit (include backplane, cable)
Front Bezel ( Compatibility Table )	MCP-210-82503-0B	-	Front Bezel Cover, Black (optional)
LCD/OLED Solutions	-	-	Please reference the LCD/OLED Display Solutions for details
Adaptor HDD carrier	MCP-220-00043-0N	-	Adaptor HDD carrier to install 2.5" HDD in 3.5" HDD tray
