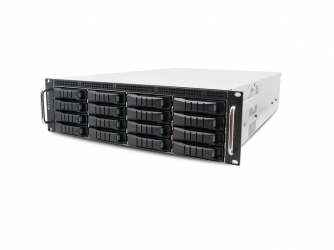

AIC 3U 12G Storage Chassis 16 x 3.5" Hot-Swap + 2 x 2.5" Internal with an 800W Redundant PSU (Rails Included)

Features :

• Tool-less design supports quick installation and easy maintenance: - Tool-less 3.5” & 2.5” hard drive carriers - Tool-less top covers - Tool-less backplane
• SAS 12Gb/s expander chip on backplane
• Hot swap system fans designed to minimize rotational vibration while providing superior cooling
• 3.5” hard drive carrier comes with 4 screw holes to adapt to 2.5” hard drive

Specifications

Dimensions(W x D x H)(with chassis ears)
mm : 483 x 645 x 132
inches : 19 x 25.4 x 5.2
Industry Standard EIA-RS310D
Materials Heavy-duty preplated SPGC cold-rolled steel
Color Front Panel : Black
Cooling Middle : 3 x 8038mm PWM & low-power consumption
hot-swap fans

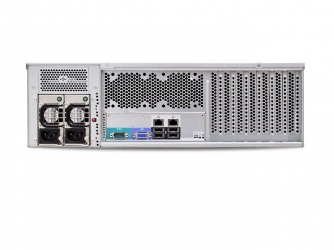

Power Supply 800W 1+1 Redundant PSU PMBus 1.2 80+ Gold level
Expansion 7 x full height PCI slots
Controls System power on/off and system reset, 2 x USB 3.0 ports
Indicators System power, LAN, HDD and Alert LEDs
System Board 12"(W) x 13"(D) E-ATX/SSI EEB 3.6 compliant MB

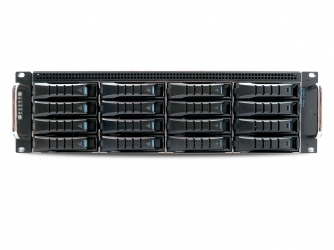

Drive Bay External
3.5" hot swap 16
2.5" hot swap 0 (2 by option)

Drive Bay Internal
3.5" HDD 0
2.5" HDD
Option 1 : 6
Option 2 : 4 only if opting for 2 x 2.5" hot swap or 1 x Slim DVD-Rom
Option 3 : 2 only if opting for 2 x 2.5" hot swap and 1 x Slim DVD-Rom
Temperature 0ºC(32ºF) ~ 50ºC(122ºF)
Humidity 5%~95% non-condensing
Gross Weight (w/ PSU & Rail) 32 kgs / 70.4 lbs
Packaging Dimension (W x D x H)
mm : 590 x 850 x 335
inches : 23.2 x 33.5 x 13.1
Cubic Feet 6.03
Reference Container Loading
20' 158
40' 323
40' H 390
Backplane 16 ports HDD backplane with 12Gb/s 28-PHY expander on board
