In-Win IW-R300-01N - 3U Feature Rich Short Depth Server Chassis for CCTV Applications

In-Win IW-R300-01N - 3U Feature Rich Short Depth Server Chassis for CCTV Applications

Part Code: IW-R300-01N

Features

In-Win IW-R300-01N - 3U Feature Rich Short Depth Server Chassis for CCTV Applications
Click on a thumbnail below to view a larger image.
  • Photo 1
  • Photo 2
  • Photo 3
  • Photo 4
  • Photo 5
  • Photo 6
  • Photo 7
  • Photo 8
Note: We do our best to ensure that the photo's shown are of the current revision of each product, however please contact us if you need to confirm the cosmetic design shown is correct before ordering. The hardware components shown in the photo's are not included and are for illustrative purposes only, please call to confirm if in any doubt.

Product Description

Features

  • Open-Bay 3U Server Chassis.
  • Compatitable with single or redundant power supply.
  • Specially designed for surveillance DVR composition
  • Expandable storage option with In Win storage kit

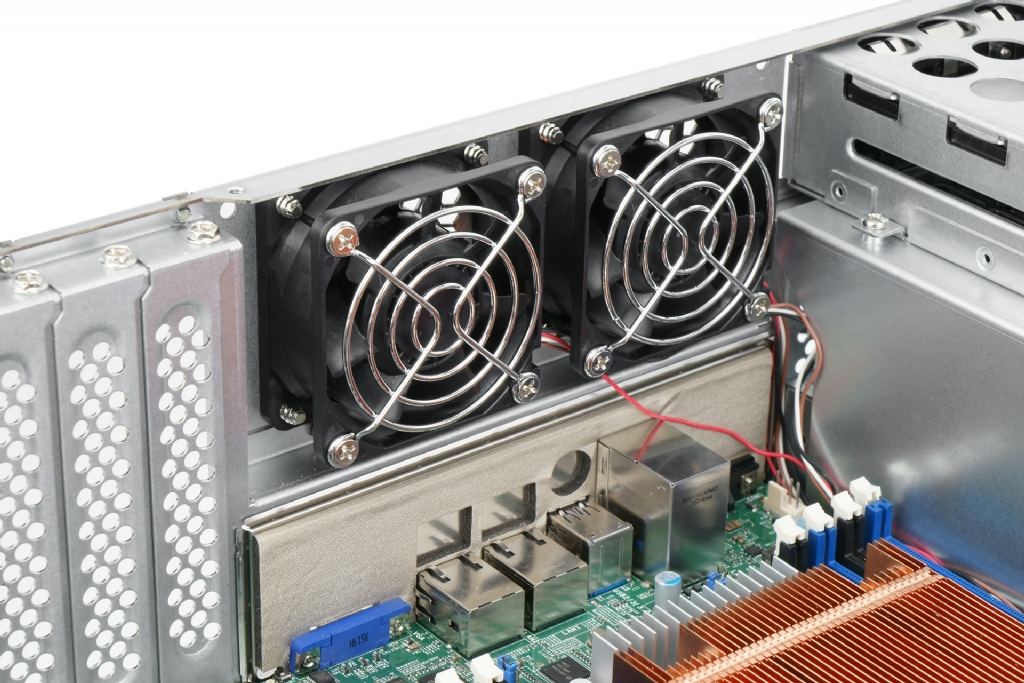

  • Supports 60 x 25 mm rear fan x 2 for optimized cooling (optional)

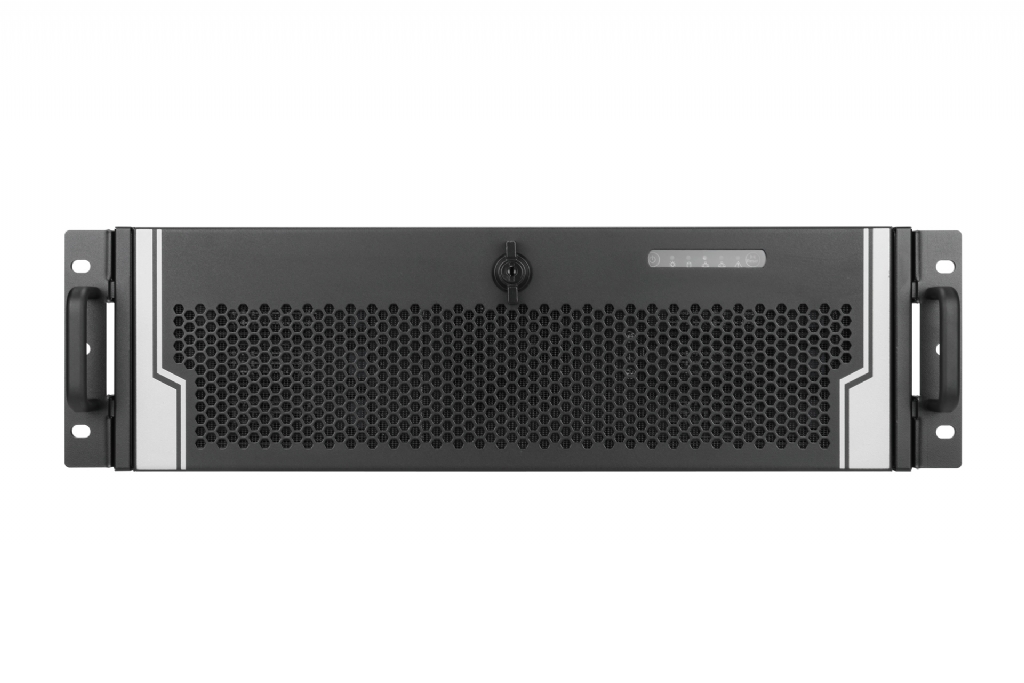

  • Lockable front door for hardware security



Specifications




Standard

EIA-RS310D

M/B Form Factor

ATX (12" X 9.6"),  CEB (12" X10.5")

Dimensions (D x W x H)
w/ Front Door

550 x 482.6 x 133.4 mm (21.7" x 19" x 5.25")

Drive Bay

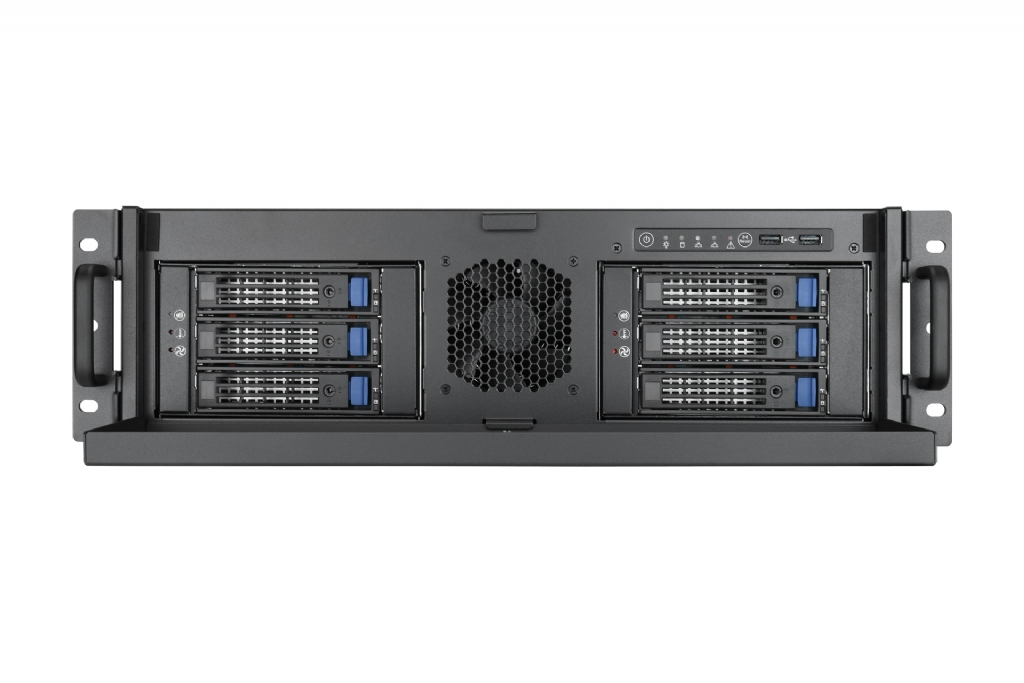

External: 5.25" x 4

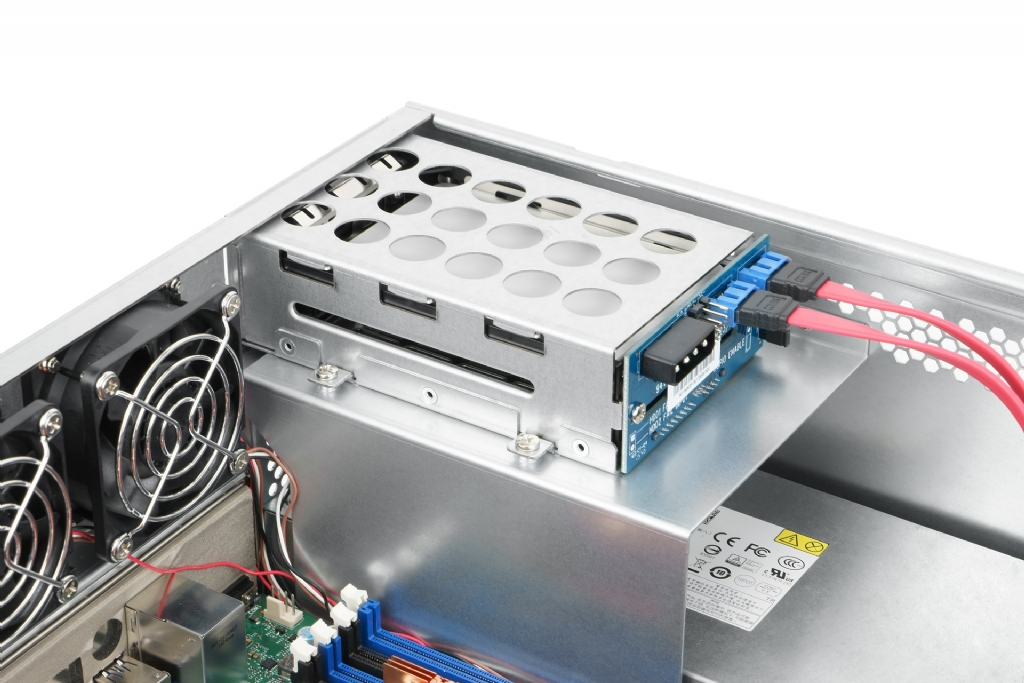

2.5" Hot-swap x 2 (Optional)

Power Supply

Supports
Form Factor: Single or 2U 1+1 Redundant
Watt: Single 500W , Redundant 550W

Indicator

Power Status, HDD, LAN Activity LEDs

Front Control Panel

Power Switch, System Reset, USB 2.0 x 2

Chassis Security

Intrusion Switch

Cooling Fan

Supports

80 x 25 mm PWM Front Fan x 1

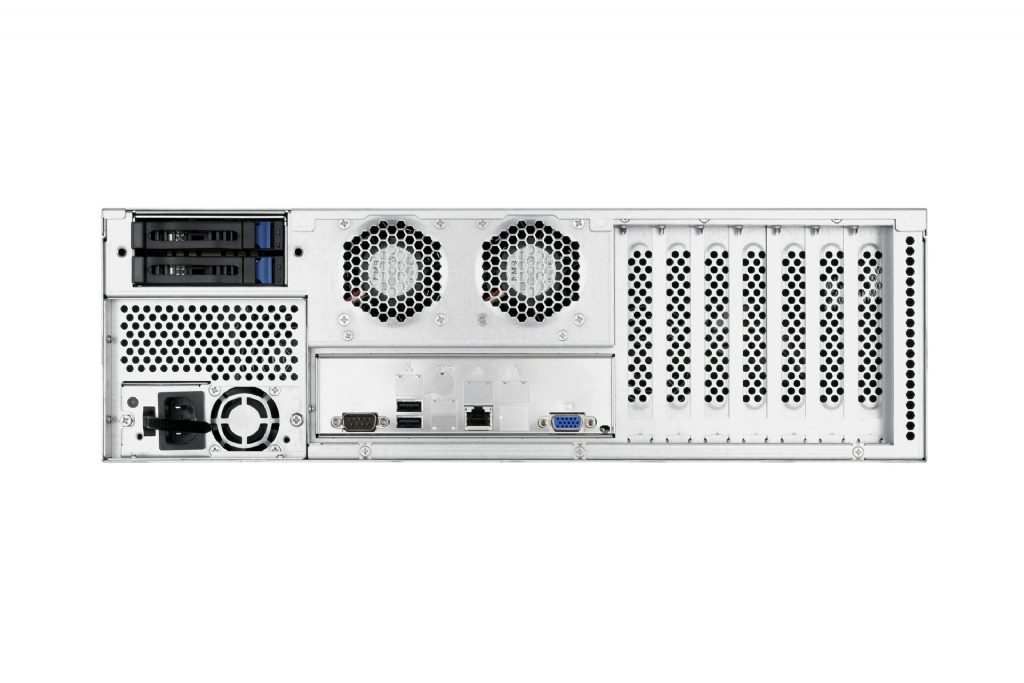

60 x 25 mm PWM Rear Fan x 2 (Optional)

Expansion Slot

Full Height PCI Slot x 7

Material

Material: SGCC
Thickness: 1.2 mm

Rail Kit

Supports 28" Ball-bearing

Packaging Dimensions
(D x W x H)

710 x 595 x 258 mm

Shipping Info.

Net Weight: 12.3 kg
Gross Weight: 17.8 kg

Container Info.

Single Packing:
20’: 168pcs
40’: 350pcs
40’HQ: 400pcs

* The actual product is subject to change without prior notice.
In Win Development Inc. reserves the right to make final modifications.
* Above image for reference only. All hardware components are not included.
