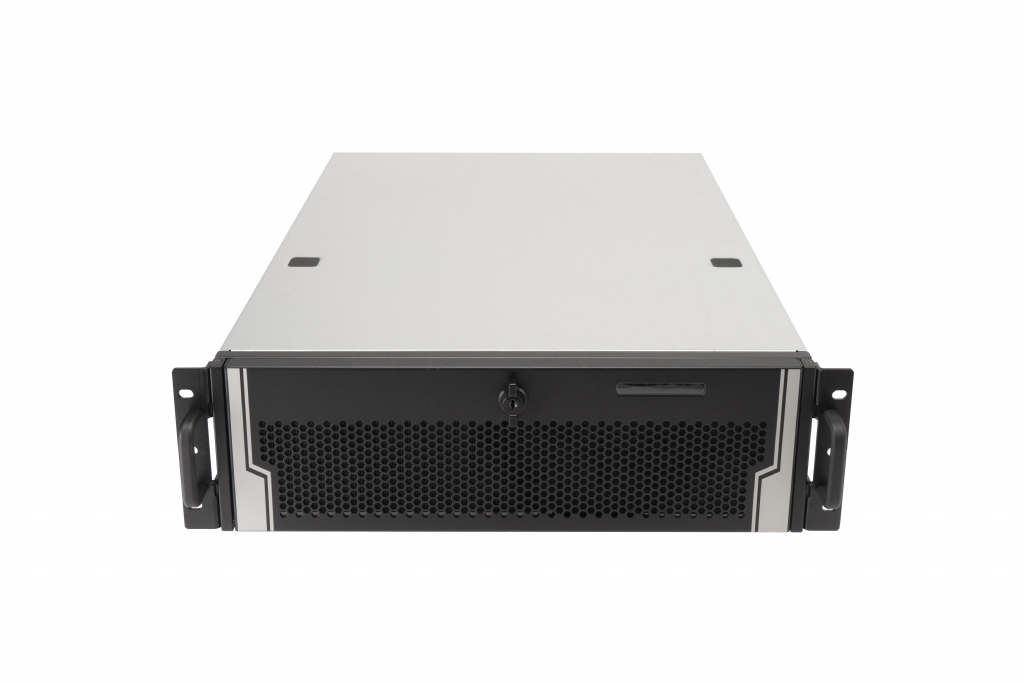

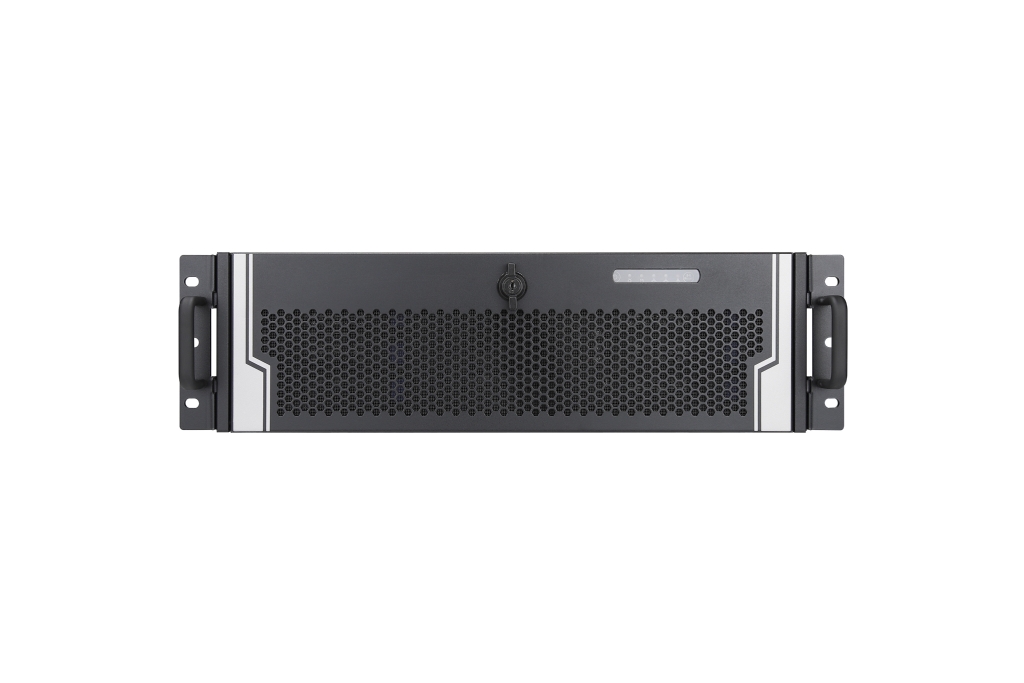

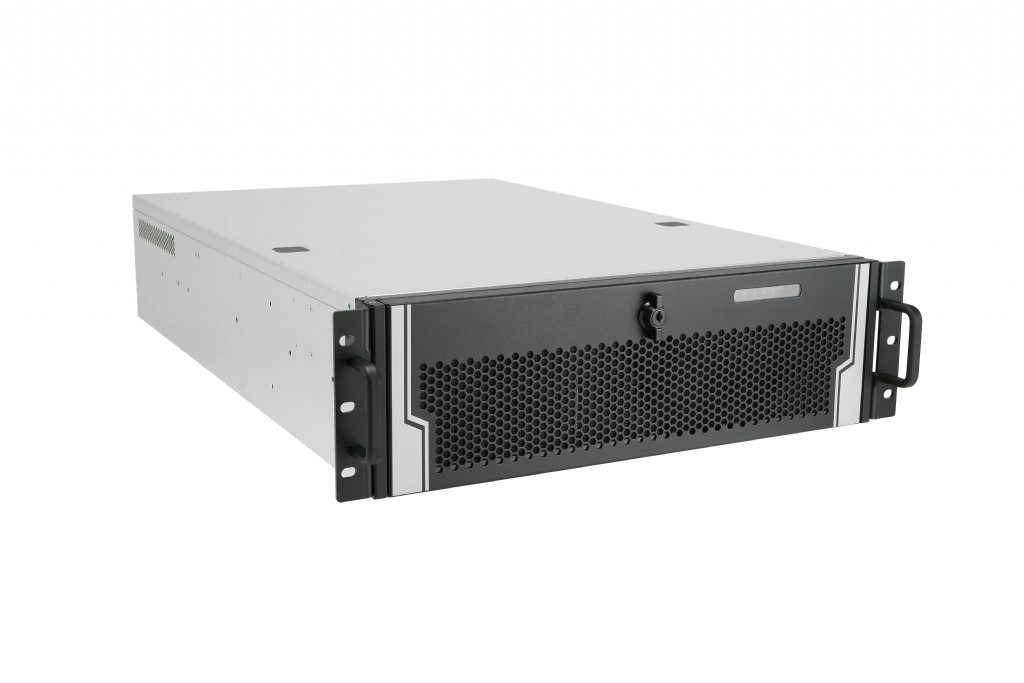

In-Win IW-R300-02N - 3U Feature Rich Server Chassis for CCTV Applications

In-Win IW-R300-02N - 3U Feature Rich Server Chassis for CCTV Applications
ex. VAT
inc. VAT)

Hurry, only 3 left in stock

Great news, we have 3 of this product in stock. Available for next working day delivery.

Want it delivered by 24th Jun 2021? Order within 1 hour and 1 minute and get it delivered the next working day as standard.
Select Options
Looking for Compatible Products?

Next working day delivery countdown


Order this product before 4.30pm today and get it delivered for FREE* on 24th Jun 2021.

* FREE Delivery on all orders over £100.00 to UK Mainland Only. Normal shipping charges apply outside UK Mainland.

Frequently bought together

In-Win IW-SK-23-02 - 3x 3.5
Single 2U 700W 80 Plus PSU
Single 2U 700W 80 Plus PSU
£96.99 ex VAT
(£116.39 inc VAT)
In-Win 28

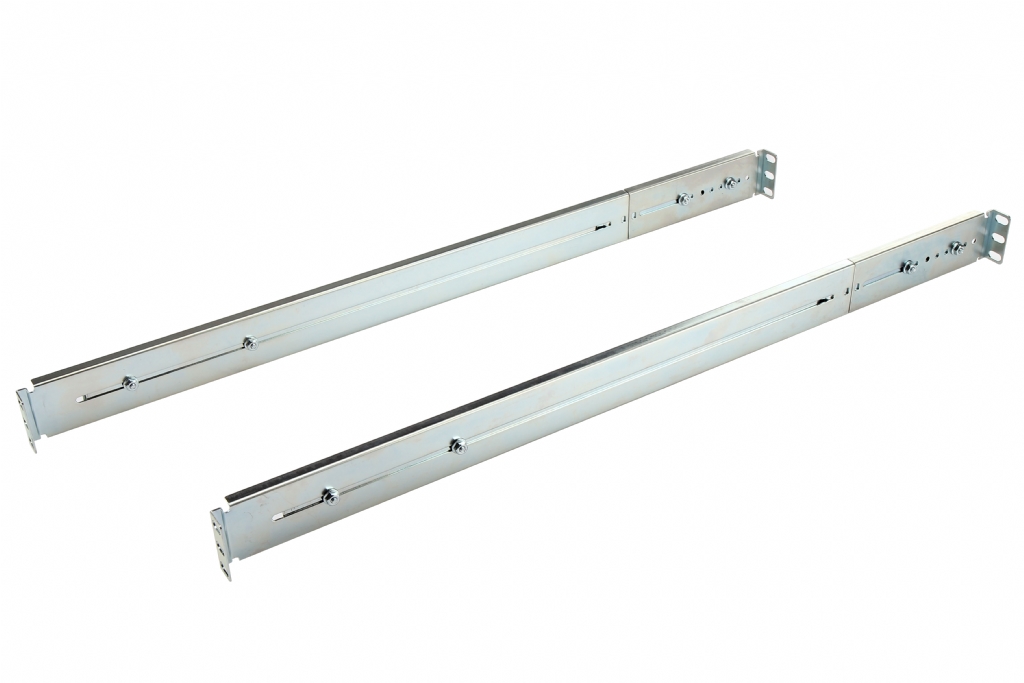

In-Win 28" Slide Rail Kit - Tool-Less Install
£48.99 ex VAT
(£58.79 inc VAT)
Single 2U 400W PSU
Single 2U 400W PSU
£69.99 ex VAT
(£83.99 inc VAT)

Features and Benefit

  • Compatitable with single or redundant power supply
  • Expandable storage option with two InWin storage kits
  • Supporting two rear fan to optimize thermal exhaust efficiency
  • Lockable front door for hardware security
  • Specially designed for surveillance DVR composition


Standard EIA-RS310D
M/B Form Factor ATX (12" x 9.6"), CEB (12" x 10.5"), EEB(12" x 13")
Dimensions (D x W x H)
w/o Front Door
660 x 482.6 x 133.4 mm (26" x 19" x 5.25")
Drive Bay External: 5.25" x 4,  2.5" Hot-swap x 2 (Optional)
Internal: 2.5" x 1
Power Supply Supports
▪ Form Factor: 2U Single or 2U 1+1 Redundant
▪ Watt: Single 500W , CRPS 550W/ 800W/ 1200W
Indicator Power Status, HDD, LAN Activity LEDs
Front Control Panel Power Switch, System Reset, USB 2.0 x 2
Chassis Security Intrusion Switch

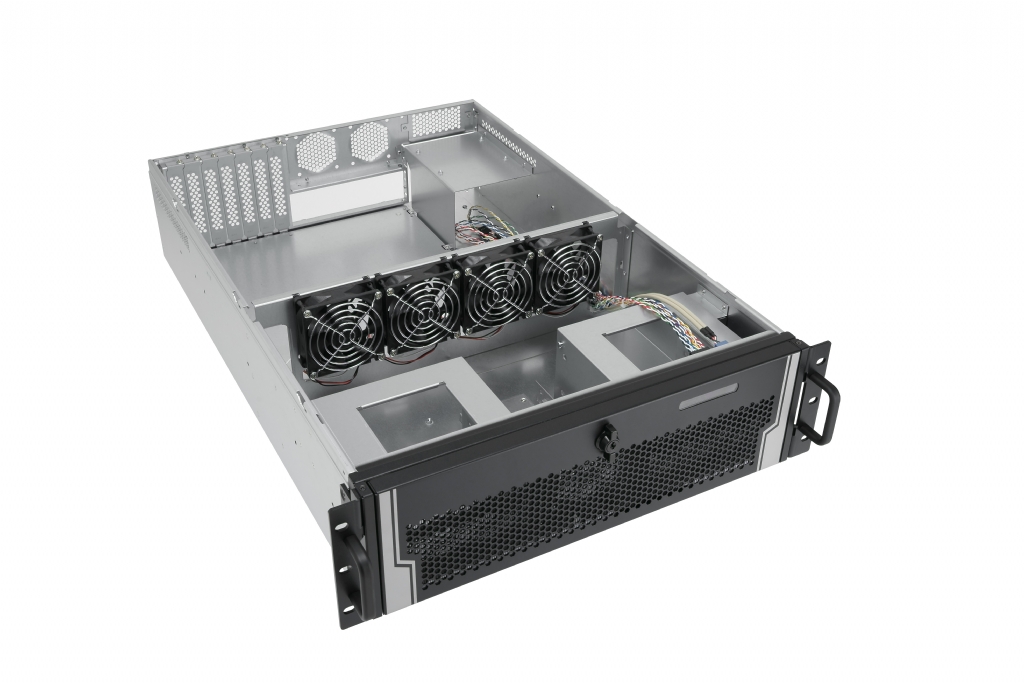

Cooling Fan Supports
▪ 80mm PWM Middle Fan x 4
▪  60 x 25 mm PWM Rear Fan x 2 (Optional)
Expansion Slot Full Height PCI Slot x 7
Material Material: SGCC
Thickness: 1.2 mm
Rail Kit Support 28" screwless slide rail, Ball-bearing
Packaging Dimensions
(D x W x H)
840 x 563 x 246 mm
Shipping Info. Net Weight: 7.6 kg
Gross Weight: 12 kg
Container Info. Single Packing:
20’: 168pcs
40’: 364pcs
40’HQ: 416pcs
