In-Win IW-R300N - 3U Feature Rich Short Depth Server Chassis

In-Win IW-R300N - 3U Feature Rich Short Depth Server Chassis

Part Code: IW-R300N


In-Win IW-R300N - 3U Feature Rich Short Depth Server Chassis
Click on a thumbnail below to view a larger image.
  • Photo 1
  • Photo 2
  • Photo 3
  • Photo 4
  • Photo 5
  • Photo 6
  • Photo 7
  • Photo 8
  • Photo 9
Note: We do our best to ensure that the photo's shown are of the current revision of each product, however please contact us if you need to confirm the cosmetic design shown is correct before ordering. The hardware components shown in the photo's are not included and are for illustrative purposes only, please call to confirm if in any doubt.

Product Description


  • Open-Bay 3U Server Chassis.
  • Compatitable with single or redundant power supply.
  • Supporting two rear fan to optimize thermal exhaust efficiency
  • Expandable storage option with In Win storage kit
  • Supports 60 x 25 mm rear fan x 2 for optimized cooling (optional)
  • Tool-less top cover for quick maintenance






M/B Form Factor

ATX (12" X9.6"), CEB (12" X10.5")

Dimensions (D x W x H)
w/ Front Door

508 x 482.6 x 133.4 mm (20" x 19" x 5.25")

Drive Bay

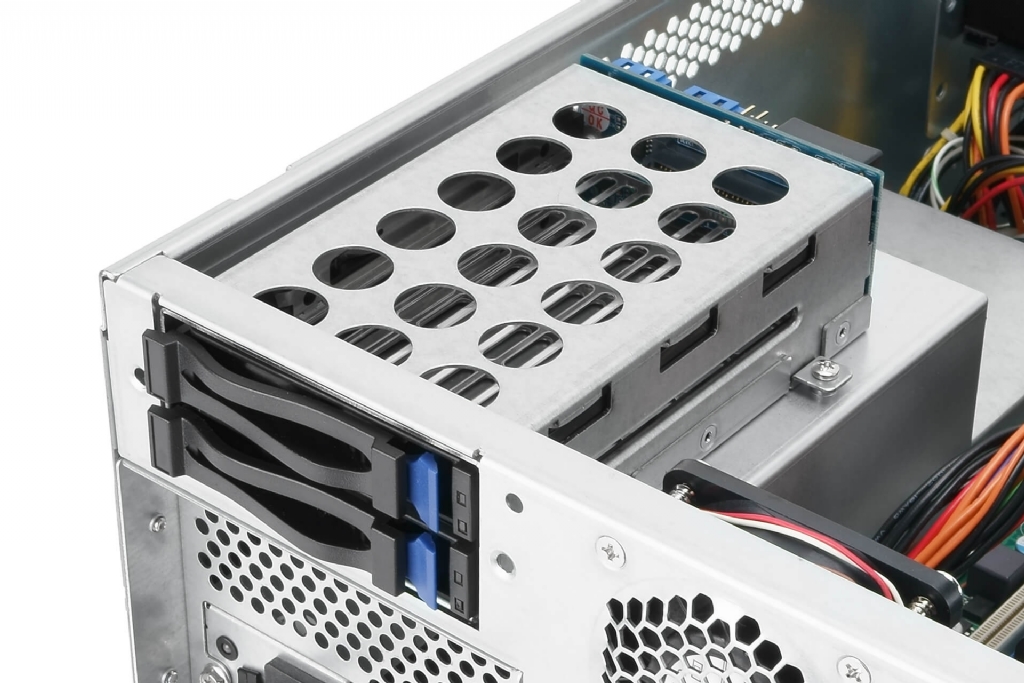

External: 5.25" x 2, 3.5" x 1, 2.5" Hot-swap x 2 (Optional)

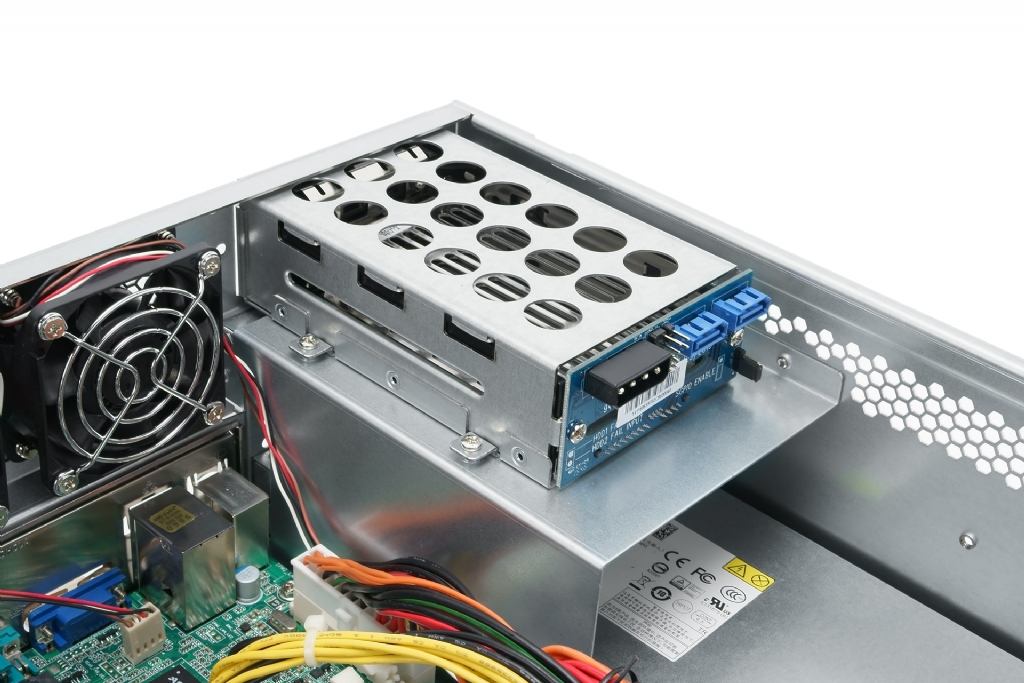

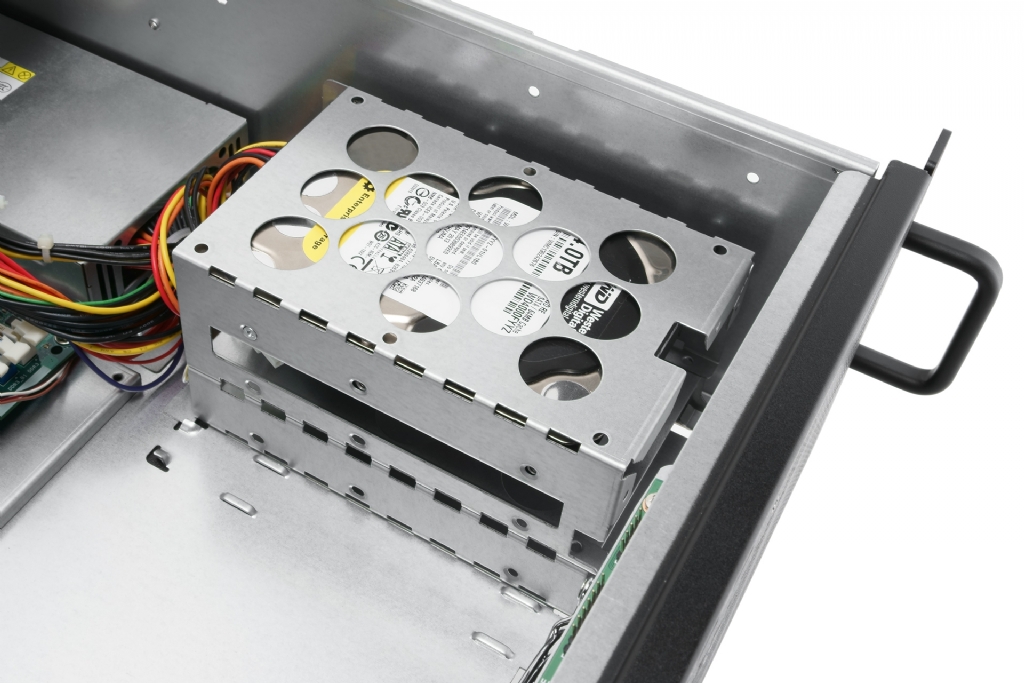

Internal: 3.5" x 6

Power Supply

Form Factor: Single 1U or 2U 1+1 Redundant (Not Included)


Power Status, HDD, LAN Activity LEDs

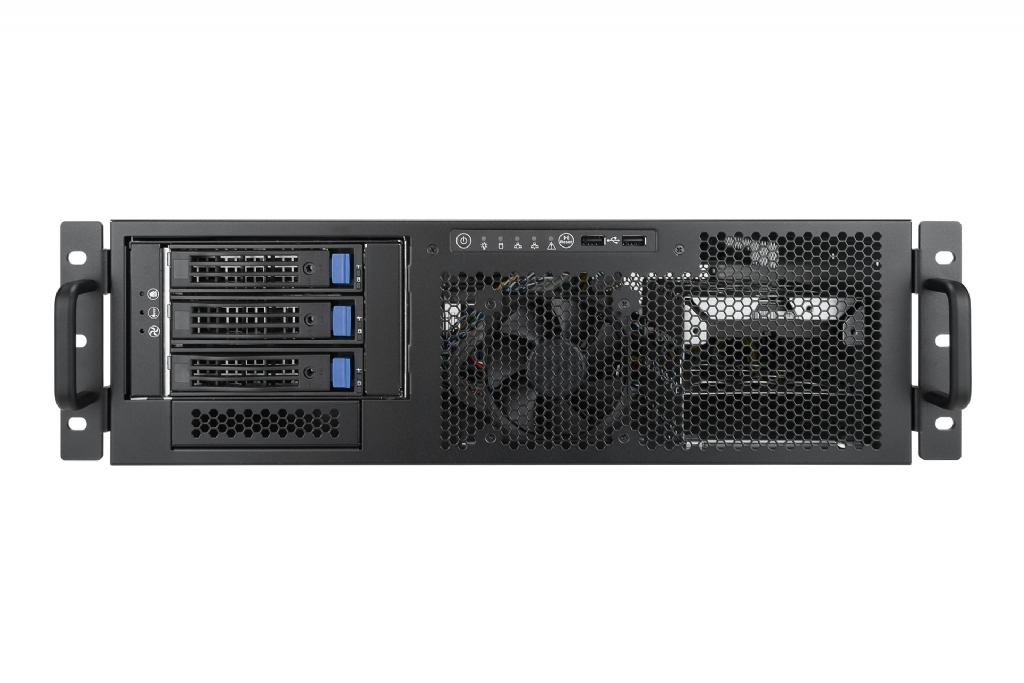

Front Control Panel

Power Switch, System Reset, USB 2.0 x 2

Chassis Security

Intrusion Switch

Cooling Fan

80 x 25 mm PWM Front Fan x 1

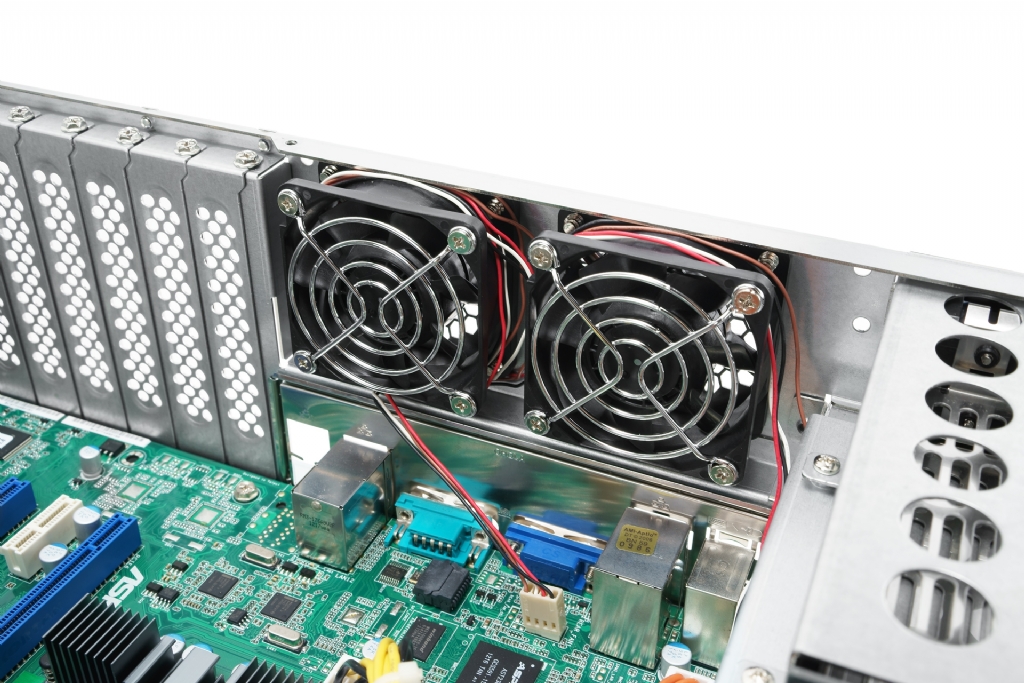

60 x 25 mm PWM Rear Fan x 2 (Optional)

Expansion Slot

Full Height PCI Slot x 7


Material: SGCC
Thickness: 1.2 mm

Rail Kit

Supports 28" Ball-bearing

Packaging Dimensions
(D x W x H)

690 x 595 x 258 mm

Shipping Info.

Net Weight: 8.5 kg
Gross Weight: 16.2 kg

Container Info.

Single Packing:
20’: 168pcs
40’: 350pcs
40’HQ: 400pcs

* The actual product is subject to change without prior notice.
In Win Development Inc. reserves the right to make final modifications.
* Above image for reference only. All hardware components are not included.
