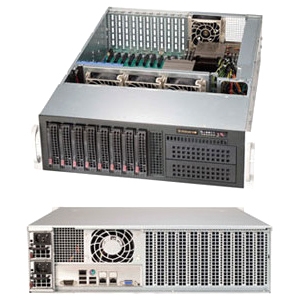

Supermicro SuperChassis 835XTQ-R982B (Black)

CSE-835XTQ-R982B

Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.

Looking for Compatible Products?

More from this brand

Product Description

Product SKUs

CSE-835XTQ-R982B	SuperChassis 835XTQ-R982B (Black)


Form Factor

3U chassis support for max. motherboard size - 15.2" x 13.2"


Processor Support

Supports dual, single Intel® / AMD processors


Dimensions

Height	5.2" (132mm)
Width	17.2" (437mm)
Depth	25.5" (648mm)
Gross Weight	75 lbs (34.0kg)
Available Colors	Black


Expansion Slots

• 11x expansion slots (7 Full-height Full-length, 4 Full-height Half-length)


Drive Bays

Hot-swap	8x 3.5" SAS / SATA Hot-swap drive trays SAS or enterprise SATA HDD only recommended


SAS / SATA Backplane

1x SAS/SATA Backplane with Enclosure Management


Peripheral Drives

DVD-ROM	Slim DVD-ROM Drive (optional)


Front Panel

Buttons	• Power On/Off button • System Reset button
LEDs	• Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED • Power fail LED


System Cooling

Fans	• 3x 80mm Hot-swap PWM Fans • 1x 80mm Rear-exhaust PWM Fans


System Monitoring

Chassis intrusion switch



Operating Environment (System)

Operating Temperature Range	5°C ~ 35°C (41°F ~ 95°F)
Non-Operating Temperature Range	-40°C ~ 60°C (-40°F ~ 140°F)
Operating Relative Humidity Range	8% ~ 90% (non-condensing)
Non-Operating Relative Humidity Range	5% - 95% (non-condensing)


Power Supply with Power Distributor

850W/980W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus
AC Input	100-140 V, 50-60 Hz, 11.5-6.5 Amp 180-240 V, 50-60 Hz, 6.5-4.5 Amp
DC Output	4 Amp @ +5V Standby 70 Amp @ +12V (100-140Vac) 81 Amp @ +12V (180-240Vac)
With Power Distributor	+5V: 30 Amp +3.3V: 28 Amp -12V: 0.6 Amp
Certification	Platinum Level [ Test Report ]


Regulatory (Power Supply)

Power Supply Safety / EMC	USA - UL listed Canada - CUL listed Germany - TUV Certified EN 60950/IEC 60950-Compliant CB Report CCC Certification
