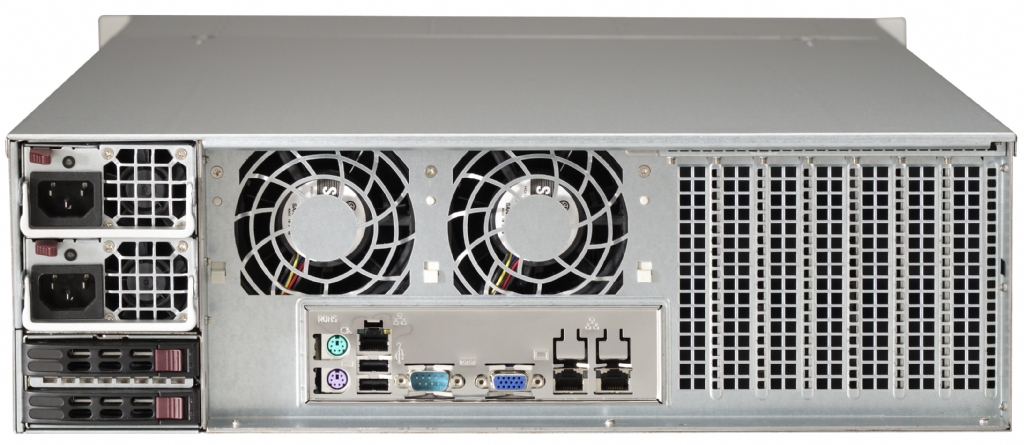

Supermicro SuperChassis 836BA-R1K28B (Black)

CSE-836BA-R1K28B
Supermicro SuperChassis 836BA-R1K28B (Black)
£1,011.19
ex. VAT
(£1,213.43
inc. VAT)
This product is ordered upon request on a 3 - 5 Days lead-time.
Quantity


Email me when in stock
Looking for Compatible Products?
Product SKUs - Discontinued SKU. Please contact sales-rep for possible OEM production quantities. MOQ may apply
CSE-836BA-R1K28B
  • SuperChassis 836BA-R1K28B

Form Factor
  • 3U chassis - supports for maximum motherboard sizes: 13.68" x 13" E-ATX and ATX

Processor Support
  • Dual and Single Intel® and AMD processors

Dimensions
Height
  • 5.2" (132 mm)
Width
  • 17.2" (437 mm)
Depth
  • 25.5" (647 mm)
Gross Weight
  • 72 lbs (32.66 kg)
Packaging (W x H x L)
  • 26.6" (676 mm) x 13" (330 mm) x 39.9" (1013 mm)
Available Color
  • Black

Expansion Slots
  • 7 full-height & full-length expansion slot(s)

Drive Bays
  • 16 x 3.5" hot-swap SAS/SATA drive bay with SES2

Backplane
  • 16-port 3U SAS 6Gbps direct-attached backplane, support up to 16x 3.5-inch SAS/SATA HDD/SSD

Peripheral Drives
  • Optional 1 x Slim DVD-ROM Drive
  • Optional 1 x slim 1.44MB Floppy Drive

Front Panel
Buttons
  • Power On/Off button
  • System Reset Button
LEDs
  • 2 Network Activity LEDs
  • HDD activity LED
  • Power LED
  • Power Fail LED
  • System Overheat LED
Ports
  • 2x USB & DB9 COM port tray
Motherboard (for CSE- 836BA-R1K28B)
X9DR7-TF+ X9DRE-TF+
X9DR3-F X9DRi-F
X9DR7-LN4F (-JBOD) X9DRE-LN4F
X9DRH-7F X9DRH-7TF
X9DRH-iF X9DRH-iTF
X9DRD-7LN4F-JBOD X9DRD-EF
X9DRD-7LN4F X9DB3-TPF
X9DB3-F X9DBi-TPF
X9DBi-F X9DRH-iF-NV
X10DRi-LN4+ X10DRi-T4+
X10DRi X10DRi-T
X10DAi X10DAC
X10DAX


Systems Cooling
Fans
  • 3 x 80mm Hot-swap PWM Fans
  • 2 x 80mm rear hot-swap exhaust PWM fan(s)

System Monitoring
  • Chassis intrusion switch

Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply
1U 1280W Redundant Platinum 95%+ Super Quiet Power Supply with PMbus
Power Efficiency
  • 95%
Total Output Power and Input
  • 1000W with Input 100 - 140Vac
  • 1280W with Input 180 - 240Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 336 x 76 x 40 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 83A / Min: 0.5A (100Vac - 140Vac)
  • Max: 106.7A / Min: 0.5A (180Vac - 240Vac)
+5Vsb
  • Max: 4A / Min: 0A
Power Distributor
  • PDB-PT826-8824
  • O/P: 12V/135A
  • +5V Max: 40A
  • +3.3V Max: 24A
  • -12V Max: 0.6A
Certification
  • Platinum Certified  Platinum Certified

Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class B
  • TUV/CB
  • UL/CUL
Standard Parts List
  Part Number Qty Description
Air Shroud MCP-310-39001-0N 1 SC835/836/936 Intel DP X9-X10 PC air shroud 1368x13/12x13MB
HD Backplane BPN-SAS-836A 1 16-port 3U SAS 6Gbps direct-attached backplane, support up to 16x 3.5-inch SAS/SATA HDD/SSD
Cable(S) CBL-0071L 1 CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,75CM,28AWG
CD-ROM & Accessory MCP-290-00007-01 1 Black DVD dummy cover for SC825, 836
Fan(s) FAN-0125L4 2 80x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing
Fan(s) FAN-0126L4 3 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing
Drive Tray(s) MCP-220-00007-01 1 Black USB/COM port tray for SC825, 836
Drive Tray(s) MCP-220-00075-0B 16 Black gen 5.5 hot-swap 3.5"; HDD tray
Power Distributor PDB-PT826-8824 1 PDB with longer 24pin for SC826B
Part(s) MCP-290-83601-0V 1 set Silver chassis handles (left and right) for SC836/835
Power Supply & Accessory PWS-1K28P-SQ 2 1U 1280W, redundant single output power supply
Mounting Rail(s) MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2";W
Mounting Rail(s) MCP-410-00007-0N 1 Rail screw bag
Rear Window MCP-240-83605-0N 1 836B chassis rear window (to support the optional MCP-220-83605-0N)

Optional Parts List
  Part Number Qty Description
HDD Kit MCP-220-81504-0N - 12G 2.5-in Hot-swap Slim Floppy Size Drive Kit w/Status LED
HDD Kit MCP-220-81506-0N - 12G 2.5-in Hot-swap Slim DVD Size Drive Kit with Status LED
HDD Kit MCP-220-83605-0N - Rear 2 X 2.5 Hot swap HDD kit for 836B/835B
HDD Kit MCP-220-83608-0N - 12G Rear 2.5x2 Hot-swap HDD kit w/ Status LED for 836B/835B
Drive Trays MCP-220-00118-0B - Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH
DVD-ROM / DVD-RW DVM-TEAC-DVDRW-SBT4 - BLACK TEAC SLIM DVD-RW SATA DRIVE,RoHS
DVD-ROM / DVD-RW DVM-TEAC-DVD-SBT4 - BLACK TEAC SLIM DVD ROM SATA DRIVE,HF,RoHS/REACH
DVD-ROM / DVD-RW DVM-PNSC-DVD-SBT3 - BLACK PANASONIC SLIM DVD ROM SATA DRIVE,HF,RoHS/REACH
SATA DVD Kit MCP-220-81502-0N - Slim SATA DVD mounting kit for SC213,219,813,815,818,819,825,828,829,836,842
Front Bezel MCP-210-83601-0B - Black Front Bezel Assembly for SC836/837
Cable Management Arm MCP-290-00073-0N - Supermicro Cable Management Arm for 2U, 3U and 4U chassis
Cable CBL-0296L - 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
Rail MCP-290-00058-0N - Short rail set, quick release, 19.6"~26.9" Extendable Length
