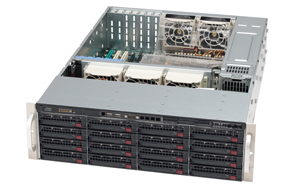

Supermicro SuperChassis 836TQ-R800B (Black)

CSE-836TQ-R800B

Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.

Looking for Compatible Products?

More from this brand

Product Description

Product SKUs

CSE-836TQ-R800V	SuperChassis 836TQ-R800V (Silver): OEM only *
CSE-836TQ-R800B	SuperChassis 836TQ-R800B (Black)


Form Factor

3U chassis support for max. motherboard size - 13.68" x 13"


Processor Support

Supports dual, single Intel® / AMD processors


Dimensions

Height	5.2" (132mm)
Width	17.2" (437mm)
Depth	25.5" (648mm)
Gross Weight	72 lbs (32.7kg)
Available Colors	Black, Silver (OEM) *


Expansion Slots

• 7x full-height full-length expansion slots


Drive Bays

Hot-swap	16x 3.5" SAS / SATA Hot-swap drive trays SAS or enterprise SATA HDD only recommended


Backplane

3U Direct Attached Backplane, features: • 3Gb/6Gb support • SES-2 Enclosure Management Support • SAS/SATA support • 16 SATA connectors


Peripheral Drives

DVD-ROM	Slim DVD-ROM Drive
Floppy	Slim 1.44MB Floppy Drive (Optional)


Front Panel

Buttons	• Power On/Off button • System Reset button
LEDs	• Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED • Power fail LED
Ports	2x USB Ports & DB9 COM Port


System Cooling

Fans	• 3x 80mm Hot-swap PWM Fans • 2x 80mm Rear-exhaust Fans


System Monitoring

Chassis intrusion switch



Operating Environment (System)

Operating Temperature Range	5°C ~ 35°C (41°F ~ 95°F)
Non-Operating Temperature Range	-40°C ~ 60°C (-40°F ~ 140°F)
Operating Relative Humidity Range	8% ~ 90% (non-condensing)
Non-Operating Relative Humidity Range	5% - 95% (non-condensing)


Power Supply and Distributor

800W (1 + 1) Redundant AC-DC high-efficiency power supply w/ PFC
AC Voltage	100 - 240V, 50-60Hz, 10-4 Amp
+5V standby	4 Amp
+12V	66 Amp
With Power Distributor	+5V: 30 Amp +3.3V: 24 Amp -12V: 0.6 Amp


Regulatory (Power Supply)

Power Supply Safety / EMC	USA - UL listed Canada - CUL listed Germany - TUV Certified EN 60950/IEC 60950-Compliant CB Report CCC Certification


Standard Parts List

	Part Number	Qty	Description
Chassis	CSE-836TQ-R800V CSE-836TQ-R800B	1 1	3U Chassis (Silver): OEM * 3U Chassis (Black)
Backplane	BPN-SAS-836TQ	1	3U SAS / SATA Direct attached Backplane
Cable(s)	CBL-0078 CBL-0087 CBL-0139L CBL-0180L-01	1 1 1 1	45cm Round Floppy Cable 20" 16-pin to 16-pin Round Ribbon Cable 50cm DVD-ROM Cable SATA Cable Set
Drive Tray(s)	MCP-220-00024-0V(B) BPN-SAS-836TQ	16 1	Silver SATA Hard Drive Carriers (0B = Black) SAS / SATA Backplane [ Manual ]; passed SAS-2 compatibility testing
Fan(s)	FAN-0125L4 FAN-0126L4	2 3	80x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing
Front USB Kit	MCP-220-0007-00	-	2-Port Front USB Kit
Mounting Rails	MCP-290-00053-0N	1	26.5" to 36.4" rail set, quick/quick, default for 2U, 3U 17.2" W chassis
Rail Adaptor	MCP-290-00060-0N	1	Square hole to round hole rail adaptor set
Peripheral Drives	DVM-PNSC-DVD-SBT2	1	Black Panasonic slim DVD ROM SATA drive
Power	PWS-801-1R PDB-PT825-8824	2 1	801-1R 800W Power Supply Power Distributor
Air Shroud	MCP-310-38001-0N	1	SC835/836/936 Intel DP X8.X7 PC Air Shroud


Optional Parts List

	Part Number	Qty	Description
Cable	CBL-0084 CBL-0157L	- -	Split Front Panel Cable 8-pin to 8-pin Ribbon Cable for SGPIO (For Additonal Drives)
Cable (2.5" OS drive)	CBL-0044L CBL-0082L CBL-0296L	- - -	61cm, SATA S-S Y Split SATA Power Adapter 4-pin fan extension cord, 9" length
Cable Management Arm	MCP-290-00073-0N	-	Supermicro Cable Management Arm for 2U, 3U and 4U chassis (Extendable Length: 70mm to 830mm)
Heatsink / Retention	-	-	Please refer to our Thermal Components Matrix
Mounting Rails	MCP-290-00058-0N	-	19" to 26.6" rail set, Quick Release, Tool-less
Peripheral Drives	FPD-TEAC-SV(B) CSE-PT91L MCP-220-00043-0N MCP-220-83601-0B MCP-290-00015-03(01) MCP-290-00007-03(01)	- - - - - -	Silver slim TEAC floppy drive (B = Black) Slim Floppy Drive Kit 3.5" convert to 2.5" HDD Tray Black FDD dummy tray, supports 1x 2.5" HDD (9.6mm thick) Silver FDD dummy cover (01 = Black) Silver DVD-ROM drive dummy cover (01 = Black)
Peripheral Drives	DVM-TEAC-824B DVM-TEAC-DVD-SBT2 DVM-PNSC-DVD-SBT2 MCP-220-81502-0N	- - - -	Black slim IDE DVD (8x DVD, 24x CDR), TEAC Black slim SATA DVD (8x DVD, 24x CDR), TEAC Black slim SATA DVD (8x DVD, 24x CDR), Panasonic Slim SATA DVD kit (include backplane, cable)
Trays	MCP-220-83601-0B MCP-290-00036-0B MCP-220-00023-01	- - -	Black FDD dummy tray, supports 1x 2.5" slim HDD (9.6mm thick) Black DVD dummy tray, supports 1x 2.5" slim HDD (9.6mm thick) Black USB dummy tray, supports 1x 2.5" slim HDD (9.6mm thick)
Front Bezel ( Compatibility Table )	MCP-210-83601-0B	-	Front Bezel Cover, Black (optional)
LCD/OLED Solutions	-	-	Please reference the LCD/OLED Display Solutions for details
Adaptor HDD carrier	MCP-220-00043-0N	-	Adaptor HDD carrier to install 2.5" HDD in 3.5" HDD tray

* = For OEMs Only - Minimum quantity required. Please contact your Supermicro Sales representative for additional details.
