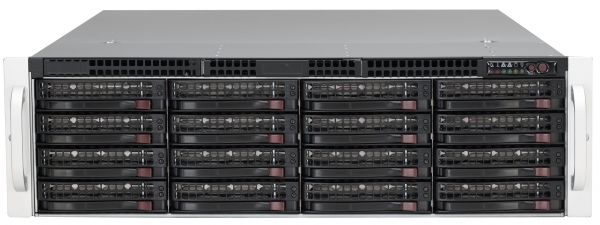

Supermicro SuperChassis 837E16-RJBOD1 (Black)

CSE-837E16-RJBOD1

Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.

Looking for Compatible Products?

More from this brand

Product Description

Product SKUs

CSE-837E16-RJBOD1	SuperChassis 837E16-RJBOD1 (Black)


Form Factor

3U Storage Chassis support up to 28x 3.5" HDD


Dimensions

Height	5.2" (132mm)
Width	17.2" (437mm)
Depth	25.5" (648mm)
Gross Weight	72 lbs (32.7 kg)
Available Colors	Black


Drive Bays

Storage Chassis	28x (16 front + 12 rear) 3.5" Hot-swap HDD bays; direct hot-swap access to all HDDs SAS or enterprise SATA HDD only recommended


Backplane

Single expander SAS/SATA backplane supports 28 SAS/SATA hard drives (16x front + 12 rear)


Front Panel

Buttons	Power On/Off button System Reset button
LEDs	Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED


System Cooling

Fans	3x 8cm hot-swap cooling fans Redundant cooling


System Monitoring

Chassis intrusion switch



Operating Environment (System)

Operating Temperature Range	5°C ~ 35°C (41°F ~ 95°F)
Non-Operating Temperature Range	-40°C ~ 60°C (-40°F ~ 140°F)
Operating Relative Humidity Range	8% ~ 90% (non-condensing)
Non-Operating Relative Humidity Range	5% - 95% (non-condensing)


Power Supply
1620W high-efficiency redundant power supply w/ PMBus
AC Input	1000W Output @ 100-120V, 12-10A, 50-60Hz 1200W Output @ 120-140V, 12-10A, 50-60Hz 1620W Output @ 180-240V, 10.5-8A, 50-60Hz
DC Output	1000W: +12V/84A; +5Vsb/4A 1200W: +12V/100A; +5Vsb/4A 1620W: +12V/150A; +5Vsb/4A
Certification	Platinum Certified [ Test Report ]


Regulatory (Power Supply)

Power Supply Safety / EMC	USA - UL listed, FCC Canada - CUL listed Germany - TUV Certified Europe/CE Mark EN 60950/IEC 60950-Compliant
