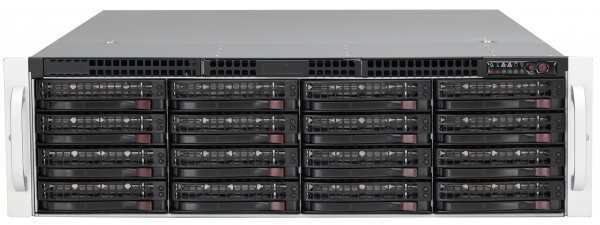

Supermicro SuperChassis 837E26-RJBOD1 (Black)

CSE-837E26-RJBOD1
Supermicro SuperChassis 837E26-RJBOD1 (Black)
£1,498.31
ex. VAT
This product is currently out of stock. We are expecting stock in Ordered On Request
Quantity





Product SKUs
CSE-837E26-RJBOD1
  • SuperChassis 837E26-RJBOD1 (Black)

Form Factor
3U Storage Chassis support up to 28x 3.5" HDD

Dimensions
Height
  • 5.2" (132mm)
Width
  • 17.2" (437mm)
Depth
  • 25.5" (648mm)
Gross Weight
  • 72 lbs (32.7 kg)
Available Colors
  • Black

Drive Bays
Storage Chassis
  • 28x (16 front + 12 rear) 3.5" Hot-swap HDD bays; direct hot-swap access to all HDDs
  • SAS or enterprise SATA HDD only recommended

Backplane
Dual expander SAS/SATA backplane supports 28 SAS/SATA hard drives (16x front + 12 rear)

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED
System Cooling
Fans
  • 3x 8cm hot-swap cooling fans
  • Redundant cooling

System Monitoring
Chassis intrusion switch

Operating Environment (System)
Operating Temperature Range
  • 5°C ~ 35°C (41°F ~ 95°F)
Non-Operating Temperature Range
  • -40°C ~ 60°C (-40°F ~ 140°F)
Operating Relative Humidity Range
  • 8% ~ 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply
1620W high-efficiency redundant power supply w/ PMBus
AC Input
  • 1000W Output @ 100-120V, 12-10A, 50-60Hz
  • 1200W Output @ 120-140V, 12-10A, 50-60Hz
  • 1620W Output @ 180-240V, 10.5-8A, 50-60Hz
DC Output
  • 1000W: +12V/84A; +5Vsb/4A
  • 1200W: +12V/100A; +5Vsb/4A
  • 1620W: +12V/150A; +5Vsb/4A
Certification Platinum Level Certified94%+    Platinum Certified
  Test Report ]

Regulatory (Power Supply)
Power Supply Safety / EMC
  • USA - UL listed, FCC
  • Canada - CUL listed
  • Germany - TUV Certified
  • Europe/CE Mark
  • EN 60950/IEC 60950-Compliant
