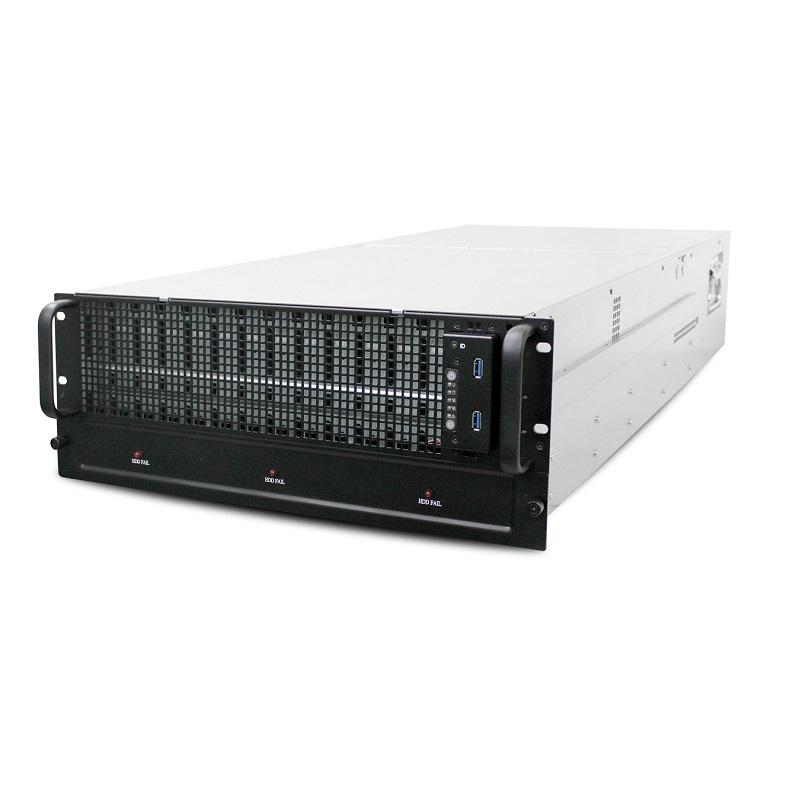

4U 12G 60 x 3.5" + 2 x 2.5" Rear H/Swap O/S & 6x SATA+4x NVMe Rear Module with 1600W H/Swap Red�t Platinum PSU Enterprise Server Storage Chassis
RSC-4H-R1600-12G-1Call/Email/Live Chat our sales team for availability, we look forward to hearing from you.
Key Features
• High density storage server chassis
• Tool-less design for easy maintenance:
- 60 Tool-less top-loading 3.5” drive trays with built-in light pipe for drive status LED
- Tool-less top cover
- Tool-less drive backplane sliding mechanism
- Tool-less rails
• Hot swap cooling fans and 80+ redundant power supply

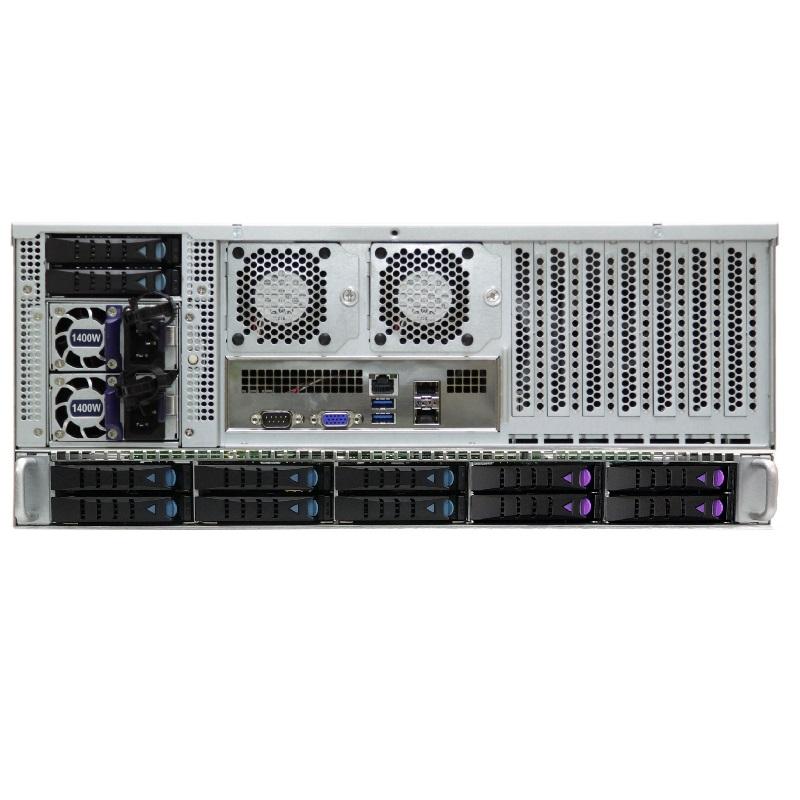

• Supports up to 2 x 2.5” hot swap drives for OS
• 6 x 2.5" SATA (Additional Purpose)
• 4 x NVMe
• Supports single drive power cycle setting
Features And Benefits
IPC-C4H-R1400-12G-1 is a high performance 4U 12G 60-Bay high density storage server chassis with tool-less design features. Unlike a standard 4U 60 bay server storage chassis, the IPC-C4H-R1400-12G-1 supports 60 top-loading, 2 x 2.5" ideally for the rear OS 3.5”, 6 x 2.5" SATA for additional use and 2 x NVMe drives. This version of the IPC-C4H family is suited for both high density and cold storage and can be used across a wide scope of applications.
Dimensions (W x D x H) (with chassis ears)
• mm : 483 x 950 x 176
• inches : 19 x 37.4 x 6.9
Industry Standard
EIA-RS310D
Material
Heavy-duty preplated SPGC cold-rolled steel
Color
Front Panel : Black
Cooling
• Middle : 4 x 80x38mm PWM & low-power consumption hot swap fans
• Rear : 2 x 60x38mm PWM easy swap fans
Power Supply
• Standard : 1600W 1+1 redundant PSU 80+ Platinum
Expansion Slots
7 full height

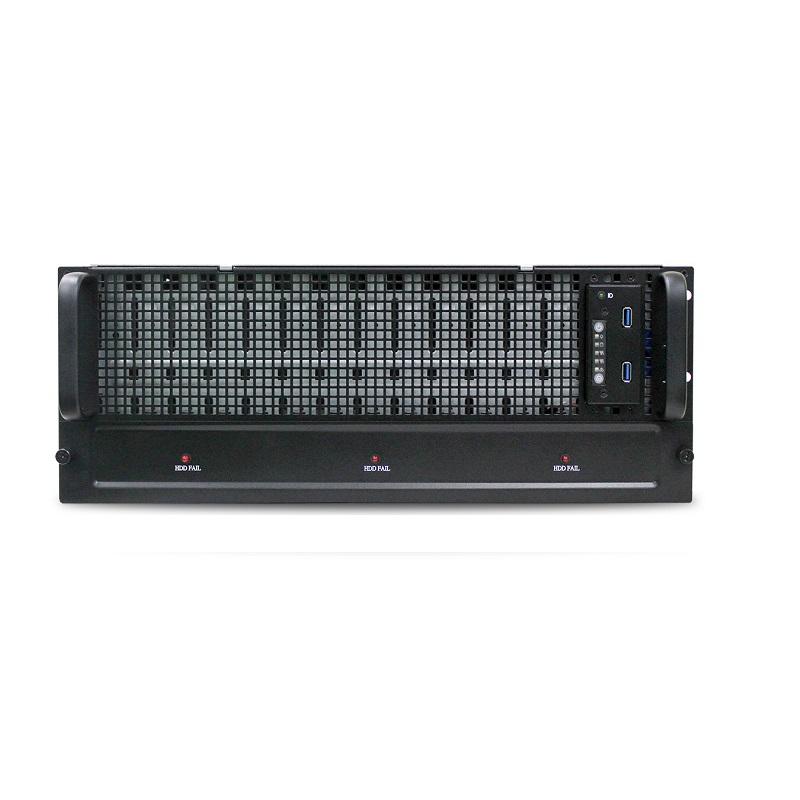

Front Panel
• System power on/off
• System reset
• 2 x USB 3.0 ports
LED Indicators
• System Power
• LAN
• Drive
• Alert
System Board
12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB
Drive Bays
External : 2 x 2.5” hot swap + 6 For Additional Purpose (i.e. Cache)

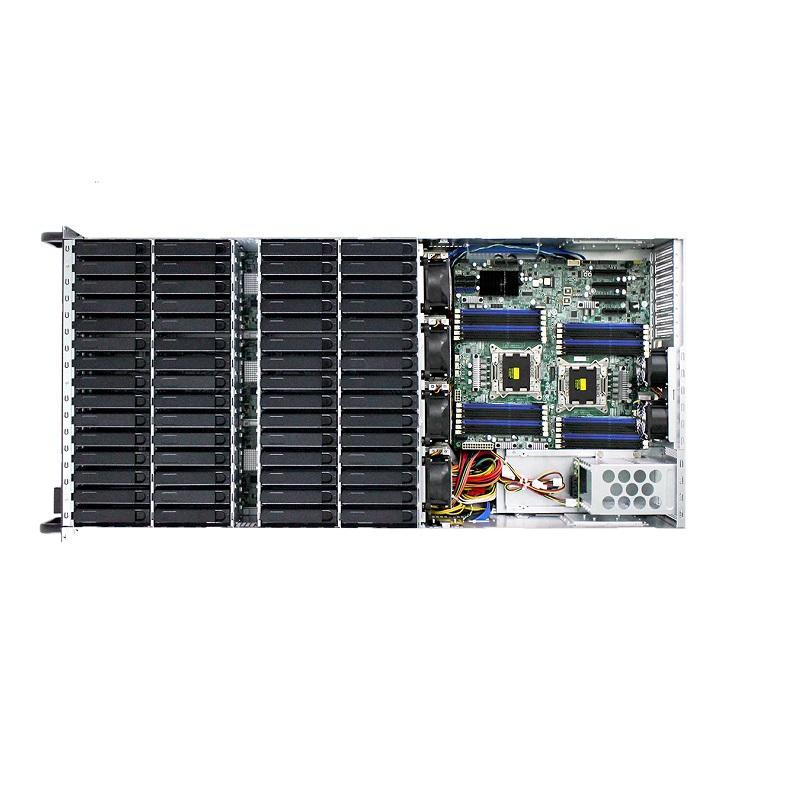

Internal : 60 x 3.5” hot swap
Backplanes
3 x 20-port 12Gb SAS backplanes with 28-PHY expander chip and 2 SFF-8643 connectors on each
Storage Temperature
0°C(32°F) ~ 50°C(122°F)
Humidity
5% ~ 95% non-condensing
Gross Weight (w/ PSU & Rail) (excluding pallet)
• kgs : 47
• lbs : 103.6
Package Dimension (W x D x H)
• mm : 593 x 1121 x 386
• inches : 23.3 x 44.1 x 15.2
Cubic Feet
8.8
Container Load Quantity
• 20’ : 97
• 40’ : 199
• 40’ H : 240
Mounting
Standard : 25” tool-less slide rail
