Technical Details | ||
---|---|---|

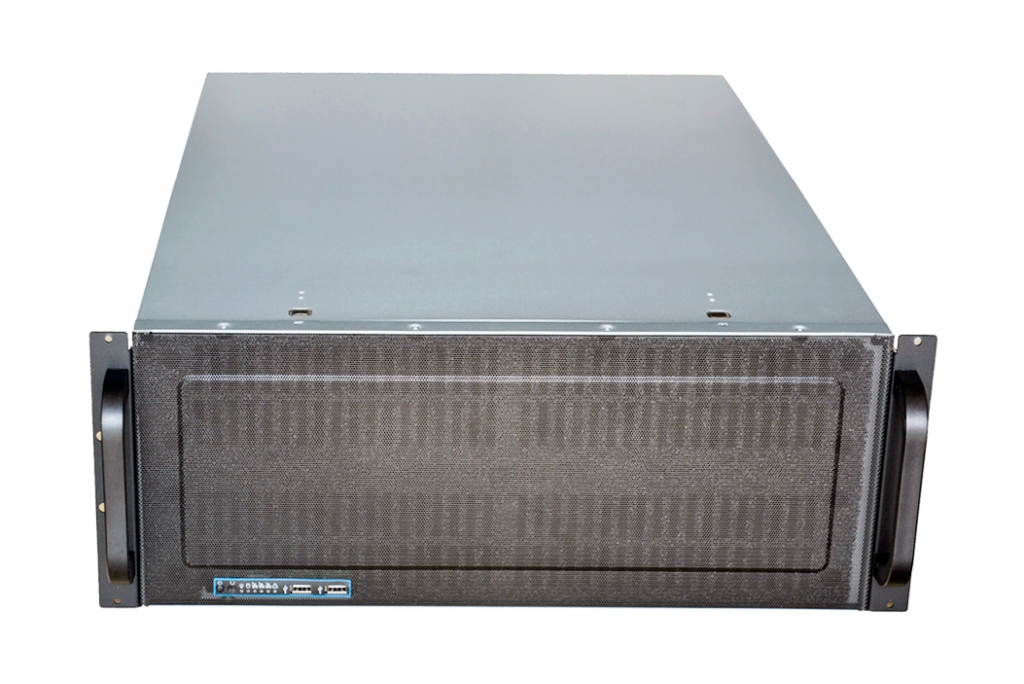

Case Form Factor | 4U Rackmount | |
Motherboard Compatibility | Support EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6"), ITX (6.7" x 6.7") | |
Drive Bays |
External 5.25" |
3 |
External 3.5" | 0 | |
Internal 3.5" | 10 | |

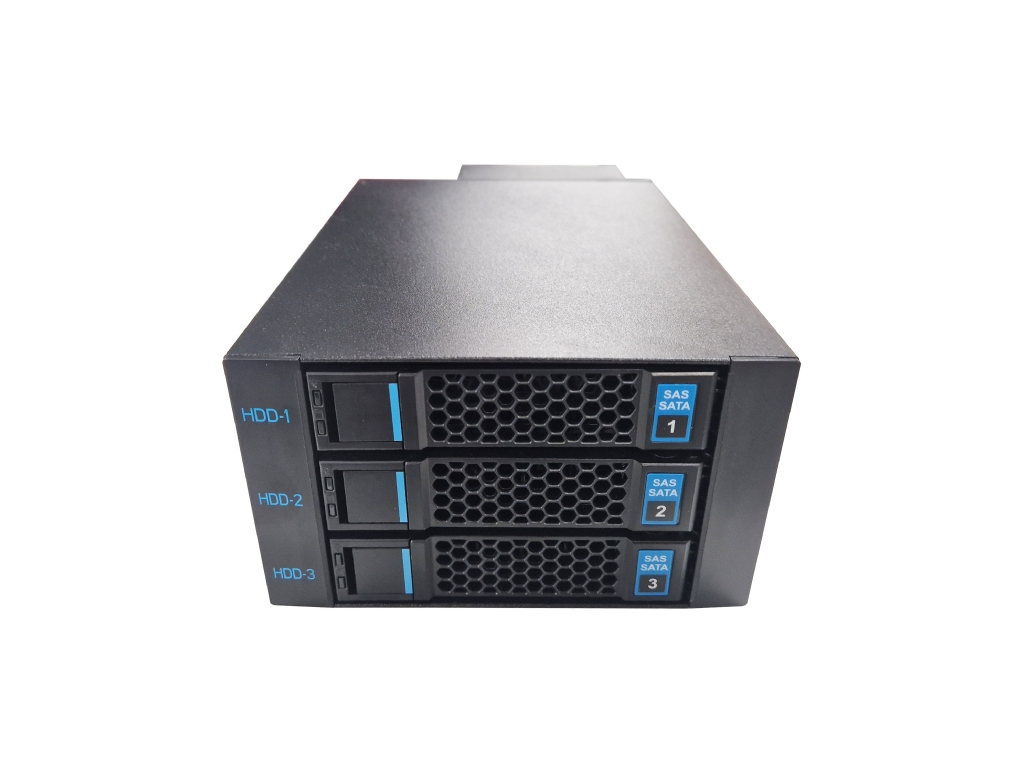

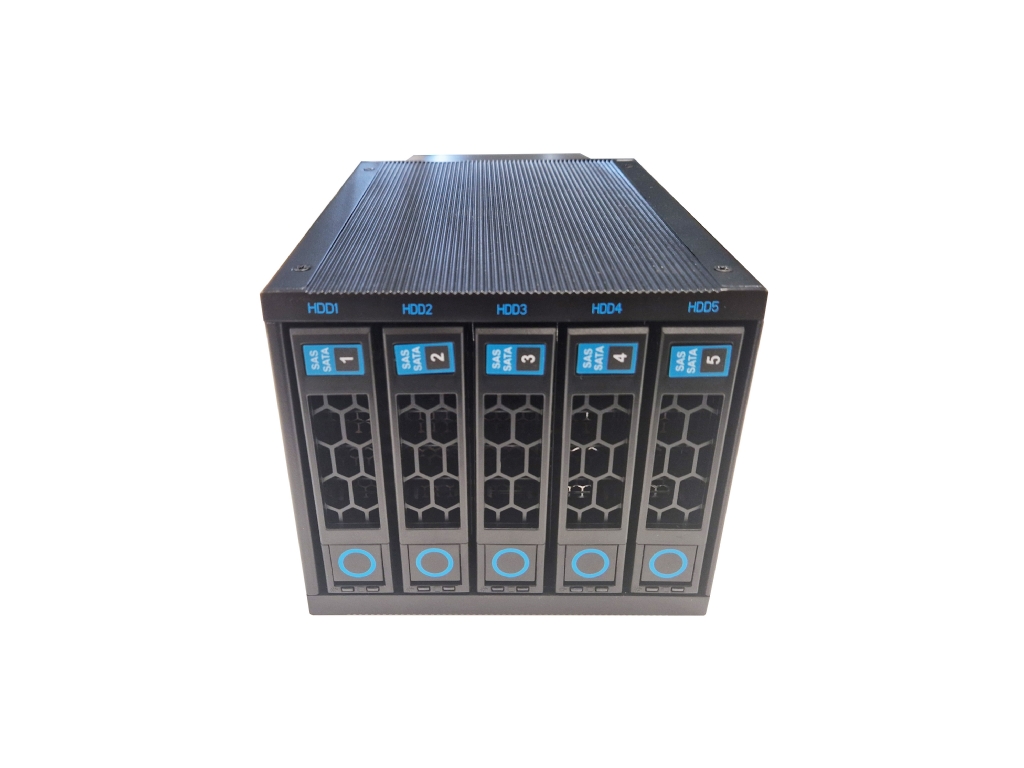

Internal 2.5" | Additional 3 x 3.5" Hot Swap HDD available using SC-H300 in the 2 x 5.25" Drives or 5 x 3.5" Hot Swap HDD available using SC-H500 in 3 x 5.25" | |
Hotswap 3.5" | 0 | |
Hotswap 2.5" | 0 | |
Slim Optical | 0 | |
Slim FDD | 0 | |
Hot-Swap Backplane | Not Applicable | |
Expansion Slots | Full Height | 7 |
Low Profile | 0 | |
Cooling | 2 x 120mm front Fans, 3 x 120mm Hot Swap Middle Fans and 2 x 80mm rear ball bearing exhaust fans. 4x 80mm fan wall optional | |
Power Supply Form Factor | Standard ATX PS2, Mini Redundant and 3U Redundant. (Also 2U redundant requires bracket SC-BKT-004) | |
Front Panel Connectors, Switches & Indicators | Power Switch | YES |
Reset Switch | YES | |
USB 2.0 | 2 | |
USB 3.0 | 0 | |
Serial | 0 | |
Indicators | Power, LAN, and HDD LEDs | |
Colour | Black | |
Material | SGCC | |
Dimensions & Weights | ||
Packaging | Single Box | |
Dimensions | ( W x D x H ): 19" x 26.9" x 7" (483mm x 650mm x 176mm) Fits standard 19" rack cabinet. | |
Weight | 16 kg (Approx) | |
What's Included | ||
|
There are currently no downloads available for this product. If you need a specific document, such as a manual, installation guide or datasheet please contact us and we would be happy to help.
