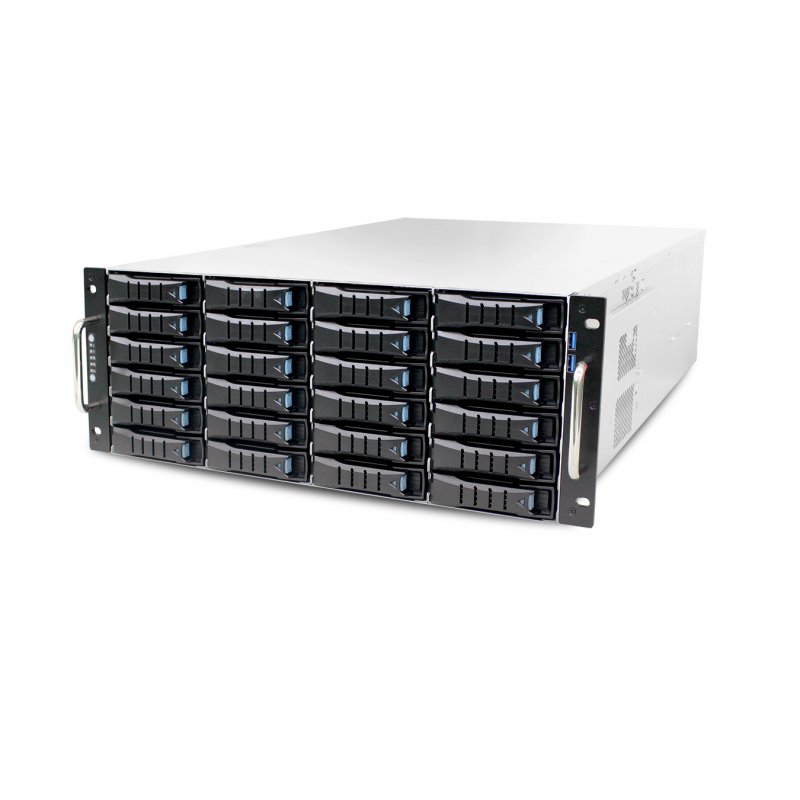

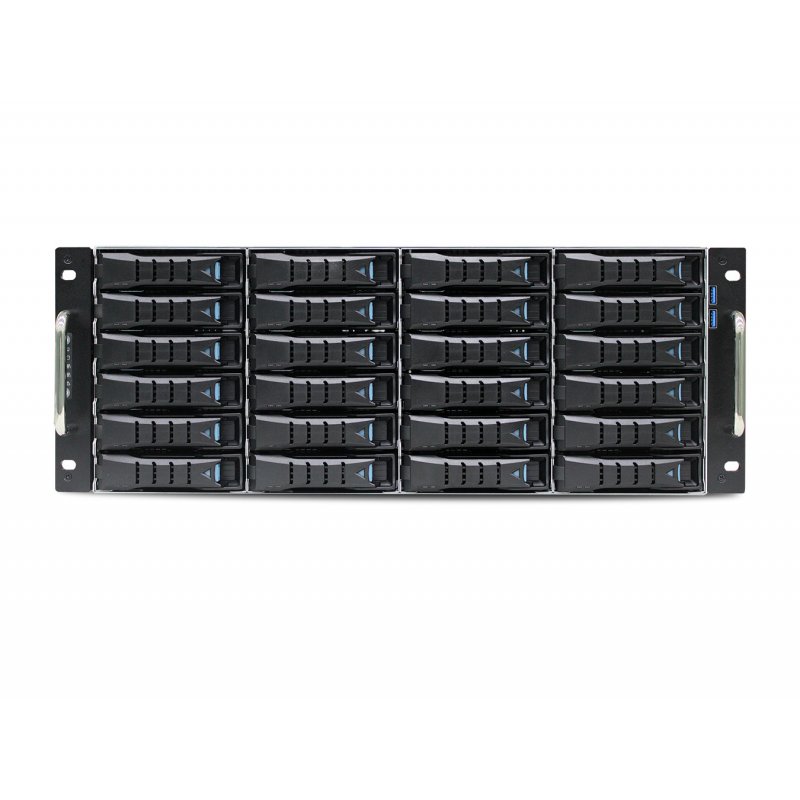

The IPC-C4ET-R12-EOB-12G is a T series 4U 24-bay SAS/SATA storage server chassis. With its tool-less 3.5" and 2.5" hard drive carriers, top covers and backplane, the IPC-C4ET-R12-EOB-12G supports quick installation and easy maintenance. This tool-less design solution also features 3 x hot swap fans designed to minimize rotational vibration and SPGC pre-plated steel with minimal paint, offering a cost-effective solution ideally suited for a broad range of applications.
Dimensions (W x D x H) (with chassis ears)
• mm : 483 x 680 x 176
• inches : 19 x 26.8 x 6.9
Industry Standard
EIA-RS310D
Material
Heavy-duty preplated SGCC cold-rolled steel
Color
Front Panel : Black
Cooling
Middle : 3 x 120x25mm PWM hot swap fans
Power Supply
1200W 1+1 redundant PSU 80+ Platinum
Expansion Slots
7 full height
Front Panel
• Power on/off
• System reset
• 2 x USB 3.0 port
LED Indicators
• Power
• LAN
• Drive
• Alert
System Board
12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB
Drive Bays
• External : 24 x 3.5” hot swap + 2 x 2.5” Rear Hot-Swap
Backplane
1 x 24-port 12Gb SAS backplane with 36-PHY expander chip and 3 SFF-8643 connectors
Storage Temperature
0°C(32°F) ~ 50°C(122°F)
Humidity
5% ~ 95% non-condensing
Gross Weight (w/ PSU & Rail)
• kgs : 30
• lbs : 66.14
Package Dimension (W x D x H)
• mm : 590 x 885 x 373
• inches : 23.2 x 34.8 x 14.7
Cubic Feet
6.56
Container Load Quantity
• 20’ : 145
• 40’ : 298
• 40’ H : 358
Mounting
Standard : 28” tool-less slide rail
* All specifications are subject to change without notice.
