Product Description
Key features

• Tool-less design supports quick installation and easy maintenance:
- Tool-less 3.5” & 2.5” drive trays
- Tool-less top covers
- Tool-less backplane
- Tool-less slide rails
• 12Gb/s SAS expander chip on backplane
• Specially designed hot swap and low power consumption fans minimize rotational vibration and provide superior cooling
• 3.5” drive tray comes with 4 screw holes to adapt to 2.5” drive
• Two front access USB 3.0 port
• Comes with a 80+ Platinum redundant PSU
• Short depth design to meet special requirement

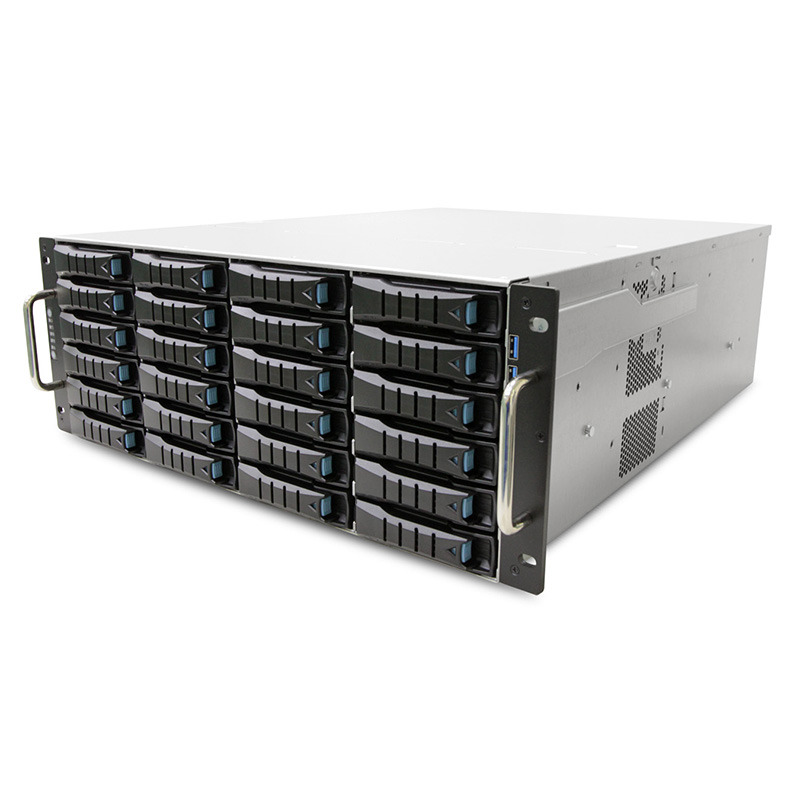

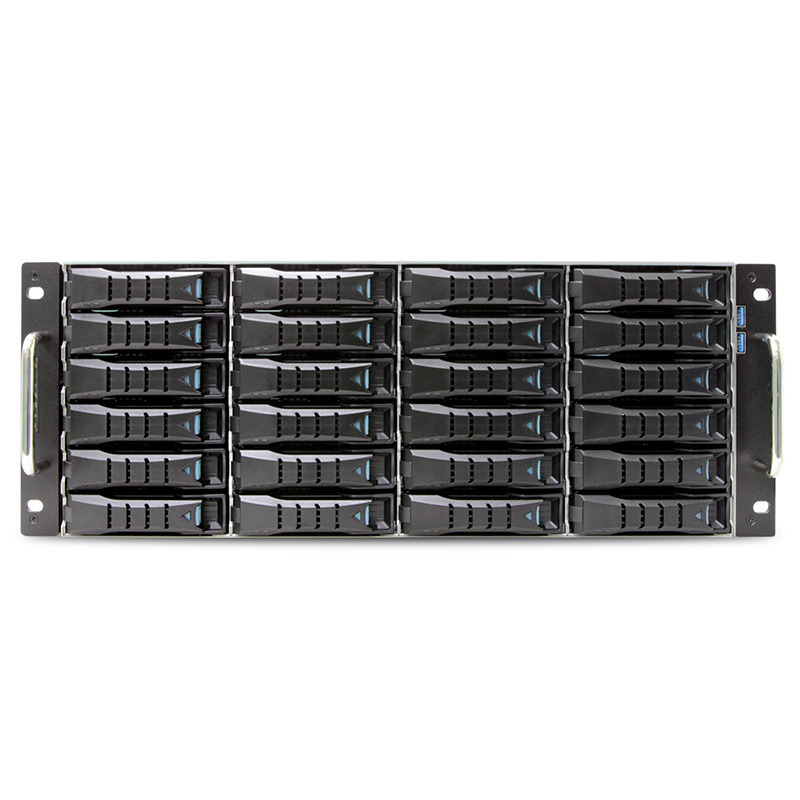

The IPC-C4ETS-R8-EOB-12G is a T series 4U 24-bay SAS/SATA storage server chassis. With its tool-less 3.5" and 2.5" hard drive carriers, top covers and backplane, the IPC-C4ETS-R8-EOB-12G supports quick installation and easy maintenance. This tool-less design solution also features 3 x hot swap fans designed to minimize rotational vibration and shorter depth dimension, offering a cost-effective solution ideally suited for a broad range of applications.


Dimensions (W x D x H) (with chassis ears)
• mm : 483 x 560 x 176
• inches : 19 x 22 x 6.9

Industry Standard

Heavy-duty preplated SGCC cold-rolled steel

Front Panel : Black

Standard :
• Middle : 3 x 120x25mm PWM hot swap fans

Power Supply
Standard :
• 800W 1+1 redundant PSU 80+ Platinum

Expansion Slots

Front Panel
• Power on/off
• System reset
• 2 x USB 3.0 port

LED Indicators
• Power
• LAN
• Drive
• Alert

System Board
12”(W) x 9.6”(D) ATX MB

Drive Bays
• External : 24 x 3.5” hot swap
• Internal : 1 x 2.5”
(upgradeable to 2 x 2.5” hot swap with optional kit)

1 x 24-port 12Gb SAS backplane with 36-PHY expander chip and 3 SFF-8643 connectors

Storage Temperature
0°C(32°F) ~ 50°C(122°F)

5% ~ 95% non-condensing

Gross Weight (w/ PSU & Rail)
• kgs : 28.4
• lbs : 62.6

Package Dimension (W x D x H)
• mm : 590 x 885 x 373
• inches : 23.2 x 34.8 x 14.7

Cubic Feet

Container Load Quantity
• 20’ : 145
• 40’ : 298
• 40’ H : 358

Standard : 28” tool-less slide rail
