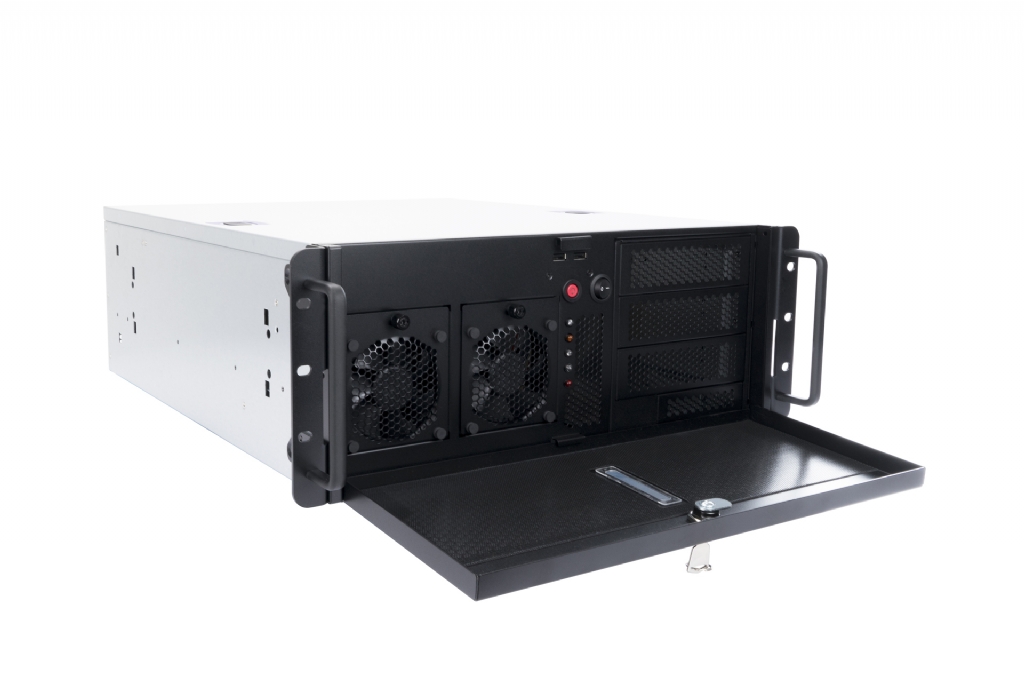

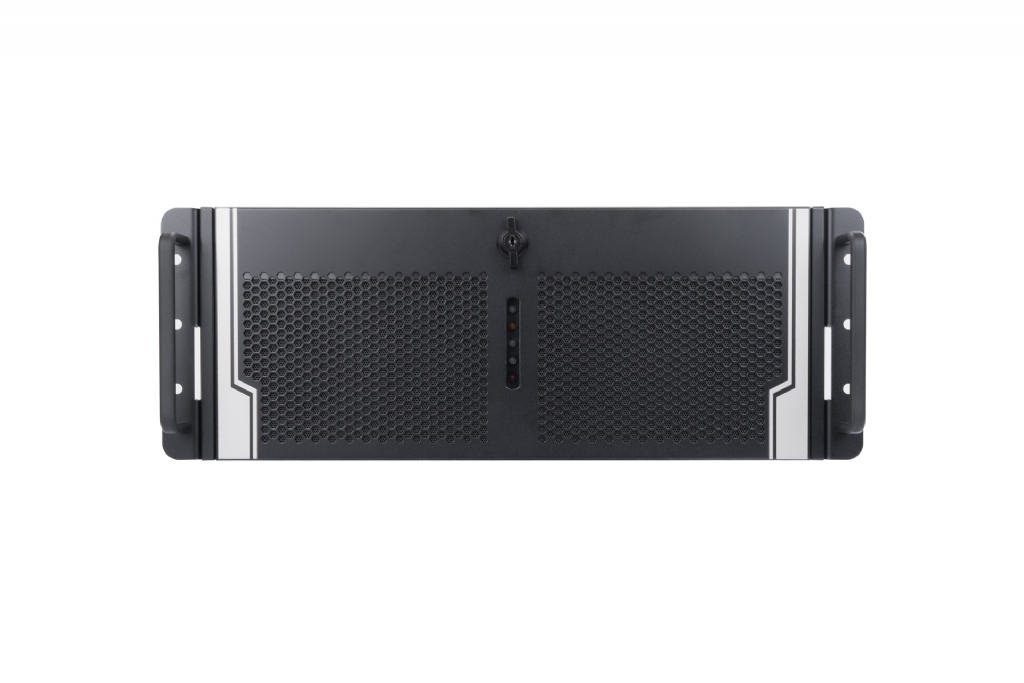

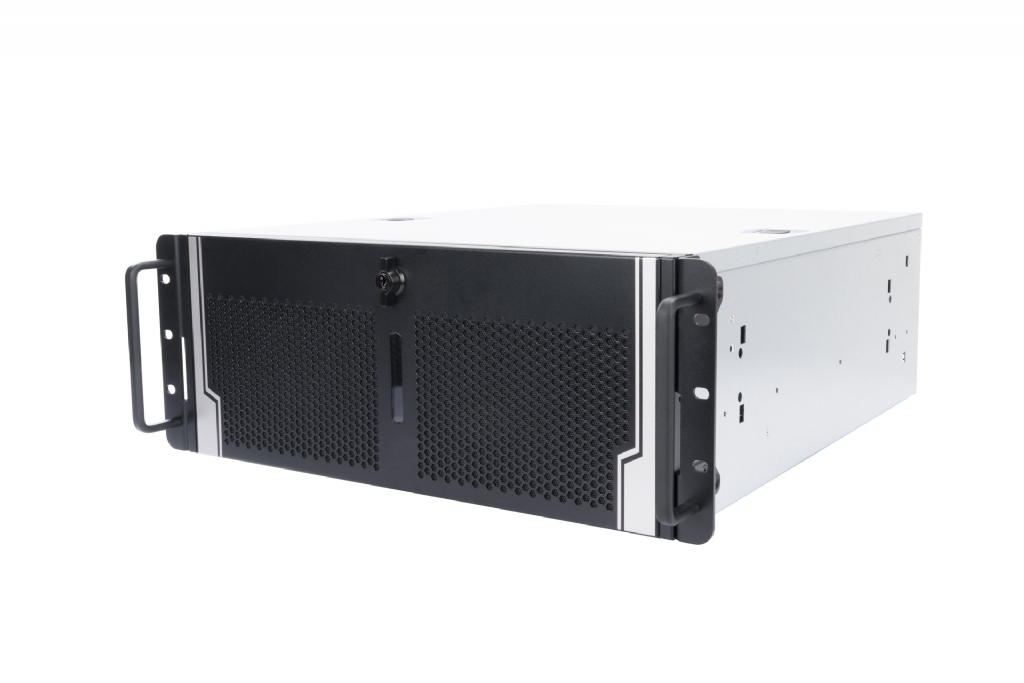

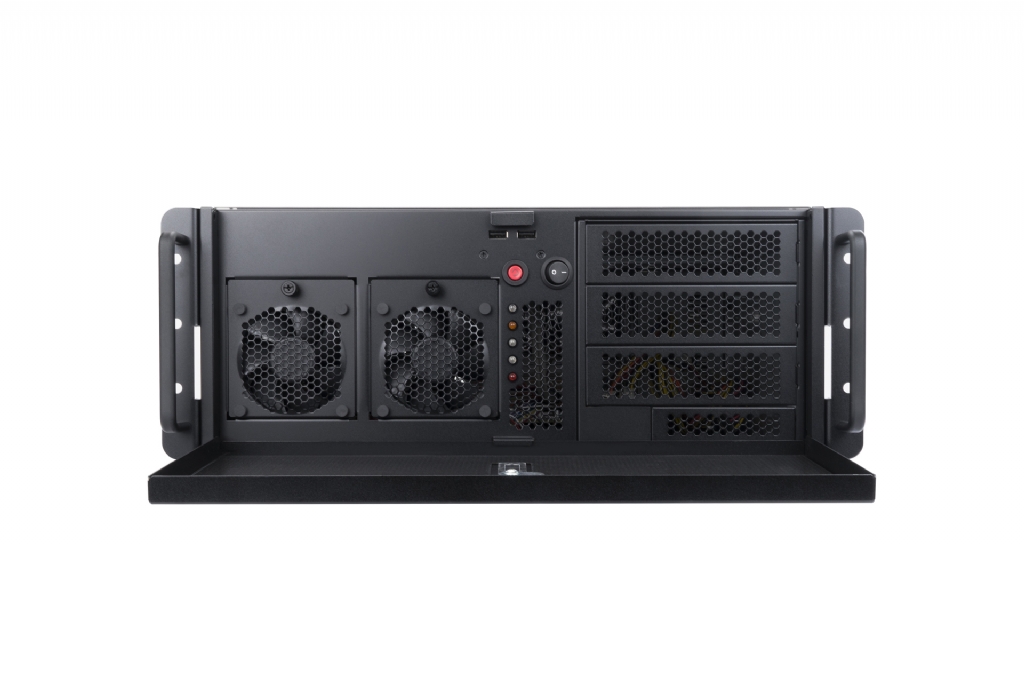

In-Win IW-R400-01N - 4U Rack Server Chassis for Extended Motherboards w/ Lockable Door - Ideal for CCTV Applications

IW-R400-01N
In-Win IW-R400-01N - 4U Rack Server Chassis for Extended Motherboards w/ Lockable Door - Ideal for CCTV Applications
£156.41
ex. VAT
(£187.69
inc. VAT)
This product is currently out of stock.
Call/Email/Live Chat our sales team for availability, we look forward to hearing from you.
Select Options
Quantity


Email me when in stock
Looking for Compatible Products?

Frequently bought together

In-Win 23
In-Win 23" King Slide Rail, Ball-Bearing
£40.50 ex VAT
(£48.60 inc VAT)
3U Short Depth Chassis w/ 3 x 5.25
3U Short Depth Chassis w/ 3 x 5.25" drive bays
£54.99 ex VAT
(£65.99 inc VAT)
4U Short Chassis 10x 3.5
4U Short Chassis 10x 3.5" HDD + 3 x 5.25" Bays
£63.99 ex VAT
(£76.79 inc VAT)
SC-02A 3.5
SC-02A 3.5" to 2 x 2.5" Converter
£2.95 ex VAT
(£3.54 inc VAT)

Features

  • Open-Bay 4U Server Chassis.
  • Compatible with standard PS2 or redundant power supply.
  • Convertible to tower with chassis stands
  • Supports 80 x 25 mm Front Fan x 2
  • Expandable storage option with In Win storage kit
  • Tool-free cover for easy installation and quick maintenance



Specifications




Standard

EIA-RS310D

M/B Form Factor

ATX (12" x 9.6"), CEB (12" x 10.5"), EEB(12" x 13")*
*The bottom 5.25 drive bay space should be reserved for the EEB motherboard installation.

Dimensions (D x W x H)
w/ Front Door

525 x 482.6 x 178 mm (20.7" x 19" x 7")

Drive Bay

External: 5.25" x 3, 3.5" x 1
Internal: 3.5" x 4, 2.5" x 1

Power Supply

Supports
Form Factor: PS2 or 1+1 Mini-Redundant
Watt: PS2 up to 600W, Mini-Redundant up to 500W

Indicator

Power Status, HDD, LAN Activity LEDs

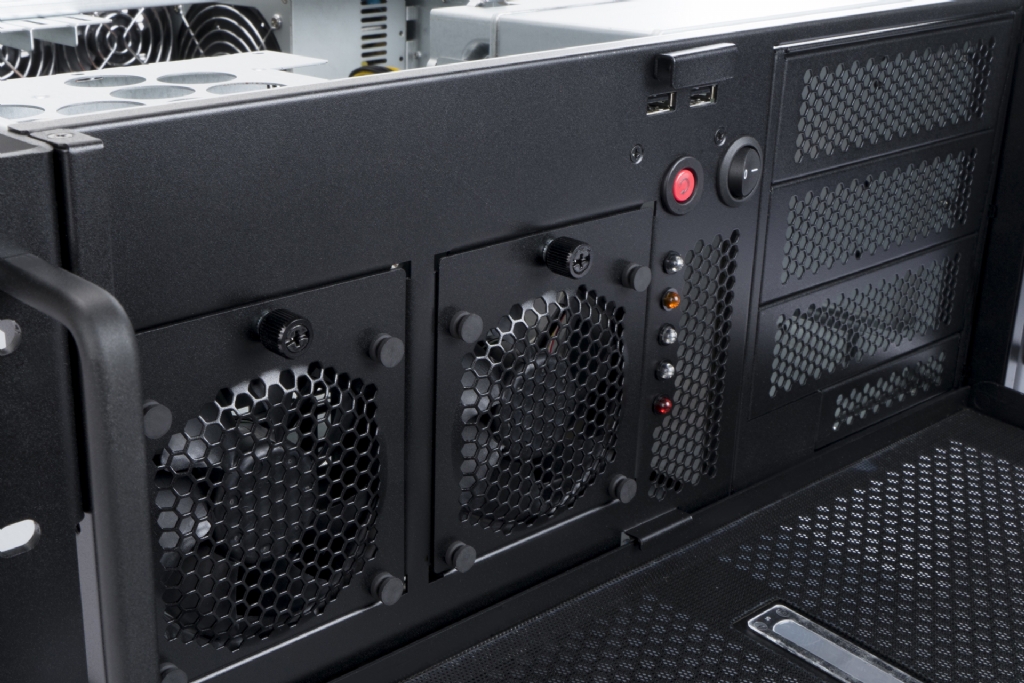

Front Control Panel

Power Switch, System Reset, USB 2.0 x 2

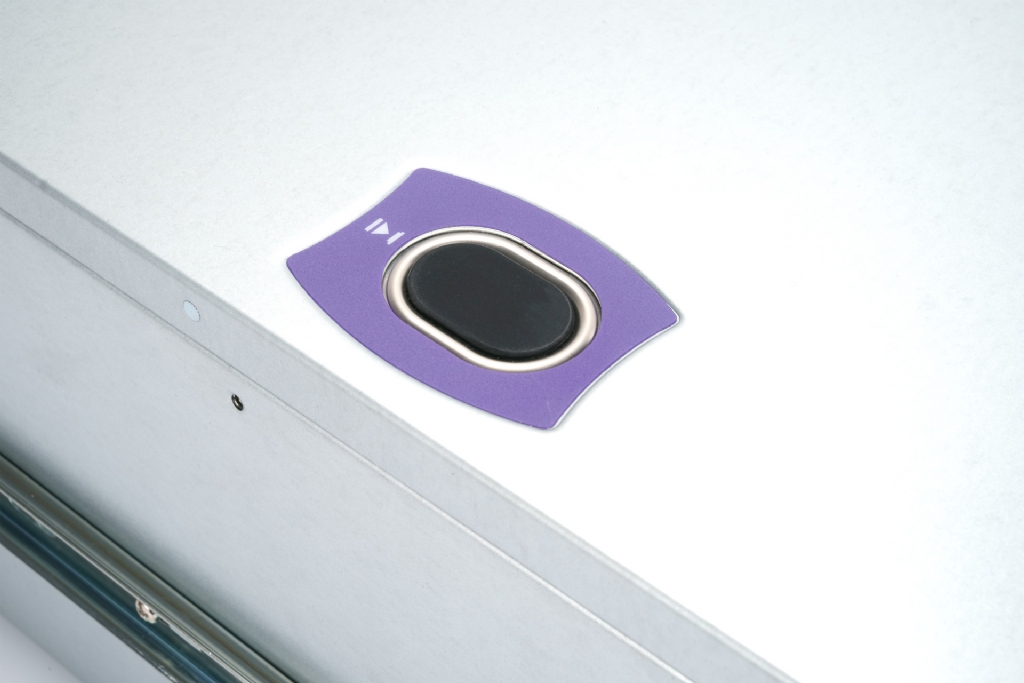

Chassis Security

Intrusion Switch

Cooling Fan

Supports
80 x 25 mm Front Fan x 2
80 x 25 mm PWM Rear Fan x 2 (optional)

Expansion Slot

Full Height PCI Slot x 7

Material

Material: SGCC
Thickness: 1.2 mm

Rail Kit

Supports 28" Ball-bearing

Packaging Dimensions
(D x W x H)

720 x 640 x 340 mm

Shipping Info.

Net Weight: 12.3 kg
Gross Weight: 17.8 kg

Container Info.

Single Packing:
20’: 189pcs
40’: 378pcs
40’HQ: 420pcs

* The actual product is subject to change without prior notice.
In Win Development Inc. reserves the right to make final modifications.
* Above image for reference only. All hardware components are not included.
