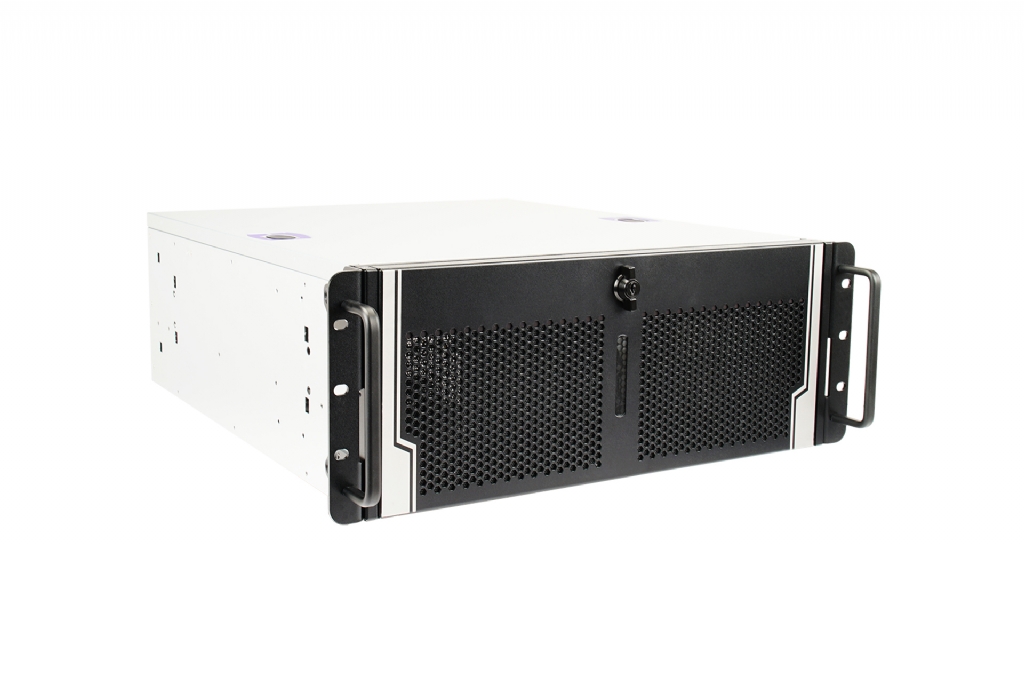

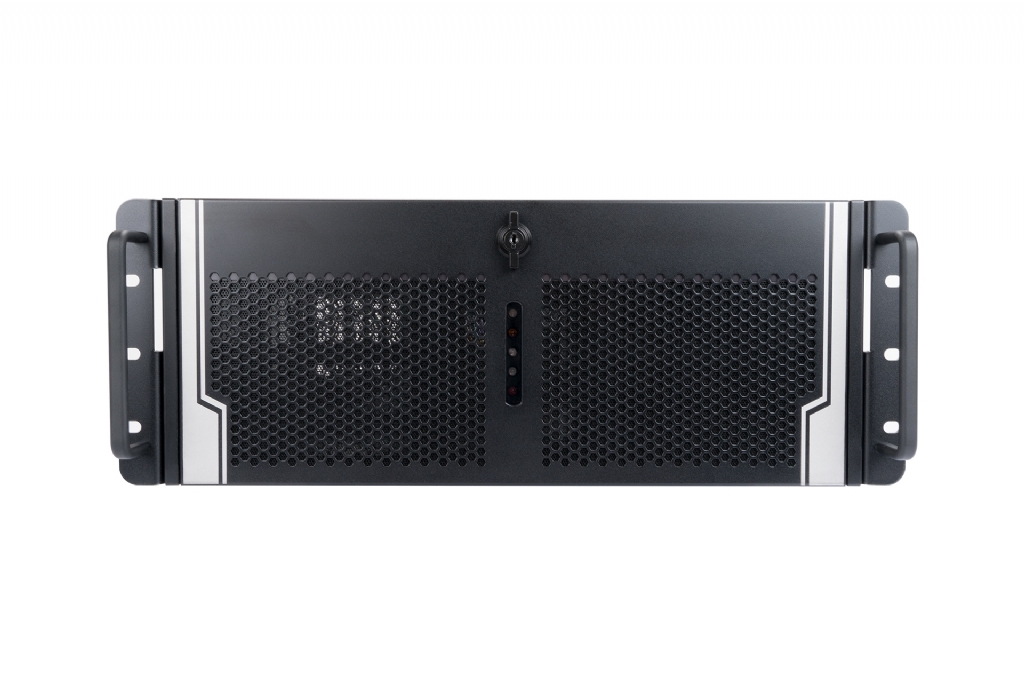

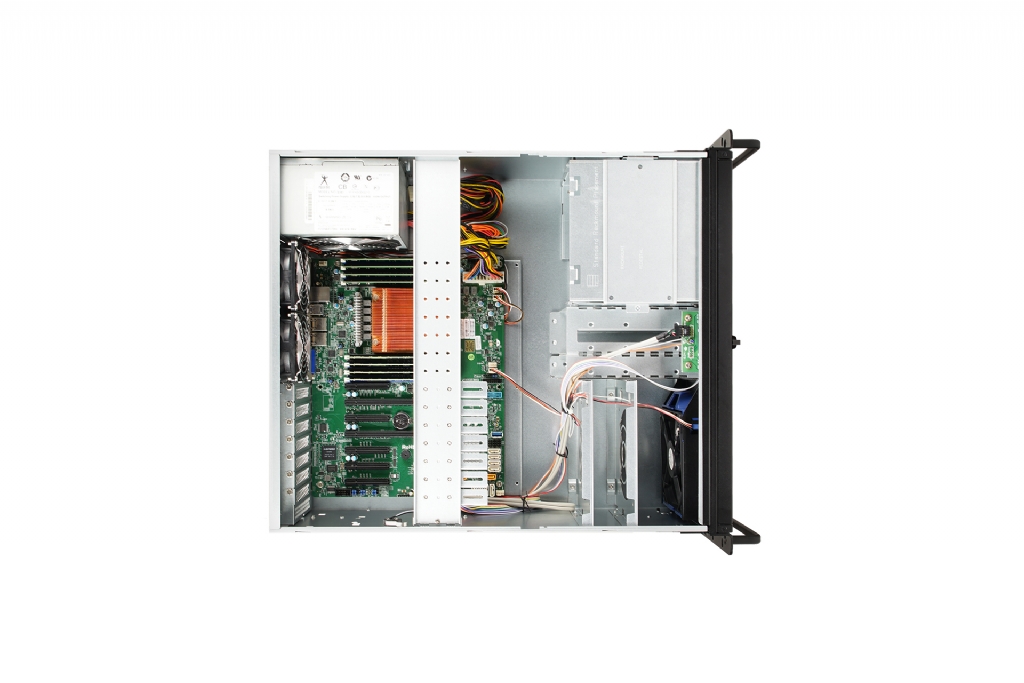

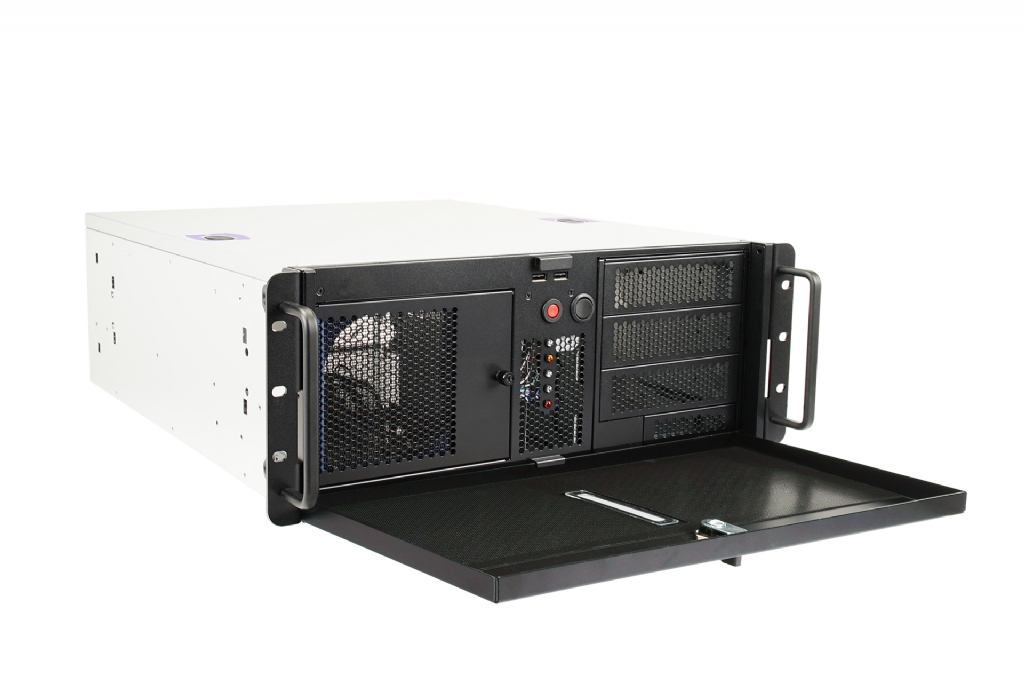

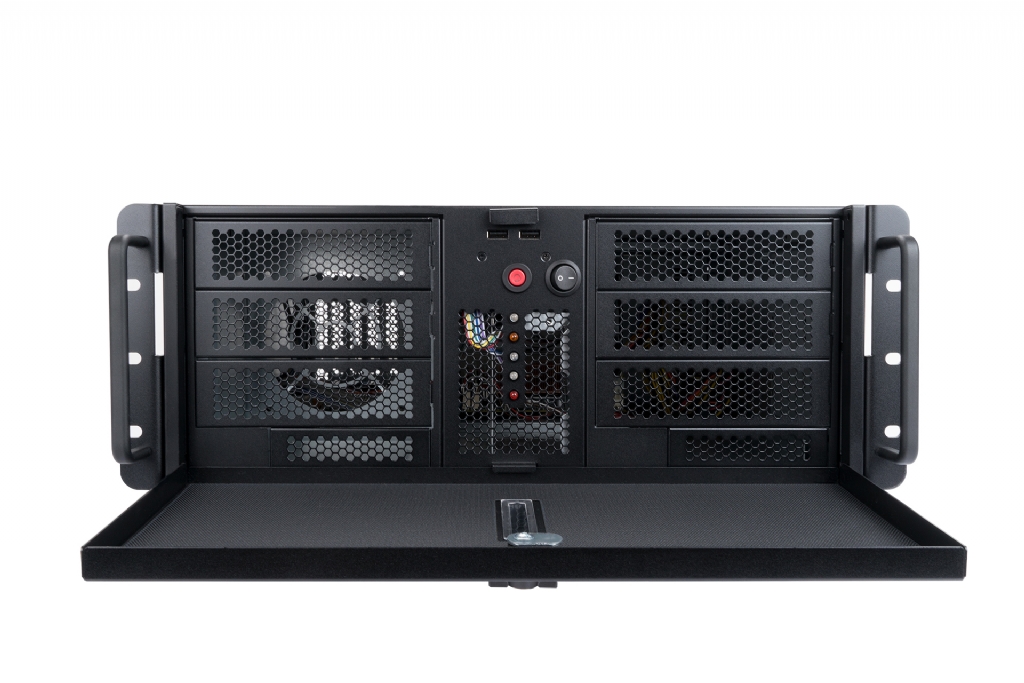

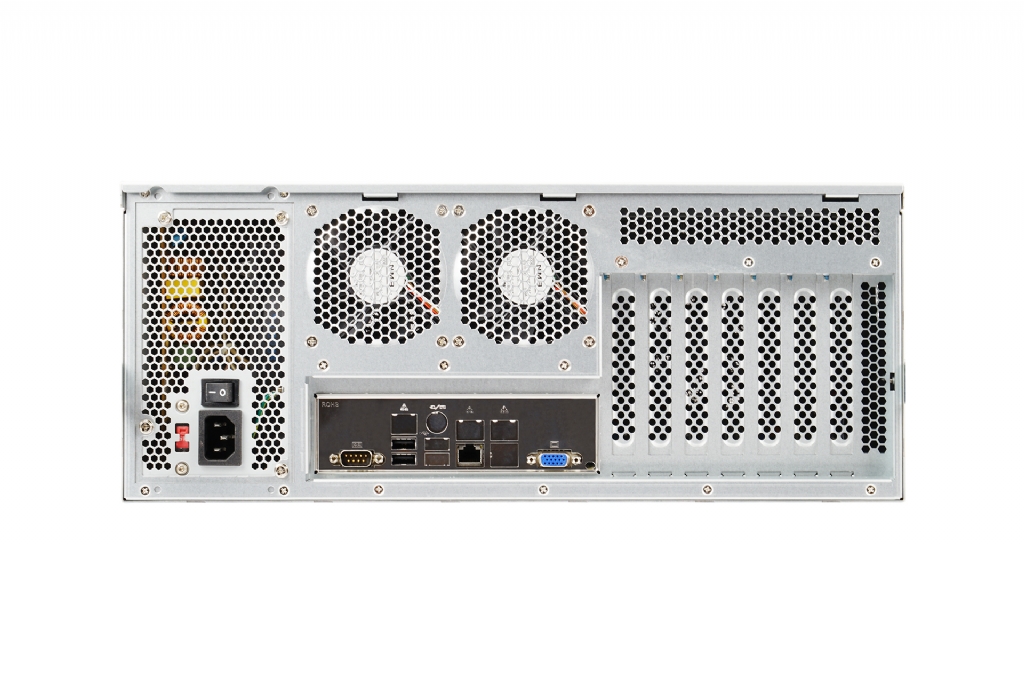

In-WIn IW-R400N Open-Bay 4U Server Chassis Rack/Tower

In-WIn IW-R400N Open-Bay 4U Server Chassis Rack/Tower
ex. VAT
inc. VAT)
This product is currently out of stock. We are expecting stock in Ordered On Request
Select Options
Email me when in stock
Looking for Compatible Products?

Frequently bought together

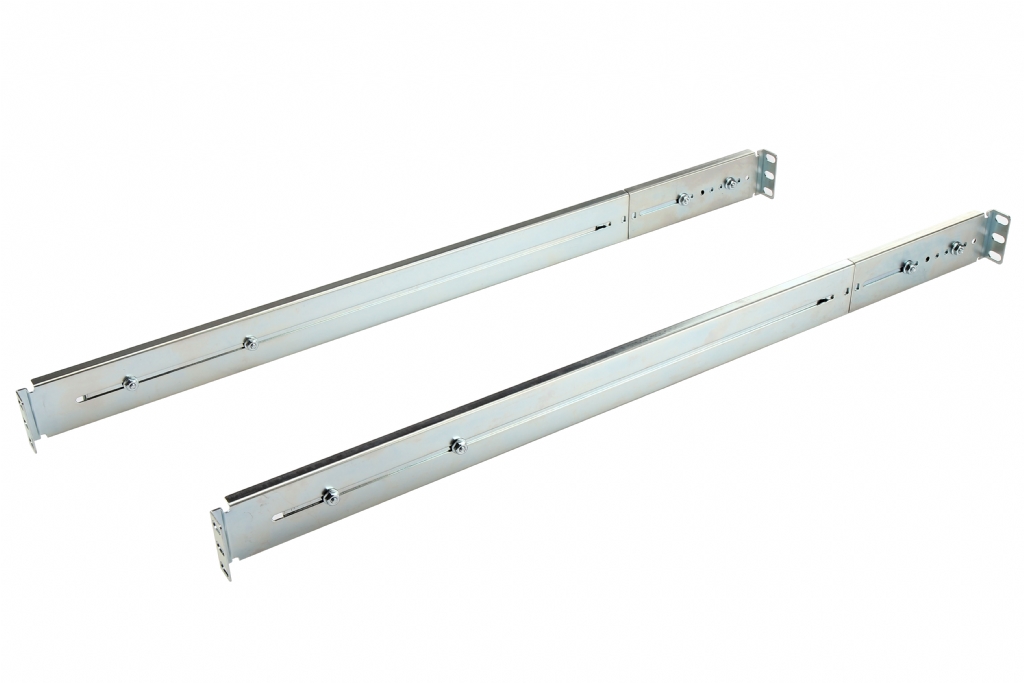

In-Win 26
In-Win 26" Slide Rail Kit
£33.26 ex VAT
(£39.91 inc VAT)

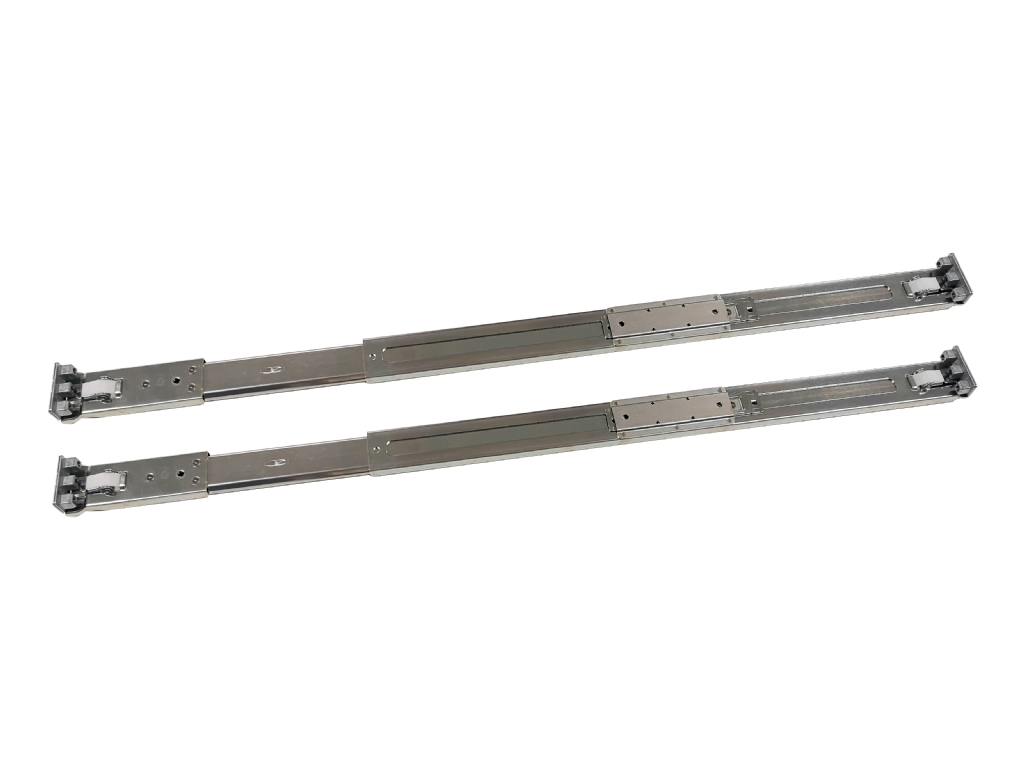

In-Win 28
In-Win 28" Slide Rail Kit - Tool-Less Install
£35.85 ex VAT
(£43.02 inc VAT)
Single 2U 600W 80 plus PSU
Single 2U 600W 80 plus PSU
£79.98 ex VAT
(£95.98 inc VAT)
In-Win 20
In-Win 20" Slide Rail Kit
£29.99 ex VAT
(£35.99 inc VAT)

Features and Benefit

  • Supports 120 x 25 mm PWM Front Fan x 1
  • Tool-less design top cover
  • With GPU holder supporting four 350mm dual-slot PCIe cards
  • Open-Bay 4U Server Chassis
  • Front air intake providing superior thermal exhaust efficiency
  • Convertible to tower with chassis stands



Standard EIA-RS310D
M/B Form Factor ATX (12" x 9.6"), CEB (12" x 10.5")
Dimensions (D x W x H)
w/ Front Door
508 x 482.6 x 178 mm(20" x 19" x 7")
Drive Bay External: 5.25" x 3, 3.5" x 1
Internal: 3.5" x 3, 2.5" x 1
Power Supply Supports
▪ Form Factor: PS/2, Mini-Redundant
▪ Watt: PS2 up to 600W, Mini-Redundant up to 500W
Indicator Power Status, HDD, LAN Activity LEDs
Front Control Panel Power Switch, System Reset, USB 2.0 x 2
Chassis Security Intrusion Switch
Cooling Fan Supports
 ▪ 120 x 25 mm PWM Front Fan x 1
 ▪ 80 x 25 mm Easy-Swap Rear Fan x 2 (optional)
Expansion Slot Full Height PCI Slot x 7
Material Material: SGCC
Thickness: 1.2 mm
Rail Kit Supports 28" Ball-bearing
Packaging Dimensions
(D x W x H)
720 x 640 x 340 mm
Shipping Info. Net Weight: 12.3 kg
Gross Weight: 17.8 kg
Container Info. Single Packing:
20’: 200pcs
40’: 420pcs
40’HQ: 470pcs
* The actual product is subject to change without prior notice.
InWin Development Inc. reserves the right to make final modifications.
* Above image for reference only. All hardware components are not included.
