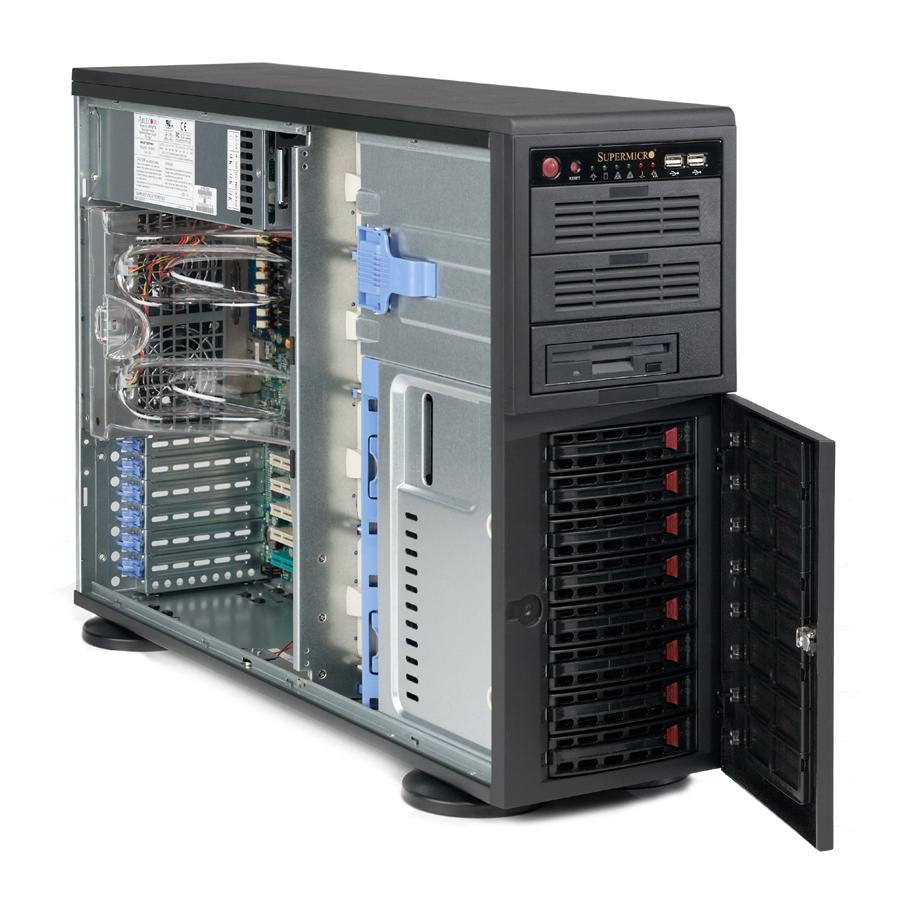

| SYS-7044H-82R+ |
- SuperServer 7044H-82R+ (Beige)
|
| SYS-7044H-82R+B |
- SuperServer 7044H-82R+B (Black)
|
| |
|
| CPU |
- Dual 604-pin FC-mPGA4 Sockets
- Supports up to two Intel® 64-bit Xeon®processor(s) of the same type below:
- Xeon (Paxville) Dual-core CPU with 2x2MB L2 Integrated Advanced Transfer Cache
- Xeon (Nocona) CPU with 1MB L2 Integrated Advanced Transfer Cache, up to 3.60 GHz
- Xeon (Irwindale) CPU with 2MB L2 Integrated Advanced Transfer Cache, up to 3.80 GHz
- Xeon LV (Low Voltage) CPU, up to 2.8 GHz
|
| System Bus |
|
| Operating System Software |
|
| |
|
| Memory Capacity |
- Eight 240-pin DIMM sockets
- Supports up to 16 GB DDR2 400MHz memory
- Dual channel memory bus
- Memory must be populated in pairs
- Single-rank modules are recommended for 6+ DIMM support
|
| Memory Type |
- DDR2 400MHz buffered (registered) ECC SDRAM 72-bit, 240-pin gold-plated DIMMs
|
| DIMM Sizes |
|
| Memory Voltage |
|
| Error Detection |
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
- Supports Intel® x4 Single Device Data Correction (SDDC)
|
| |
|
| Chipset |
- Intel® E7520 chipset
- MCH + ICH5R + PXH +82546GB
|
| SCSI |
- Adaptec AIC-7902 Controller
- Dual-Channel Ultra320 SCSI
- Host RAID 0, 1, 10, JBOD support
|
| RAID |
- Support for Zero-Channel RAID
- Optional Card not included
|
| IPMI |
|
| Network Controllers |
- Intel® 82546GB Dual Port Gigabit Controller
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
|
| Graphics |
- ATI Rage XL SVGA PCI video controller with 8 MB of video memory
|
| Super I/O |
|
| |
|
| IDE |
- Dual EIDE channels support up to four UDMA IDE devices
- Supports UDMA Mode 5, PIO Mode 4, and ATA/100
|
| Floppy |
- 1 Floppy controller; 1.44 MB, 2.88 MB
|
| LAN |
|
| USB |
- 2x USB rear ports
- 3x USB internal headers
- USB 2.0 Compliant / 1.1 Compliant
|
| VGA |
|
| Keyboard / Mouse |
- PS/2 keyboard and mouse ports
|
| Serial Port / Header |
- 1 Fast UART 16550 serial port
- 1 Fast UART 16550 serial header
|
| Parallel Port |
|
| |
|
| BIOS Type |
- 8Mb Flash EEPROM with Phoenix® BIOS
|
| BIOS Features |
- Plug and Play (PnP)
- SMBIOS 2.3
- DMI 2.1
- ACPI 1.0
- Fan Speed Control
|
|
 |
|
|
| Form Factor |
- 4U Rackmountable / Tower
- Optional Rackmount Kit (CSE-PT26)
|
| Model |
|
| |
|
| Height |
- Tower: 17.2" (437mm)
Rackmount: 7.0" (178mm)
|
| Width |
- Tower: 7.0" (178mm)
Rackmount: 17.2" (437mm)
|
| Depth |
|
| Gross Weight |
|
| Available Colors |
|
| |
|
| Buttons |
- Power On/Off button
- System Reset button
|
| LEDs |
- Power LED
- Hard drive activity LED
- 2x Network activity LEDs
- System Overheat LED
- Power Fail LED
|
| Ports |
|
| |
|
| PCI-Express |
|
| PCI-X |
- 1x 64-bit 133MHz PCI-X (3.3V) slot
- 2x 64-bit 100MHz PCI-X (3.3V) slots
|
| |
|
| Hot-swap |
- 8x 3.5"SCA Ultra320/160 Hot-swap Drives
|
| Peripheral Bay(s) [90oRotatable] |
- 2x 5.25" Peripheral Drive Bay
- 1x 5.25" Bay For Floppy Drive
|
| |
|
| Single Channel SCSI Backplane w/ SAF-TE |
| |
|
| Fans |
- 4x 5000 RPM Hot-swappable Cooling Fans
- 2x 5000 RPM Hot-swappable Rear Exhaust Fans
|
| |
|
760W Triple-redundant AC power supply w/ PFC
[ 24-pin, (4-pin, 8-pin) = 12V ] |
| AC Voltage |
- 100 - 240V, 50/60Hz, 14-8 Amp
|
| DC Output |
- 5V + 3.3V ≤ 200W
- 12V Total ≤ 50A
|
| +5V |
|
| +5V standby |
|
| +12V1 |
|
| +12V2 |
|
| +12V3 |
|
| +12V4 |
|
| -12V |
|
| +3.3V |
|
| |
|
| CPU |
- Monitors for CPU Cores, +3.3V, +5V, ±12V & +3.3V Standby
- CPU Core 3-Phase-switching voltage regulator with auto-sense from 0.86V-1.63V
|
| FAN |
- Total of four 4-pin and four 3-pin fan headers
- 8x fans with status monitoring
- Status monitor with firmware/software on/off control
- Low noise fan speed control
- 4x Pulse Width Modulated (PWM) fan connector
|
| Temperature |
- Monitoring for CPU, chassis, environment
- CPU thermal trip support
- Thermal Monitor 2 support
|
| LED |
- CPU Overheat LED
- System Overheat LED
- Suspend-state indicator LED
|
| Other Features |
- Chassis intrusion detection
- Chassis intrusion header
- SDDC
|
|
