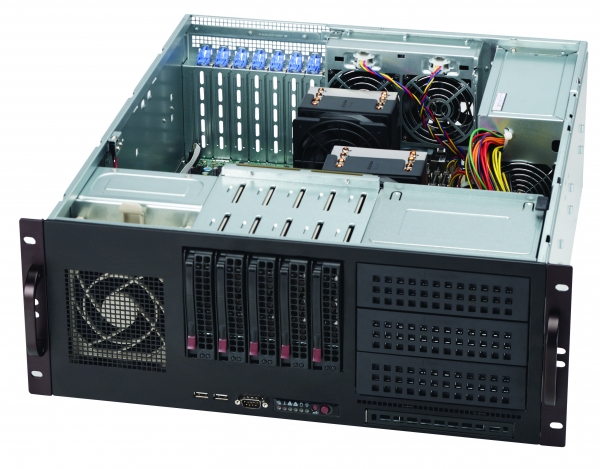

Supermicro SuperChassis 842TQ-665B (Black)

CSE-842TQ-665B
Supermicro SuperChassis 842TQ-665B (Black)
£282.76
ex. VAT
This product is currently out of stock. We are expecting stock in Ordered On Request
Quantity





Product SKUs
CSE-842TQ-665B
  • SuperChassis 842TQ-665B (Black)

Form Factor
Industrial Short-Depth 4U Rackmount supports E-ATX, ATX, Micro ATX motherboards; max. motherboard size 12" x 13"

Processor Support
Supports dual, single Intel® / AMD processors

Dimensions
Height
  • 7.0" (178mm)
Width
  • 17.2" (437mm)
Depth
  • 20.5" (521mm)
Gross Weight
  • 25 lbs (11.3kg)
Packaging
  • 26.4" (W) x 13.8" (H) x 31.5" (D)
    670mm (W) x 350mm (H) x 800mm (D)
Available Colors
  • Black

Expansion Slots
7x Tool-less Full-height, Full-length PCI Expansion Slots

Drive Bays
Hot-swap
  • 5x 3.5" (8x 2.5" SAS/SATA Hot-swap Drive Bays; optional kits)
  • SAS or enterprise SATA HDD only recommended
Peripheral Bay(s)
  • 3x 5.25" Peripheral Drive Bays
  • 1x Slim DVD-ROM (optional) Drive Bay

SAS / SATA Backplane
SAS / SATA Hard Drive Backplane

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED
  • Power Fail LED
Ports
  • 2x USB 2.0 Ports
System Cooling
Fans
(Hot-plug)
  • 1x Front Intake 9cm PWM cooling fan
  • 2x Rear 8cm PWM cooling fans

System Monitoring
Chassis intrusion switch

Operating Environment (System)
Operating Temperature Range
  • 5°C ~ 35°C (41°F ~ 95°F)
Non-Operating Temperature Range
  • -40°C ~ 60°C (-40°F ~ 140°F)
Operating Relative Humidity Range
  • 8% ~ 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply
665W AC-DC power supply
AC Input
  • 100 - 240V, 50-60Hz, 10-5 Amp
+5V
  • 30 Amp
+5V standby
  • 6 Amp
+12V
  • 54 Amp
-12V
  • 0.5 Amp
+3.3V
  • 24 Amp
Certification Bronze Level
  Bronze Certified
  Test Report ]

Regulatory (Power Supply)
Power Supply Safety / EMC
  • USA - UL listed, FCC
  • Canada - CUL listed
  • Germany - TUV Certified
  • Europe/CE Mark
  • EN 60950/IEC 60950-Compliant
