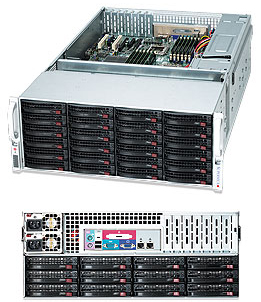

Supermicro SuperChassis 847E26-R1400LPB (Black)

CSE-847E26-R1400LPB
Supermicro SuperChassis 847E26-R1400LPB (Black)
£1,899.34
ex. VAT
(£2,279.21
inc. VAT)
This product is currently out of stock. We are expecting stock in Ordered On Request
Quantity


Email me when in stock
Looking for Compatible Products?



Product SKUs
CSE-847E26-R1400LPB
  • SuperChassis 847E26-R1400LPB (Black)

Form Factor
4U chassis support for motherboards up to size ATX, E-ATX,
13.68" x 13", UIO motherboards

Processor Support
Supports dual, single Intel® / AMD processors

Dimensions
Height
  • 7" (178mm)
Width
  • 17.2" (437mm)
Depth
  • 27.5" (699mm)
Gross Weight
  • 80 lbs (36.3 kg)
Available Colors
  • Black

Expansion Slots
7x Low-profile expansion slots

Drive Bays
Server Chassis
  • 36x (24 front + 12 rear) 3.5" Hot-swap HDD bays
  • SAS or enterprise SATA HDD only recommended

Backplane
HDD Backplane supports 36 SAS hard drives (24x front + 12 rear)

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED
  • Power Fail LED
System Cooling
Fans
  • 7x 8cm hot-swap cooling fans
  • Redundant cooling

System Monitoring
Chassis intrusion switch

Operating Environment (System)
Operating Temperature Range
  • 5°C ~ 35°C (41°F ~ 95°F)
Non-Operating Temperature Range
  • -40°C ~ 60°C (-40°F ~ 140°F)
Operating Relative Humidity Range
  • 8% ~ 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply
1400W high-efficiency (1+1) redundant power supply with PMBus
AC Input
  • 1100W Output @ 100-140V, 13.5-9.5A, 50-60Hz
  • 1400W Output @ 180-240V, 9.5-7.0A, 50-60Hz
DC Output
  • 1100W: +12V/92A; +5Vsb/4A
  • 1400W: +12V/116A; +5Vsb/4A
With Distributor
  • +5V: 100 Amp
  • +3.3V: 30 Amp
  • -12V: 0.6 Amp
Certification Gold Level Certified
  Gold Certified
  Test Report ]

Regulatory (Power Supply)
Power Supply Safety / EMC
  • USA - UL listed, FCC
  • Canada - CUL listed
  • Germany - TUV Certified
  • Europe/CE Mark
  • EN 60950/IEC 60950-Compliant
Standard Parts List
  Part Number Qty Description
Chassis CSE-847E26-R1400LPB 1 4U Chassis (Black) - 847E26-R1400LPB
Backplane BPN-SAS2-846EL2 1 Backplane supports upto 24 SAS/SATA
Backplane BPN-SAS2-826EL2 1 826 backplane with two LSI SAS2X28 expander chip
Power Supply PWS-1K41P-1R 2 1400W 1U GOLD LEVEL PWS W/ PM BUS & WX3
Power Distributor PDB-PT847-8824 1 24pin standard output with 5V high current 100Amp power distributor board for SC847
Air Shroud MCP-310-49004-0N 1 SC847/417 DP X9 universal PC air shroud 1368x13/12x13MB
Cable 1 CBL-0088L 7 10.5\", 4 PIN MIDDLE FAN POWER EXTENSION (PWM). 24AWG
Cable 2 CBL-0160L 2 NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
Cable 3 CBL-0071L 1 ROUND 16 pin TO 16 PIN RIBBON FP CABLE 30
Cable 4 CBL-0217L 1 16 pin control panel converter cable for SC826,846, 22cm, PBF
Fan 1 FAN-0126L4 7 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing
Front Panel MCP-280-82601-0N 1 Front control board adapter (TB826) for SC216,826,936,846
Drive Tray(s) MCP-220-00075-0B 36 Black gen 5.5 hot-swap 3.5\" HDD tray
Mounting Rails MCP-290-00057-0N 1 set Rail set, quick/quick, default for 4U 17.2\"W
Rear Window MCP-240-82506-0N 1 LP Rear Window for SC825,825M,826,213,216
Optional Parts List
  Part Number Qty Description
Heatsink / Retention - - Please refer to our Thermal Components Matrix
Cable(s) CBL-0166L

CBL-0168L-LP

CBL-0351L-LP

CBL-0352L-LP
-

-

-

-
SAS 826EL2/EL1 BP External Cascading Cable

SAS 826EL2 BP 2-Port Internal Cascading Cable

85CM 1-PORT EXT IPASS TO INT IPASS LP

85CM 2-PORT ETX IPASS TO INT IPASS LP
Cable(s) CBL-0108L-02

CBL-0281L
-

-
SFF 8087 to SFF 8087 Internal Backplane Cable, 39cm

SFF 8087 to SFF 8087 Internal Backplane Cable, 75cm
Drive Trays MCP-220-84701-0N

MCP-220-00043-0N
-

-
Internal drive bay for one 3.5" HDD or two 2.5" HDD

3.5" convert to 2.5" hot-swap HDD Tray
Mounting Rails MCP-290-00058-0N

MCP-290-00060-0N
-

-
19" to 26.6" rail set, Quick Release, Tool-less

Square hole to round hole rail adaptor set
Front Bezel
Compatibility Table )
MCP-210-84601-0B -
Front Bezel Cover, Black with Key Lock
RAID cards AOC-USAS2LP-H8iR - 8 int ports, supports 240 HDDs
SC847 JBOD SKUs List
  Part Number Qty Description
JBOD SKUs - - Please go to SC847E16-RJBOD1 or SC847E26-RJBOD1
LCD/OLED Solutions - - Please reference the LCD/OLED Display Solutions for details
