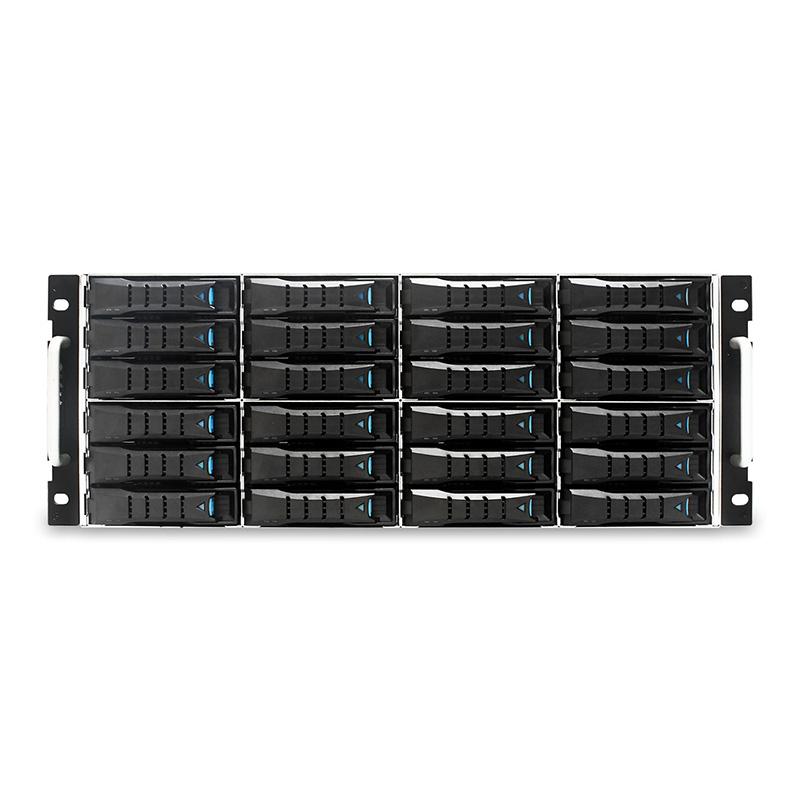

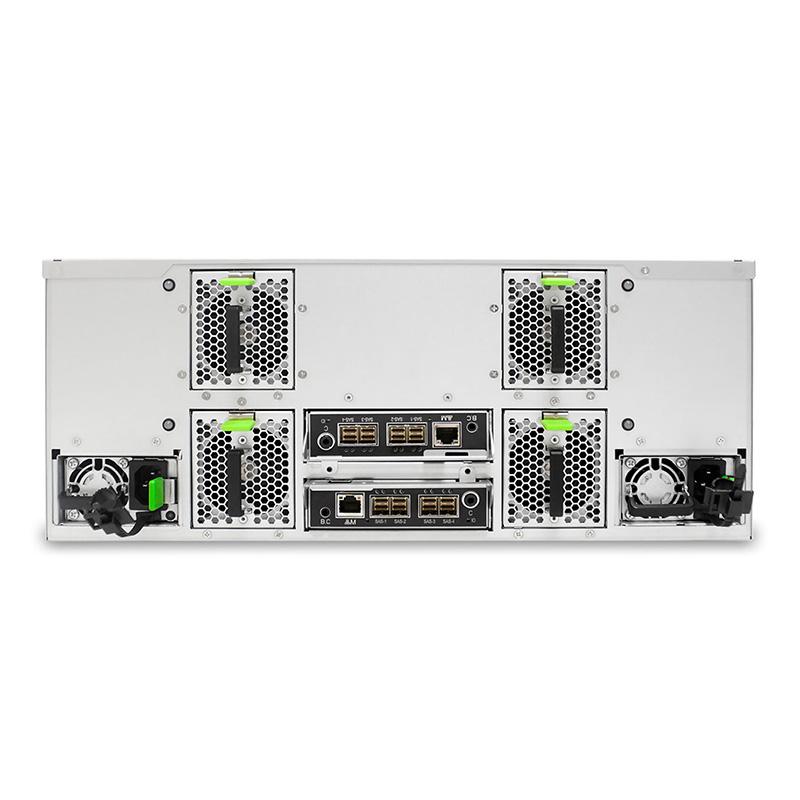

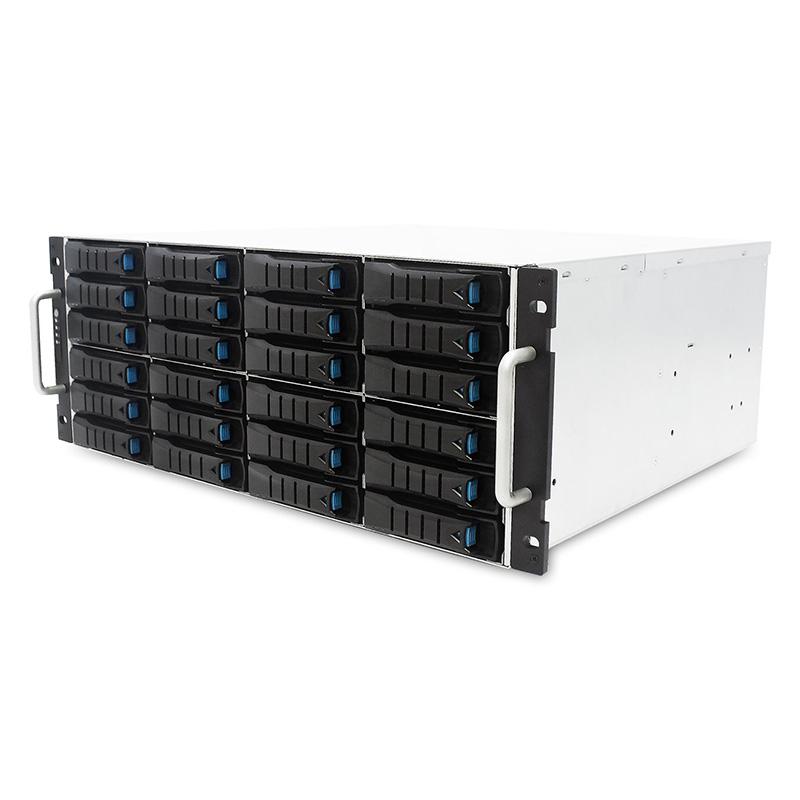

4U 12G JBOD 24 x 3.5" Hot-Swap Tool-less Drive Trays with Dual Hot-Swap Expander ,Dual BMC and 550W Redundant PSU, Short Depth

J4024-04-2E-HS-12G
4U 12G JBOD 24 x 3.5" Hot-Swap Tool-less Drive Trays with Dual Hot-Swap Expander ,Dual BMC and 550W Redundant PSU, Short Depth
£2,721.25
ex. VAT
(£3,265.50
inc. VAT)
This product is currently out of stock.
Call/Email/Live Chat our sales team for availability, we look forward to hearing from you.
Quantity


Email me when in stock
Looking for Compatible Products?
Product Description

Key Features

• Board to board connections no signal cable and no PSU cable
• Tool-less design
• Hot-swap expander module, drives, PSU and fans
• Short-depth
• Clear indicators
• Optimized thermal solution
• BMC onboard



Features & Benefits

IPC-S4ET is an innovative 4U24 JBOD that integrates 3.5" SAS (12G,dual) /SATA (6G, single) disk drive, Broadcom SAS35X-Series expander chip, and board-to-board connection design into a compact and stable system with exceeding productivity.





Key Features

• Board to board connections no signal cable and no PSU cable
• Tool-less design
• Hot-swap expander module, drives, PSU and fans
• Short-depth
• Clear indicators
• Optimized thermal solution
• BMC onboard

General
Number of Expander:
• Dual
Expander Chip:
• LSI SAS35x40
Host/Expansion Interface:
• 4 x Mini SAS HD (SFF-8644) per expander module
Drives Supported
Drive Interface:
• 12Gb & 6Gb SAS if using dual expanders
• 12Gb & 6Gb SAS/SATA if using single expander
Form Factor:
• 3.5”
Administration / Management
Admin/Firmware Upgrade:
• In-band & Serial port interface
• IEM port
LED indicators, Audible Alarm:
• Yes
Hot-swap & Redundancy
Drive Bays:
• 24
Cooling:
• 4 x 60x56mm hot swap fans
Power Supply:
• 550W 1+1 hot swap redundant 80+ Platinum
Power Entry:
• Dual AC Inlet
Expander Modules:
Dual expanders
Electrical & Environment
Universal A/C Input:
• 100~127V~, 50/60Hz, 7.0A
• 200~240V~, 50/60Hz, 3.5A
Operating Environment:
• Temperature: 0ºC to 35ºC
• Relative humidity: 20% to 80%
Non-operating Environment:
• Temperature: -20ºC to 60ºC
• Relative humidity: 10% to 90%
Physical Specification
Dimensions (W x D x H):
• mm:
  438 x 385.5 x 174.4
• inches:
  17.2 x 15.1 x 6.9
Gross Weight (w/ PSU; w/o Rail & Disks):
• kgs: 25.93
• lbs: 57.17
Packaging Dimension (W x D x H):
• mm: 605 x 680 x 446
• inches: 23.8 x 26.8 x 17.6
Mounting:
• Friction Bracket  Option: 20” tool-less rail
