Key Features
• Board to board connections no signal cable and no PSU cable
• Tool-less design
• Hot-swap expander module, drives, PSU and fans
• Short-depth
• Clear indicators
• Optimized thermal solution
• BMC onboard

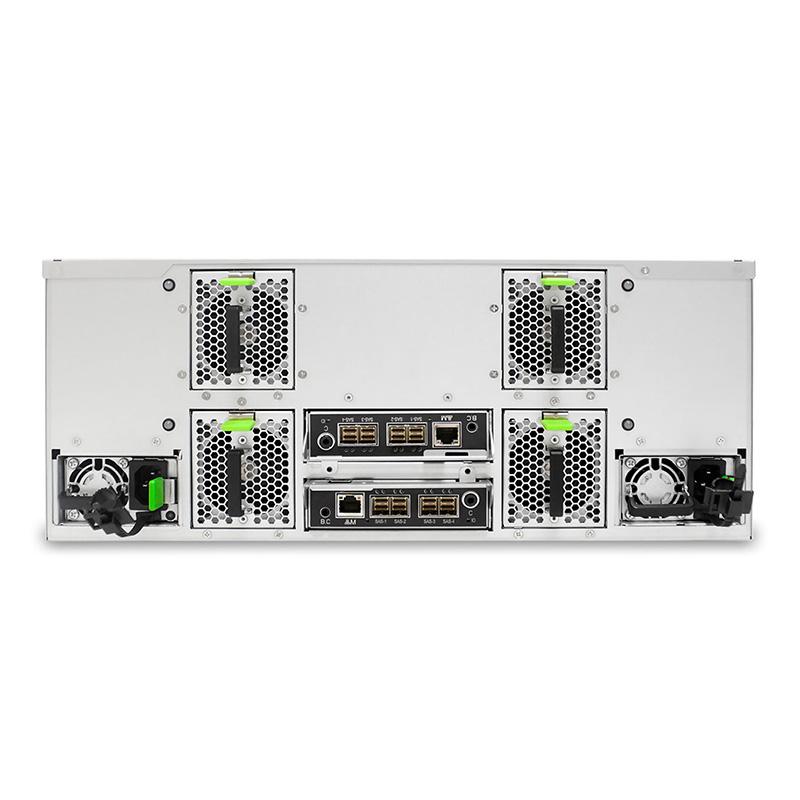

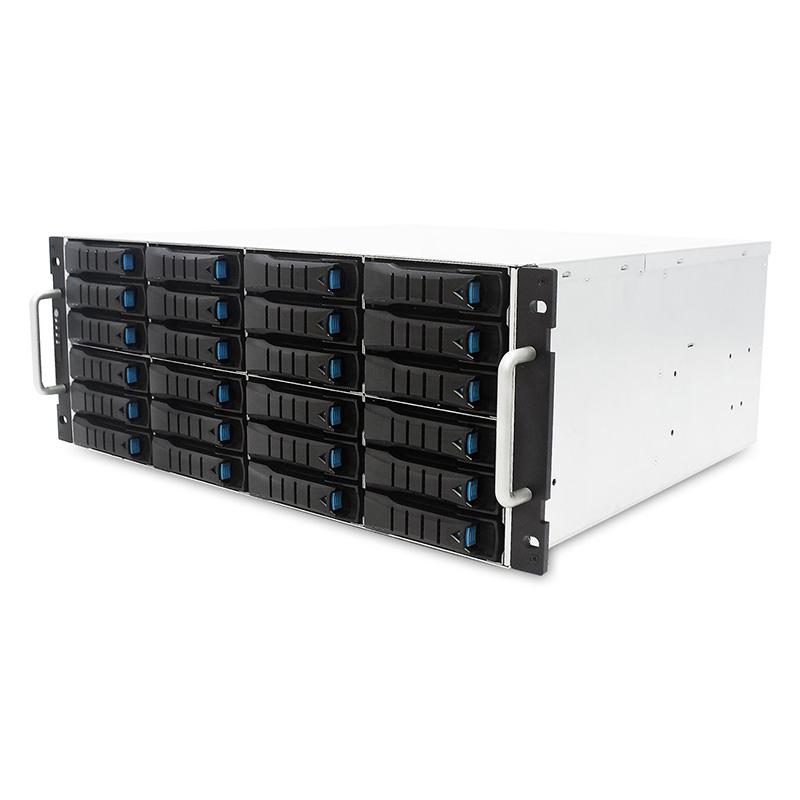

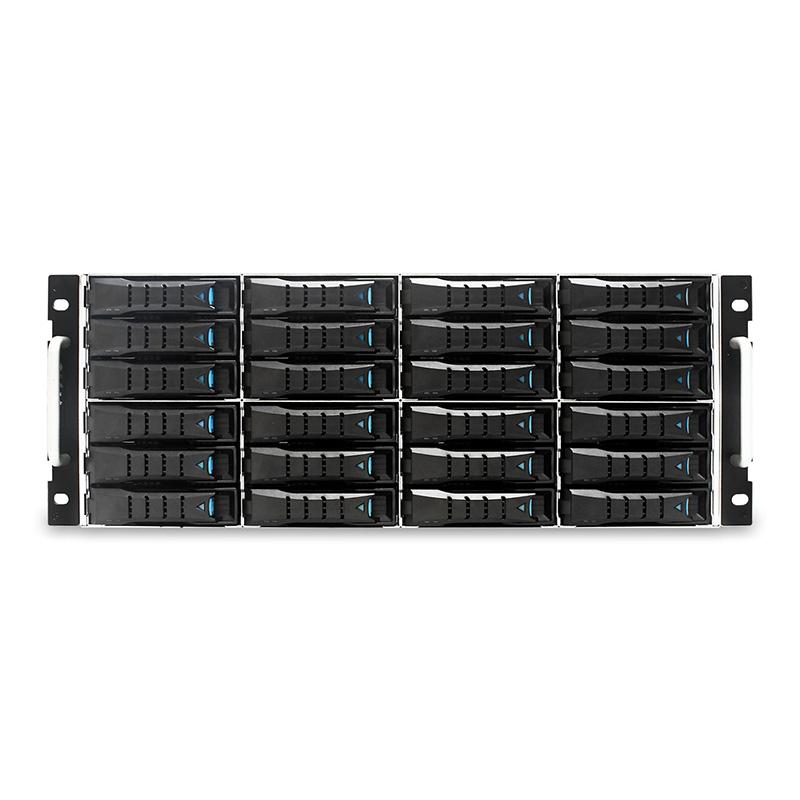

IPC-S4ET is an innovative 4U24 JBOD that integrates 3.5" SAS (12G,dual) /SATA (6G, single) disk drive, Broadcom SAS35X-Series expander chip, and board-to-board connection design into a compact and stable system with exceeding productivity.
Key Features
• Board to board connections no signal cable and no PSU cable
• Tool-less design
• Hot-swap expander module, drives, PSU and fans
• Short-depth
• Clear indicators
• Optimized thermal solution
• BMC onboard
General |
Number of Expander: • Single |
Expander Chip: • LSI SAS35x40 |
Host/Expansion Interface: • 4 x Mini SAS HD (SFF-8644) per expander module |
Drives Supported |
Drive Interface: • 12Gb & 6Gb SAS if using dual expanders • 12Gb & 6Gb SAS/SATA if using single expander |
Form Factor: • 3.5” |
Administration / Management |
Admin/Firmware Upgrade: • In-band & Serial port interface • IEM port |
LED indicators, Audible Alarm: • Yes |
Hot-swap & Redundancy |
Drive Bays: • 24 |
Cooling: • 4 x 60x56mm hot swap fans |
Power Supply: • 550W 1+1 hot swap redundant 80+ Platinum |
Power Entry: • Dual AC Inlet |
Expander Modules: Single expanders |
Electrical & Environment |
Universal A/C Input: • 100~127V~, 50/60Hz, 7.0A • 200~240V~, 50/60Hz, 3.5A |
Operating Environment: • Temperature: 0ºC to 35ºC • Relative humidity: 20% to 80% |
Non-operating Environment: • Temperature: -20ºC to 60ºC • Relative humidity: 10% to 90% |
Physical Specification |
Dimensions (W x D x H): • mm: 438 x 385.5 x 174.4 • inches: 17.2 x 15.1 x 6.9 |
Gross Weight (w/ PSU; w/o Rail & Disks): • kgs: 25.93 • lbs: 57.17 |
Packaging Dimension (W x D x H): • mm: 605 x 680 x 446 • inches: 23.8 x 26.8 x 17.6 |
Mounting: • Friction Bracket Option: 20” tool-less rail |
