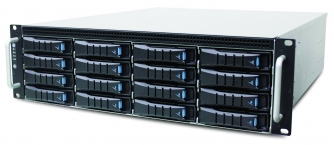

AIC 3U 12G JBOD 16 x 3.5 Hot-Swap Tool-less Drive Trays with Dual Hot-Swap Expanders and a 549W Redundant PSU

J3016-01-2E-HS-12G
AIC 3U 12G JBOD 16 x 3.5 Hot-Swap Tool-less Drive Trays with Dual Hot-Swap Expanders and a 549W Redundant PSU
£1,306.25
ex. VAT
(£1,567.50
inc. VAT)
Great news, we have this product in stock at the moment for next working day delivery.

Want it delivered by 27th Oct 2020? Order within 9 Hours and 4 minutes and get it delivered the next working day as standard.
Quantity


Looking for Compatible Products?

Next working day delivery countdown

Hour

Min

Sec


Order this product before 4.30pm today and get it delivered for FREE* on 27th Oct 2020.

* FREE Delivery on all orders over £100.00 to UK Mainland Only. Normal shipping charges apply outside UK Mainland.

Applications;
  • Near-line database expansion storage
  • High performance direct attached storage for HPC or application server
  • Virtual Tape Library
  • Multimedia On Demand
  • Online E-mail Storage
  • Local storage for video post-productions
  • Digital content source database storage
  • Private / Public cloud Expansion.

Features;

  • Intelligent Enclosure Management
  • Individual drive power management
  • Cutting edge performance and scalability
  • External port self-configuration to host or expansion
  • Supports SES-2 (SCSI Enclosure Service)
  • Hot swap design for easy maintenance and management
  • Adjustable Thermal Profile
  • Easy deployment



Specifications

General
Number of Expander :Dual
Expander Chip :LSI SAS3x28R
Host/Expansion Interface:3x Mini SAS HD (SFF-8644) per expander tray
Drives Supported
Drive Interface:
12Gb & 6Gb SAS if using dual expanders
12Gb & 6Gb SAS/SATA if using single expander
Form Factor :3.5"
Administration /Management
Admin/Firmware Upgrade:In-band & Serial port interface IEM port (Optional)
LED indicators,Audible Alarm :Yes
Hot swap and Redundancy
Disk Drive: Hot swap 16-bay
Cooling: 2 x 8038 hot swap fans
Power Supply: 549W 1+1 hot swap redundant 80+Platinum
Power Entry :Dual AC inlet
Expander: Dual expanders

Electrical and Environmental
Universal A/C Input: 100-240V AC full range
Operating Environment:Temperature 0ºC to 35ºC
Relative humidity 20% to 80%
Non-operating Environment:Temperature -20ºC to 60ºC
Relative humidity 10% to 90%
Physical Specification
Dimensions(W x D x H)(with chassis ears)
mm : 483 x 534 x 131
inches : 19 x 21 x 5.2
Gross Weight(w/ PSU,w/o Rail & Disks)
kgs : 24.8
lbs : 54.6
Packaging Dimensions(W x D x H)
mm : 595 x 785 x 338
Inches : 23.4 x 31 x 13.3
Mounting
Standard :Adjustable plate
Option :20" tool-less rail

Order information

IPC-S3ET-R549-1E-HS-12G(with single expander)

IPC-S3ET-R549-2E-HS-12G(with dual expanders)



Product downloads

Please see below our available downloads for this product. If there is a download that isn't listed please contact us. Please also have a look at our Installation/Setup Instructions page.
