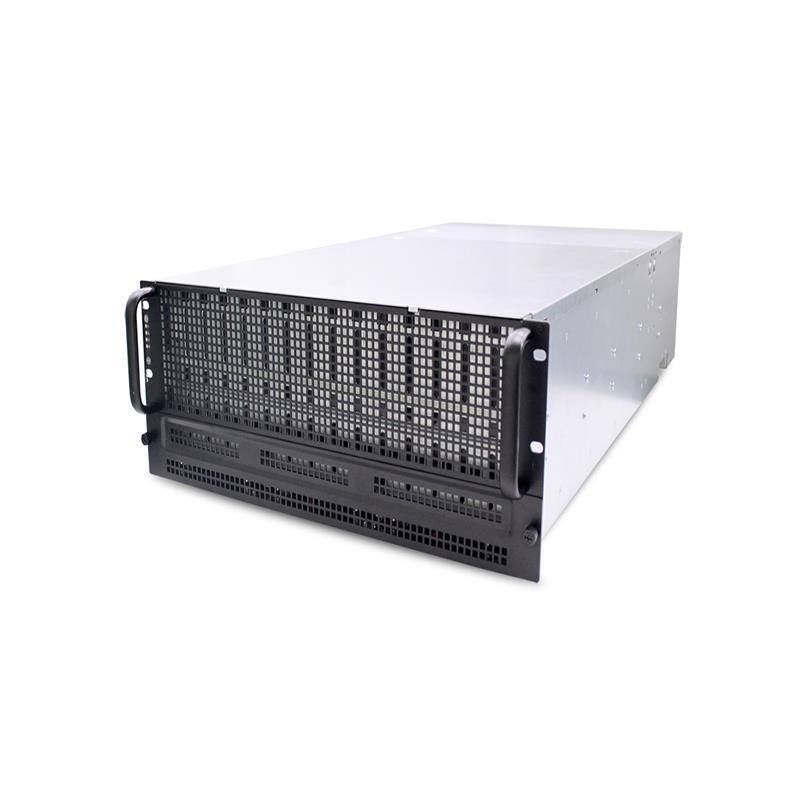

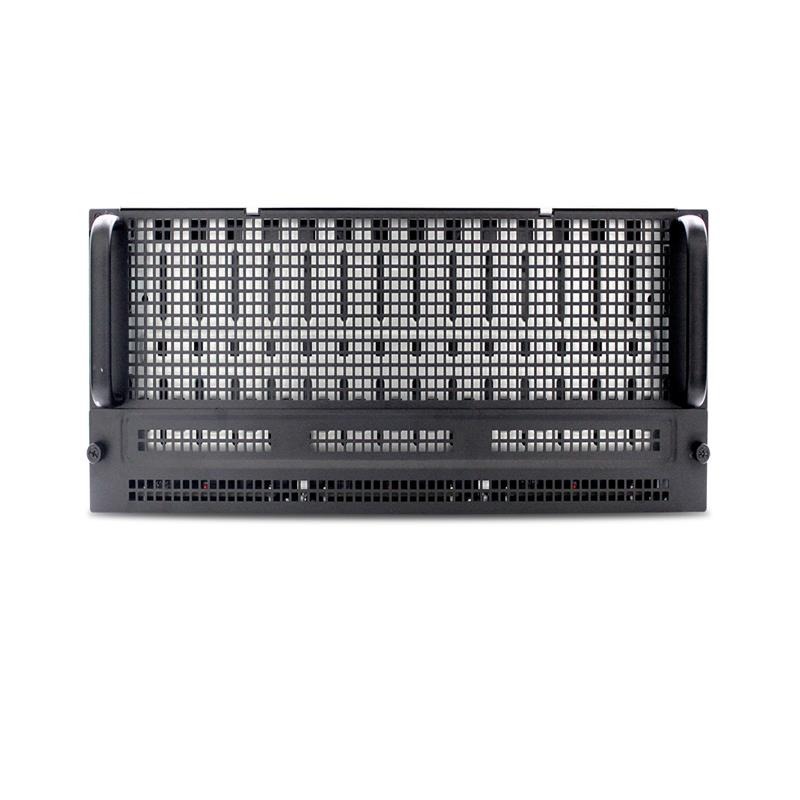

AIC 4U 12G JBOD 60 x 3.5" Top loading Hot-Swap Drive Trays with Dual Hot-Swap Expanders and a 1400W Redundant PSU

Key Features

• Intelligent Enclosure Management
• Individual drive power management
• Hot swap design for easy maintenance and management
• Optional Cable Management Kit

Features & Benefits

J4060-01, a 4U 60-Bay 12Gb/s SAS JBOD, ideal for high-availability storage and high performance appliance. This 4U 12Gb/s SAS JBOD enclosure with dual expanders supports 60 x 3.5” hot swap drives.

Expander Details

Number of Expander : Dual
Expander Chip : LSI SAS3x36R + LSI SAS3x48

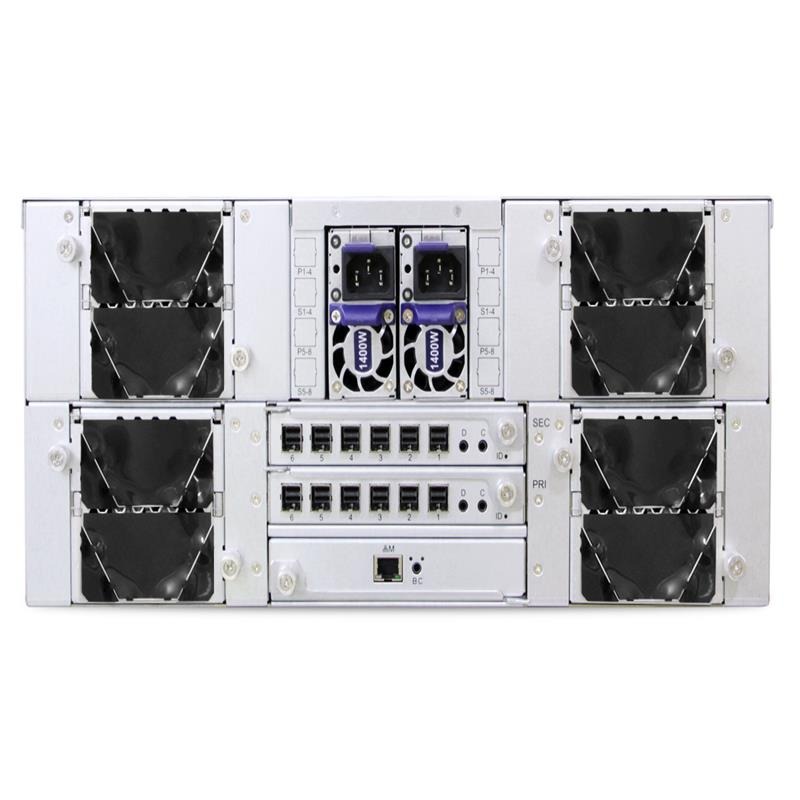

Host/Expansion Interface : 6 x Mini SAS HD (SFF-8644) per expander module

Drives Supported

• 12Gb & 6Gb SAS
• Form Factor : 3.5"

Administration / Management
Admin/Firmware Upgrade :  In-band & Serial port interface, IEM port (Optional)
LED Indicators, Audible Alarm : Yes
Hot swap & Redundancy
Drive Bays : 60 x 3.5" Hot-Swap (Top Loading)
Cooling : 4 x 8cm fans

Electrical & Environment
Power Supply : 1400W 1+1 hot swap redundant 80+ Platinum
Power Entry : Dual AC Inlet
Universal A/C Input : 100~240V AC full range
Operating Environment :
• Temperature 0ºC to 35ºC
• Relative humidity 20% to 80%
Non-operating Environment :
• Temperature -20ºC to 60ºC
• Relative humidity 10% to 90%

Physical Specification
Dimensions (W x D x H) (with chassis ears) :
• mm : 480 x 865.25 x 175.75
• inches : 18.9 x 34 x 6.9
Gross Weight (w/ PSU; w/o Rail & Disks) :
• kgs : 52.76
• lbs : 116.31
Packaging Dimension (W x D x H) :
• mm : 603 x 1095 x 408
• inches : 23.74 x 43.11 x 16

Mounting
Standard : Slide rail
• Option : Cable management kit

* All specifications are subject to change without notice.
