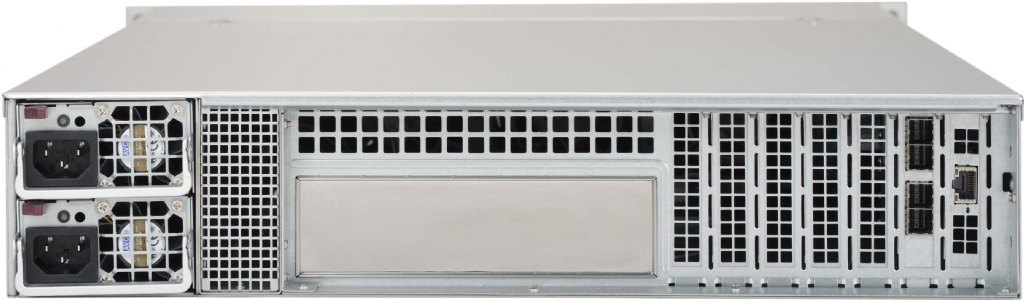

Supermicro CSE-826BE1C-R741JBOD

CSE-826BE1C-R741JBOD
Supermicro CSE-826BE1C-R741JBOD
£987.42
ex. VAT
(£1,184.90
inc. VAT)
This product is ordered upon request on a 3 - 5 Days lead-time.
Quantity


Email me when in stock
Looking for Compatible Products?
Product info
Product Description Compatible Products Downloads Reviews
Product SKUs
CSE-826BE1C-R741JBOD
  • SuperChassis 826BE1C-R741JBOD

Form Factor
  • 2U JBOD storage chassis

Dimensions
Height
  • 3.5" (89 mm)
Width
  • 17.2" (437 mm)
Depth
  • 25.5" (647 mm)
Net Weight
  • 55 lbs (24.95 kg)
Gross Weight
  • 60 lbs (27.22 kg)
Packaging (W x H x L)
  • 26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm)
Available Color
  • Black

Drive Bays
  • 12 x 3.5" hot-swap HDD bays for JBOD solution

Backplane
  • 12-port 2U SAS3 12Gbps single-expander backplane, support up to 12x 3.5-inch SAS3/SATA3 HDD/SSD

Front Panel
Buttons
  • Power On/Off button
  • System Reset Button
  • Unit Identification (UID) button
LEDs
  • 1 Network Activity LEDs
Systems Cooling
Fans
  • 3 x 80x38mm hot-swap cooling fan(s)

System Monitoring
  • IPMI

Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply
1U 740W Redundant Platinum Power Supply W/PMbus
Power Efficiency
  • 94%
Total Output Power and Input
  • 740W with Input 100 - 240Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 336 x 76 x 40 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 61.7A / Min: 0.2A (100Vac - 240Vac)
+5Vsb
  • Max: 4A / Min: 0A
Power Distributor
  • PDB-PT826-8824
  • O/P: 12V/135A
  • +5V Max: 40A
  • +3.3V Max: 24A
  • -12V Max: 0.6A
Certification
  • Platinum Certified  Platinum Certified

Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • FCC class A
  • TUV/CB
  • UL/CUL
Standard Parts List
  Part Number Qty Description
Air Shroud MCP-310-29001-0N 1 SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13
HD Backplane BPN-SAS3-826EL1 1 12-port 2U SAS3 12Gbps single-expander backplane, support up to 12x 3.5-inch SAS3/SATA3 HDD/SSD
Control Board CSE-PTJBOD-CB3 1 JBOD chassis power control board with IPMI remote on/off feature
Cable(S) CBL-0160L 2 NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
Cable(S) CBL-CDAT-0601 1 CBL,I2C,1X4F/P2.5 TO 1X4F/P2.5,50CM,26AWG,BRN/BLK-SHUNT/ORG
Cable(S) CBL-NTWK-0587 1 Y-CBL,INT,SC847D,PCB-CAT5E,RJ45 & 2X3F/P2.54,50/55CM,24AWG
Cable(S) CBL-SAST-0532 4 MINI SAS HD,12G,INT,50CM,30AWG
Fan(s) FAN-0126L4 3 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing
Drive Tray(s) MCP-220-00075-0B 12 Black gen 5.5 hot-swap 3.5"; HDD tray
Power Distributor PDB-PT826-8824 1 PDB with longer 24pin for SC826B
Part(s) MCP-260-00011-0N 1 I/O shield without any opening
Power Supply & Accessory PWS-741P-1R 2 1U740W Platinum Redundant Single Output
Mounting Rail(s) MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2";W
Rear Window MCP-240-82608-0N 1 216B/826B LP rear window,RoHS/REACH,PBF

Optional Parts List
  Part Number Qty Description
Cable CBL-SAST-0573 - External mini SAS HD to external mini SAS HD cable 28AWG (1M)
Cable CBL-SAST-0690 - 2m external Mini SAS HD to external mini SAS HD.28AWG,RoHS/REACH
Cable CBL-SAST-0677 - 3m external Mini SAS HD to external mini SAS HD.28AWG,RoHS/REACH
HDD Tray MCP-220-00118-0B - Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH
