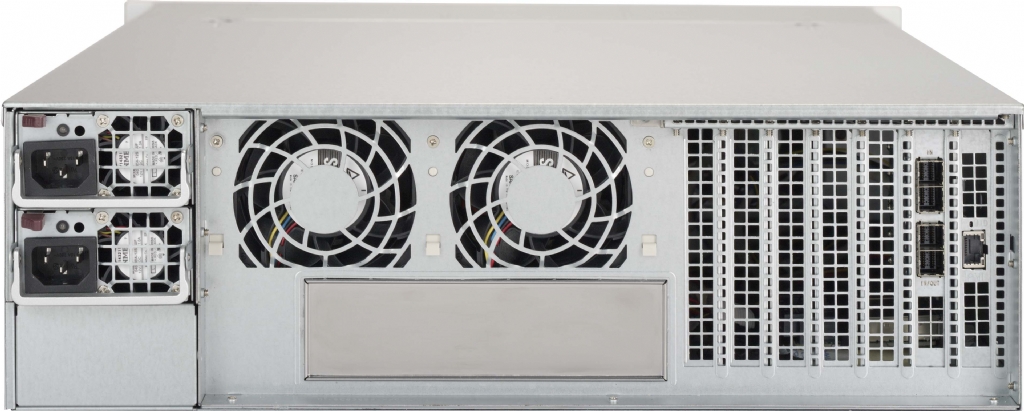

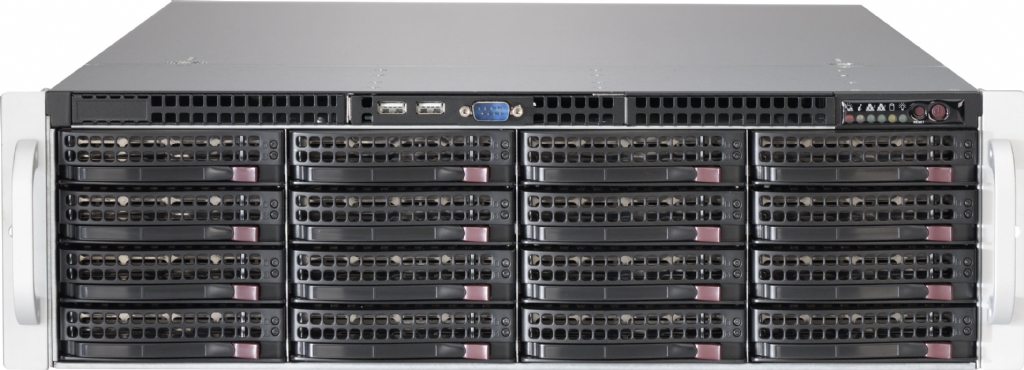

Supermicro CSE-836BE1C-R1K03JBOD

CSE-836BE1C-R1K03JBOD

Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.

Looking for Compatible Products?

More from this brand

Product Description

Product SKUs

CSE-836BE1C-R1K03JBOD	SuperChassis 836BE1C-R1K03JBOD


Form Factor

3U JBOD storage chassis


Dimensions

Height	5.2" (132 mm)
Width	17.2" (437 mm)
Depth	25.5" (647 mm)
Net Weight	55 lbs (24.95 kg)
Gross Weight	80 lbs (36.29 kg)
Packaging (W x H x L)	26.6" (676 mm) x 13" (330 mm) x 39.9" (1013 mm)
Available Color	Black


Drive Bays

16 x 3.5" hot-swap HDD bays for JBOD solution


Backplane

16-port 3U SAS3 12Gbps single-expander backplane, support up to 16x 3.5-inch SAS3/SATA3 HDD/SSD


Front Panel

Buttons	Power On/Off button System Reset Button Unit Identification (UID) button
LEDs	1 Network Activity LEDs

Systems Cooling

Fans	3 x 8cm hot-swap redundant PWM cooling fan(s) 2 x 8cm hot-swap exhaust fan(s) & air shroud


System Monitoring

IPMI


Operating Environment (System)

Operating Temperature Range	5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non-Operating Relative Humidity Range	5% - 95% (non-condensing)


Power Supply
1U 800/1000W Redundant Titanium Single Output Power Supply W/PMbus
Power Efficiency	96%
Total Output Power and Input	800W with Input 100 - 127Vac 1000W with Input 200 - 240Vac
AC Input Frequency	50-60Hz
Dimensions (L x W x H)	336 x 76 x 40 mm
Output Type	Backplanes (gold finger)
+12V	Max: 66.7A (100Vac - 127Vac) Max: 83A (200Vac - 240Vac)
+5Vsb	Max: 4A / Min: 0A
Power Distributor	PDB-PT826-8824 O/P: 12V/135A +5V Max: 40A +3.3V Max: 24A -12V Max: 0.6A
Certification	Titanium Certified


Regulatory (Power Supply)

Power Supply Safety / EMC	BSMI CCC CE/EMC FCC class A UL/CB UL/CUL


Standard Parts List

	Part Number	Qty	Description
Air Shroud	MCP-310-39001-0N	1	SC835/836/936 Intel DP X9-X10 PC air shroud 1368x13/12x13MB
HD Backplane	BPN-SAS3-836EL1	1	16-port 3U SAS3 12Gbps single-expander backplane, support up to 16x 3.5-inch SAS3/SATA3 HDD/SSD
Control Board	CSE-PTJBOD-CB3	1	JBOD chassis power control board with IPMI remote on/off feature
Cable(S)	CBL-0071L	1	CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,75CM,28AWG
Cable(S)	CBL-0088L	1	4 PIN MIDDLE FAN POWER CABLE (PWM). 27cm, 24AWG
Cable(S)	CBL-0296L	2	4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
Cable(S)	CBL-CDAT-0601	1	CBL,I2C,1X4F/P2.5 TO 1X4F/P2.5,50CM,26AWG,BRN/BLK-SHUNT/ORG
Cable(S)	CBL-NTWK-0587	1	Y-CBL,INT,SC847D,PCB-CAT5E,RJ45 & 2X3F/P2.54,50/55CM,24AWG
Cable(S)	CBL-SAST-0532	4	MINI SAS HD,12G,INT,50CM,30AWG
CD-ROM & Accessory	MCP-290-00007-01	1	Black DVD dummy cover for SC825, 836
Fan(s)	FAN-0125L4	2	80x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing
Fan(s)	FAN-0126L4	3	80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing
Drive Tray(s)	MCP-220-00007-01	1	Black USB/COM port tray for SC825, 836
Drive Tray(s)	MCP-220-00075-0B	16	Black gen 5.5 hot-swap 3.5"; HDD tray
Power Distributor	PDB-PT826-8824	1	PDB with longer 24pin for SC826B
Part(s)	MCP-260-00011-0N	1	I/O shield without any opening
Part(s)	MCP-290-83601-0V	1 set	Silver chassis handles (left and right) for SC836/835
Power Supply & Accessory	PWS-1K03A-1R	2	1U 1000W Redundant Power Supply Titanium W/PMbus 76x365x40mm,RoHS/REACH
Mounting Rail(s)	MCP-410-00007-0N	1	Rail screw bag
Mounting Rail(s)	MCP-290-00053-0N	1	Rail set, quick/quick, default for 2,3U 17.2";W
Rear Window	MCP-240-83605-0N	1	836B chassis rear window (to support the optional MCP-220-83605-0N)


Optional Parts List

	Part Number	Qty	Description
Cable	CBL-SAST-0573	-	External mini SAS HD to external mini SAS HD cable 28AWG (1M)
Cable	CBL-SAST-0690	-	2m external Mini SAS HD to external mini SAS HD.28AWG,RoHS/REACH
Cable	CBL-SAST-0677	-	3m external Mini SAS HD to external mini SAS HD.28AWG,RoHS/REACH
Drive Trays	MCP-220-00118-0B	-	Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH
