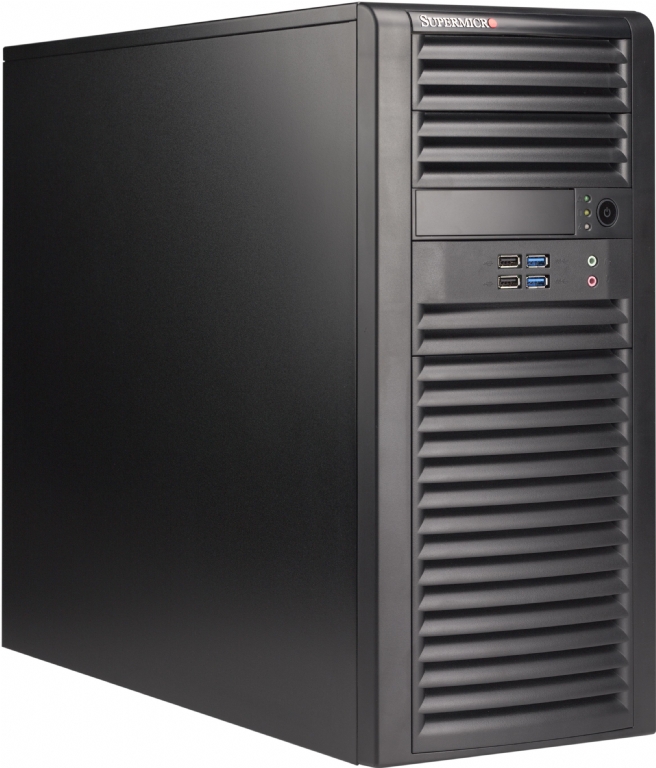

Supermicro CSE-732D4-500B

CSE-732D4-500B

Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.

Looking for Compatible Products?

More from this brand

Product Description

Product SKUs

CSE-732D4-500B	SuperChassis 732D4-500B


Form Factor

Mid-tower chassis support for max. motherboard size - 12" x 13" E-ATX, 12" x 10" ATX and 9.6" x 9.6" Micro-ATX


Processor Support

Dual, single Intel® / AMD processors


Dimensions

Height	16.7" (424 mm)
Width	7.6" (193 mm)
Depth	20.68" (525 mm)
Net Weight	28 lbs (12.7 kg)
Gross Weight	30 lbs (13.61 kg)
Packaging (W x H x L)	21.38" (543 mm) x 11.97" (304 mm) x 25.28" (642 mm)
Available Color	Black


Expansion Slots

7 full-height & full-length expansion slot(s)


Drive Bays

4 x 3.5" fixed drive bay Optional 4 x 2.5" fixed drive bay


Peripheral Drives

2 x standard 5.25" drive bay 1 x 3.5" internal fixed drive bay


Front Panel

Buttons	Power On/Off button
LEDs	1 Network Activity LEDs HDD activity LED Power Status LED System Overheat LED
Ports	2x USB 3.0 Port(s) 2x USB 2.0 Port(s) 2x HD/AC97 Audio port(s)


Motherboard (for CSE- 732D4-500B)

X9DAL-3	X9DAL-i
X9SAE	X9SAE-V
X9SCV-Q	X10SLQ
X10SL7-F	X10SLM+-LN4F
X10SLM+-F	X10SLH-F
X10SLM-F	X10SLL-F
X10SLL-S	X10SLL-SF
X10SLA-F	X10SLL+-F
X10SAE	C7Z87-OCE
X10SAT	X10SLQ-L
X11SSQ	X11SAE-M
X11SSQ-L	C7Z270-CG
C7H270-CG-ML	C7Z270-PG
C7Z270-CG-L	C7Q270-CB-ML
C7B250-CB-ML	C7Z370-CG-L
X10DAL-i


Servers (for CSE- 732D4-500B)

5039A-iL

Systems Cooling

Fans	1 x 12cm rear exhaust fan(s) Optional 1 x 12cm (front) cooling fan


Operating Environment (System)

Operating Temperature Range	5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non-Operating Relative Humidity Range	5% - 95% (non-condensing)


Power Supply
PS2/ATX 500W Multi-output power supply with 12CM fan, Bronze level
Power Efficiency	88%
Total Output Power and Input	500W with Input 100 - 240Vac
AC Input Frequency	50-60Hz
Dimensions (L x W x H)	140 x 150 x 86 mm
Output Type	24pin ATX
-12V	Max: 0.5A / Min: 0A
+12V	Max: 17A / Min: 1A (100Vac - 240Vac) Max: 17A (100Vac - 240Vac) Max: 17A (100Vac - 240Vac) Max: 18A (100Vac - 240Vac)
+5V	Max: 20A / Min: 0.5A
+3.3V	Max: 15A / Min: 0.5A
+5Vsb	Max: 3A / Min: 0A
Certification	Bronze Certified


Regulatory (Power Supply)

Power Supply Safety / EMC	CE/EMC FCC class B TUV/CB UL/CUL


Standard Parts List

	Part Number	Qty	Description
Cable(S)	CBL-0071L	1	CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,75CM,28AWG
Cable(S)	CBL-0084L	1	CBL,FRONT CNTL,SPLIT,16 PIN,W/CONVERTER HEAD,15CM,26AWG
Cable(S)	CBL-0160L	1	NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
Cable(S)	CBL-0453L	1	USB 3.0,INT,19 PIN/F TO 19PIN/F,60CM,CONNECT TO CBL-0454L
Cable(S)	CBL-0455L	1	CBL,AUDIO,HD/AC97,60cm
Fan(s)	FAN-0124L4	1	12 CM x12 CM fan
Front Bezel	MCP-210-73102-0B	1	SC731D Front Control Bezel Assembly w/o Card Reader
Drive Tray(s)	MCP-220-73101-0B	4	SC731 Tool-less Internal 3.5inch HDD Tray
Power Supply & Accessory	PWS-502-PQ	1	PS2 ATX 500W MULTI-OUTPUT HI-EFF PWS
Mounting Rail(s)	MCP-290-73102-0N	1	SC731 Card Reader Rail


Optional Parts List

	Part Number	Qty	Description
Adapter Cable	CBL-0454L	-	USB3.0 to 2.0 adapter cable - 30cm(19pin male to 9pin female)
Card Reader	MCP-450-73101-0B	-	All-In-One card reader (for SC732D only)
2.5" HDD Bracket	MCP-220-73201-0N	-	HDD Cage (4x Internal 2.5" fixed HDD bays)
Fan Kit	FAN-0124L4	-	12cm (1850rpm) cooling Fan
