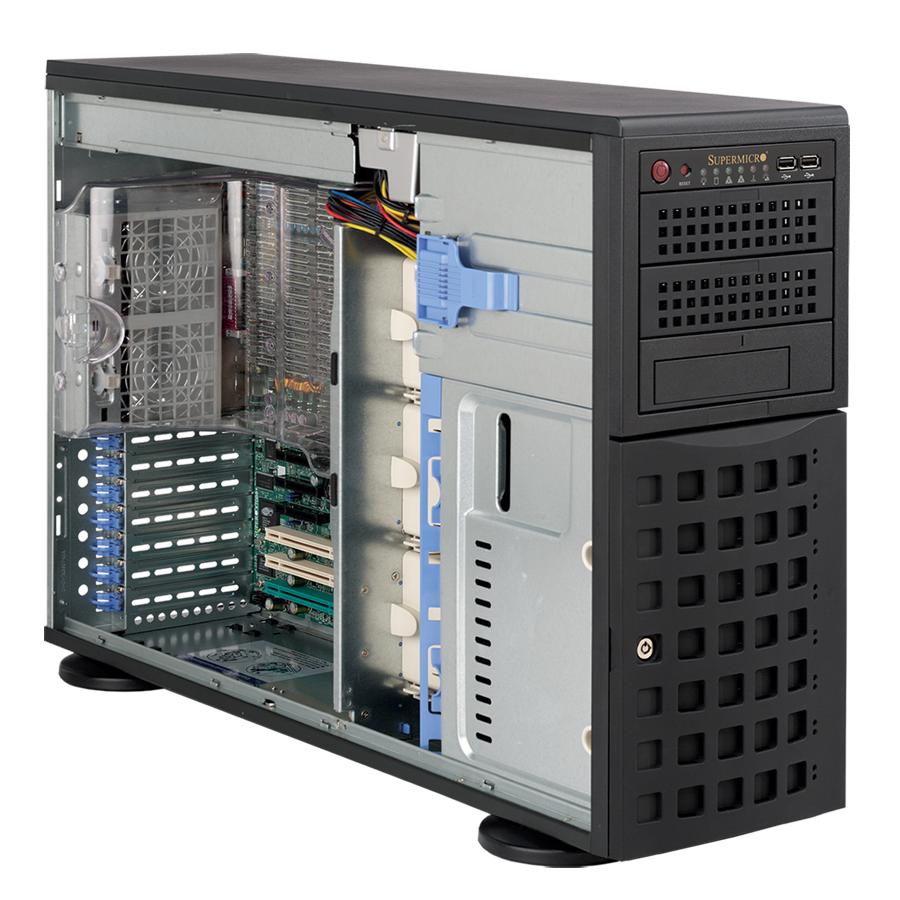

Supermicro CSE-745TQ-R800B

CSE-745TQ-R800B
Supermicro CSE-745TQ-R800B
£509.44
ex. VAT
This product is currently out of stock. We are expecting stock in Ordered On Request
Quantity


Product SKUs
CSE-745TQ-R800B
  • SuperChassis 745TQ-R800B

Form Factor
  • 4U chassis - supports for maximum motherboard sizes: E-ATX 13.68" x 13"

Processor Support
  • Single and Dual Intel® and AMD processors

Dimensions
Height
  • 17.8" (452 mm)
Width
  • 7" (178 mm)
Depth
  • 25.5" (647 mm)
Net Weight
  • 55 lbs (24.95 kg)
Gross Weight
  • 58 lbs (26.31 kg)
Packaging (W x H x L)
  • 24.6" (625 mm) x 14" (356 mm) x 31.3" (795 mm)
Available Color
  • Black

Expansion Slots
  • 7 full-height & full-length expansion slot(s)

Drive Bays
  • 8 x 3.5" hot-swap SAS/SATA drive bay with SGPIO

Backplane
  • 743 SAS BACKPLANE W/AMI MG9072

Peripheral Drives
  • 2 x USB 2.0 ports
  • 3 x standard 5.25" drive bay

Front Panel
Buttons
  • Power On/Off button
  • System Reset Button
LEDs
  • 2 Network Activity LEDs
  • Fan Fail/System Over Heat LED
  • HDD activity LED
  • Power Status LED
Ports
  • 2x USB 2.0 Port(s)
Motherboard (for CSE- 745TQ-R800B)
X9DRH-7F X9DRH-7TF
X9DRH-iF X9DRH-iTF
X8DTN+ X8DTN+-LR
X8DTH-6 X8DTH-6F
X8DTH-i X8DTH-iF
X8DT6 X8DT6-F
X8DTE X8DTE-F
X8DT3 X8DT3-F
X8DTi X8DTi-F
X8DTi-LN4F X8DT3-LN4F
X8DTL-3 X8DTL-3F
X8DTL-I X8DTL-IF
X8DTL-6 X8DTL-6F
X8DTL-6L X8DTL-L
X8DA6 X8DAE
X8DA3 X8DAi
X8DAL-3 X8DAL-i
X8SIL X8SIL-F
X8SIE X8SIE-F
C7B75 X10SAE
X10SAT X9DRH-iF-NV


Servers (for CSE- 745TQ-R800B)



Systems Cooling
Fans
  • 3 x 8cm hot-swap redundant PWM cooling fan(s)
  • Optional 2 x
  • 2 x 8cm hot-swap exhaust fan(s) & air shroud

Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply
1U 800W hot swap redundant power supply.
Power Efficiency
  • 89%
Total Output Power and Input
  • 800W with Input 100 - 240Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 336 x 76 x 40 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 66A / Min: 0.5A (100Vac - 240Vac)
+5Vsb
  • Max: 4A / Min: 0A
Power Distributor
  • PDB-PT745-8824

Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class A
  • TUV/CB
  • UL/CUL
Standard Parts List
  Part Number Qty Description
Air Shroud MCP-310-49001-0N 1 SC745 Intel DP X9, X8 PC air shroud 1368x13/12x13MB
HD Backplane CSE-SAS-743TQ 1 743 SAS BACKPLANE W/AMI MG9072
Cable(S) CBL-0044L 4 SATA,INT,FLAT,57.7CM,26AWG
Cable(S) CBL-0087 1 CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM
Cable(S) CBL-0157L 1 CBL,SGPIO,2X4F TO 2X4F,P2.54,RIBBON IN RND TUBE,40CM,28AWG
Cable(S) CBL-0160L 2 NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
Cable(S) CBL-0216L 3 4 PIN TO 4 PIN MIDDLE FAN POWER EXTENSION, 20cm. 24AWG(PWM)
Fan(s) FAN-0074L4 3 80X38MM 4-PIN PWM (MIDDLE) FAN W/HUS FOR SC743
Fan(s) FAN-0082L4 2 80x80x38 mm 4-pin PWM Fan Assembly for SC743, SC745
Drive Tray(s) MCP-220-00092-0B 8 Black Hot-swap 3.5inch HDD Tray (w/o logo)
Power Distributor PDB-PT745-8824 1 SC745 24PIN REDUNDANT POWER DISTRIBUTOR
Part(s) MCP-290-74502-0B 1 Plastic feet (4 pcs set) for 4U tower chassis, black color
Power Supply & Accessory PWS-801-1R 2 800W,1U,12V OUTPUT POWER SUPPLY

Optional Parts List
  Part Number Qty Description
Mounting Rail CSE-PT26L-(B) - 4U Chassis Rail Kit (Includes Side Handles) (B = Black)
LCD MCP-220-00095-0B - 5.25" USB LCD Kit
Fan Kit MCP-320-00046-0N-KIT - Rear fan kit (8.2K RPM fan) for SC747B / 835X / 836BH
Fan Kit MCP-320-00047-0N-KIT - Rear fan kit (5K RPM fan) for SC745B / 835X / 836BH
Cable CBL-0153L - 6pin GPU Power Adapter Cable from PDB 2x big 4pin, 16cm
Cable Management Arm MCP-290-00073-0N - Supermicro Cable Management Arm for 2U, 3U and 4U chassis (Extendable Length: 70mm to 830mm)
Add-on Card Dummy MCP-240-00096-0N - Black 5.25 LCD tray wo rail, support 1x 3.5 HDD
Peripheral Drive(s) DVM-LITE-DVDRW24-HBT - BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE PBF
HDD Tray Converter MCP-220-00080-0B - Adaptor HDD carrier to install 2.5" HDD in 3.5" HDD tray
