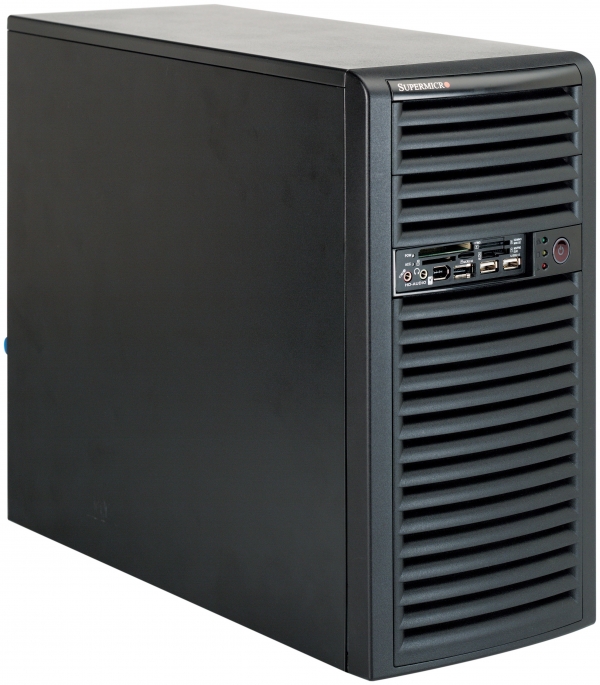

Supermicro SuperChassis 731D-300B (Black)

CSE-731D-300B
Supermicro SuperChassis 731D-300B (Black)
Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.
Looking for Compatible Products?
Product Description



Product SKUs
CSE-731D-300B
  • SuperChassis 731D-300B (Black)

Form Factor
Mini-Tower & chassis support for max. motherboard size -
9.6" x 9.6" micro-ATX

Processor Support
Supports single Intel® / AMD processor

Dimensions
Width
  • 7.25" (184 mm)
Height
  • 14.25" (362 mm)
Depth
  • 16.75" (425 mm)
Weight
  • 16 lbs (7.26 kg); Gross Weight: 20 lbs
Packaging
  • 11" (W) x 20" (H) x 21" (D)
    280mm (W) x 508mm (H) x 533mm (D)
Available Colors
  • Black

Expansion Slots
Supports 4x full-height, full-length I/O expansion slots

Drive Bays
Internal
  • 4x 3.5" tool-less HDD trays
  • SAS or enterprise SATA HDD only recommended
External
  • 2x 5.25" external drive bays
  • 1x 3.5" external drive bay

Front Panel
Buttons
  • Power On/Off button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LED
  • System Overheat LED
Card Reader
  • SATA, M2, TF, XD, MS, SD, CF, Audio, USB
System Cooling
Fans
    • 1x 9cm (rear) PWM fan w/ tool-less design
25dB
  • 1x 8cm (front) cooling fan (optional)
  • Optimized Cooling Technology at
     25dB Whisper-Quiet Operation

Operating Environment (System)
Operating Temperature Range
  • 5°C ~ 35°C (41°F ~ 95°F)
Non-Operating Temperature Range
  • -40°C ~ 60°C (-40°F ~ 140°F)
Operating Relative Humidity Range
  • 8% ~ 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply
300W AC power supply w/ PFC
AC Voltage
  • 100 - 240V, 50-60Hz, 5 Amp
DC Output
  • 5V + 12V + 3.3V - 12V < 290W
+5V
  • 19 Amp
+5V standby
  • 2.0 Amp
+12V
  • 11 Amp + 11.5 Amp
-12V
  • 0.15 Amp
+3.3V
  • 16.0 Amp
Certification Bronze Level Certified
  Bronze Certified
  [ Test Report ]

Regulatory (Power Supply)
Power Supply Safety / EMC
  • USA - UL listed, FCC
  • Canada - CUL listed
  • Germany - TUV Certified
  • Europe/CE Mark
  • EN 60950/IEC 60950-Compliant
  • CCC, BSMI
Standard Parts List
  Part Number Qty Description
Chassis CSE-731D-300B 1 SC731D-300 Mini Tower Chassis (black)
Cable(s) CBL-0084L 1 Front Control Panel Cable, 16-pin split convertor, 6"
Fan(s) FAN-0108L4 1 92x25mm 4-pin PWM Rear Cooling Fan for SC731
Drive Bays MCP-220-73101-0B

MCP-450-73101-0B		 4

1		 SC731 HDD Tray

SC731D Card Reader with E-SATA/M2/TF/XD/MS/SD/CF/Audio/USB
Power Supply PWS-303-PQ 1 300W ATX Power Supply
