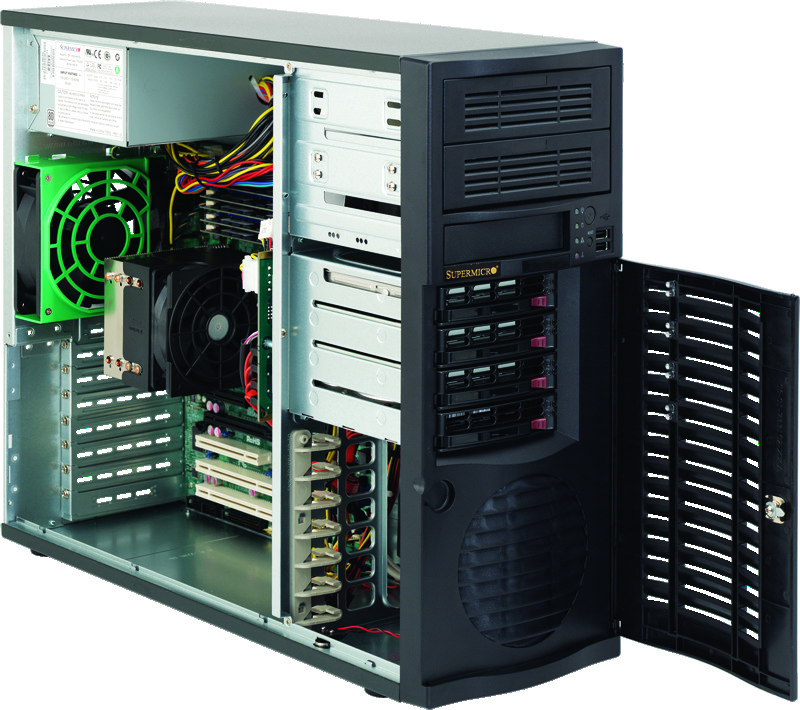

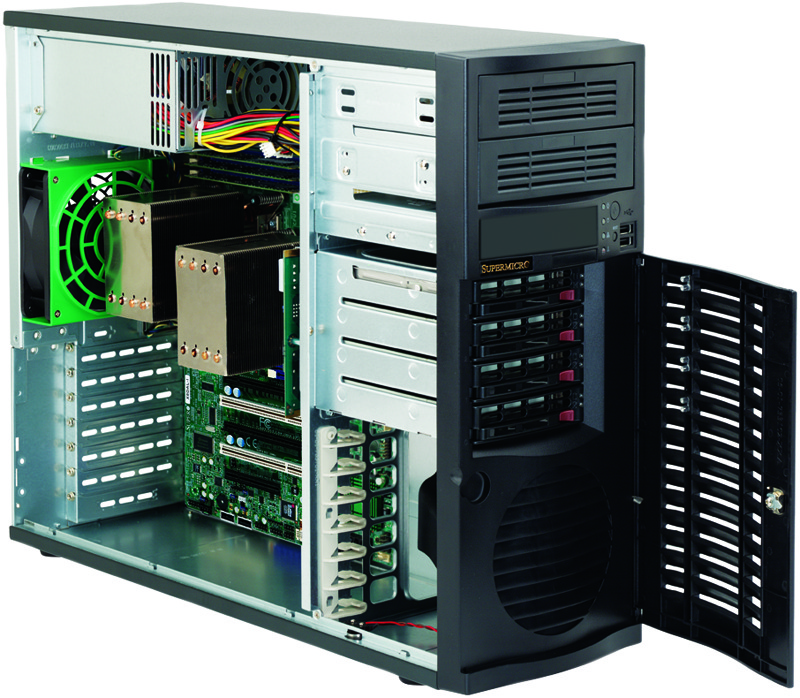

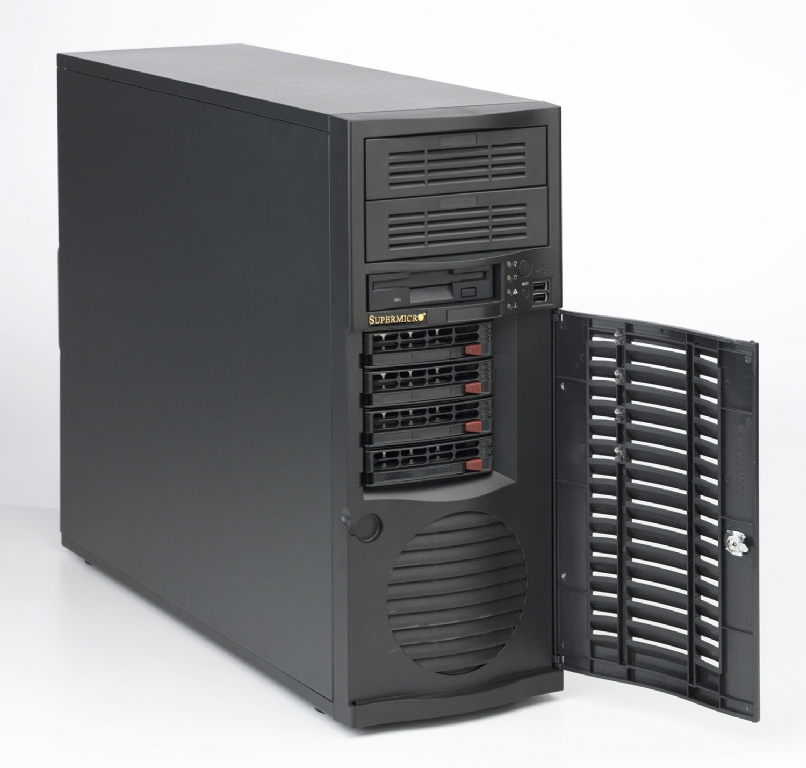

Supermicro SuperChassis 733TQ-665B (Black)

CSE-733TQ-665B

Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.

Looking for Compatible Products?

More from this brand

Product Description

Product SKUs - Discontinued SKU. Please contact sales-rep for possible OEM production quantities. MOQ may apply

CSE-733TQ-665B	SuperChassis 733TQ-665B


Form Factor

Mid-tower chassis - supports for maximum motherboard sizes: 12" x 13" E-ATX and ATX


Processor Support

Dual and Single Intel® and AMD processors


Dimensions

Height	16.8" (426 mm)
Width	7" (178 mm)
Depth	20.9" (531 mm)
Net Weight	38 lbs (17.24 kg)
Gross Weight	40 lbs (18.14 kg)
Packaging (W x H x L)	24.2" (615 mm) x 11.8" (300 mm) x 26.4" (671 mm)
Available Color	Black


Expansion Slots

7 full-height & full-length expansion slot(s)


Drive Bays

4 x 3.5" hot-swap SAS/SATA drive bay with SGPIO


Backplane

4x3.5" SAS2/SATA3 backplane w/SES-II


Peripheral Drives

2 x standard 5.25" drive bay 1 x 3.5" internal fixed drive bay


Front Panel

Buttons	Power On/Off button System Reset Button
LEDs	1 Network Activity LEDs HDD activity LED Power LED System Overheat LED
Ports	2x USB 2.0 Port(s)


Motherboard (for CSE- 733TQ-665B)

X9DAL-3	X9DAL-i
X9SRA	X9SAE
X9SAE-V	H8SCM
H8SCM-F	X8DTL-3
X8DTL-3F	X8DTL-I
X8DTL-IF	X8DTL-6
X8DTL-6F	X8DTL-6L
X8DTL-L	X8DAL-3
X8DAL-i	X9SCA
X9SCA-F	X8SIL
X8SIL-F	X8SIE
X8SIE-F	C7B75
H8SML-7F	H8SML-7
H8SML-iF	H8SML-i
X10SLM+-LN4F	X10SLH-F
X10SLM-F	X10SLL-F
X10SLL-S	X10SLL-SF
X10SLA-F	X10SLL+-F
X10SAE	C7Z87
C7Z87-OCE	X10SAT
X10SLX-F	X10DAL-i

Systems Cooling

Fans	1 x 12cm rear exhaust fan(s) 1 x 9cm hot-swap cooling fan(s)


Operating Environment (System)

Operating Temperature Range	5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non-Operating Relative Humidity Range	5% - 95% (non-condensing)


Power Supply
PS2/ATX 665W Multi-output power supply, super quiet, Bronze level
Power Efficiency	89%
Total Output Power and Input	665W with Input 100 - 240Vac
AC Input Frequency	50-60Hz
Dimensions (L x W x H)	185 x 150 x 86 mm
Output Type	24pin ATX
-12V	Max: 0.5A / Min: 0A
+12V	Max: 54A / Min: 1A (100Vac - 240Vac)
+5V	Max: 30A / Min: 0.5A
+3.3V	Max: 24A / Min: 0.3A
+5Vsb	Max: 6A / Min: 0A
Certification	Bronze Certified


Regulatory (Power Supply)

Power Supply Safety / EMC	BSMI CCC CE/EMC FCC class B TUV/CB UL/CUL


Standard Parts List

	Part Number	Qty	Description
HD Backplane	CSE-SAS-733TQ	1	4x3.5" SAS2/SATA3 backplane w/SES-II
Cable(S)	CBL-0049L	1	CBL,FRONT CNTL,16 TO 16 PIN,RA,FLAT,54CM,28AWG
Cable(S)	CBL-0084	1	Front control cable 16 pin split, 6
Cable(S)	CBL-0160L	1	NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
Fan(s)	FAN-0076L4	1	92X25MM 4-PIN PWM FAN W/ HUS FOR SC733
Fan(s)	FAN-0077L4	1	120X38MM 4-PIN PWM FAN W/HUS FOR SC733 (REV. B)
Front Bezel	MCP-210-73301-0B	1	Black Front Bezel for SC733T (hot-swap HDD)
Drive Tray(s)	MCP-220-00093-0B	4	Black gen 3.5 hot-swap 3.5"; HDD tray (w/o logo)
Drive Tray(s)	CSE-PT36-BOEM	1	Black 5.25 drive tray w/ rail for SC942 w/o logo


Optional Parts List

	Part Number	Qty	Description
Heatsink / Retention	-	-	Please refer to our Thermal Components Matrix
Cable	CBL-0140L	-	IDE 80-WIRE CABLE FOR DVD ROM, 60 CM, LF
Peripheral Drive(s)	MCP-450-73101-0B	-	SC731D All-In-One Card Reader 3.5inch
Peripheral Drive(s)	DVM-SONY-DVDRW-HB	-	BLACK SONY HALF HEIGHT DVD-RW IDE DRIVE, PBF
Front USB	DVM-LITEONFH-DVDRWB	-	Black 5.25" IDE DVD-RW, LITEON
Peripheral Drive(s)	DVM-LITE-DVDRW-HBT	-	Black 5.25" SATA DVD-RW, LITEON, PBF
Peripheral Drive(s)	DVM-LITE-DVD-HBT	-
HDD Tray	MCP-220-00043-0N	-	Black hotswap gen 4 3.5 to 2.5 HDD tray
