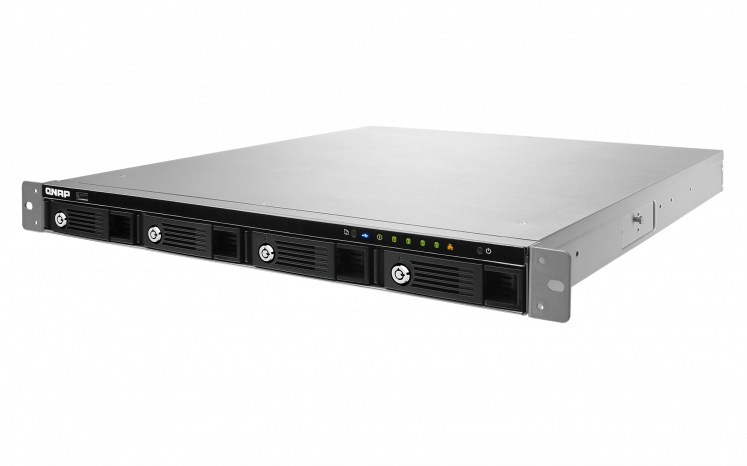

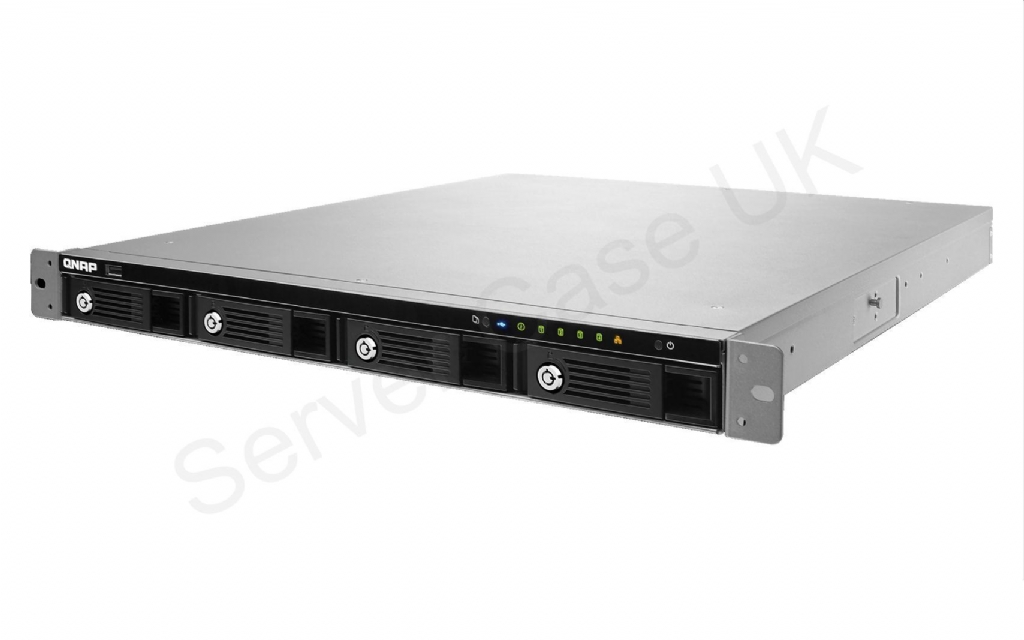

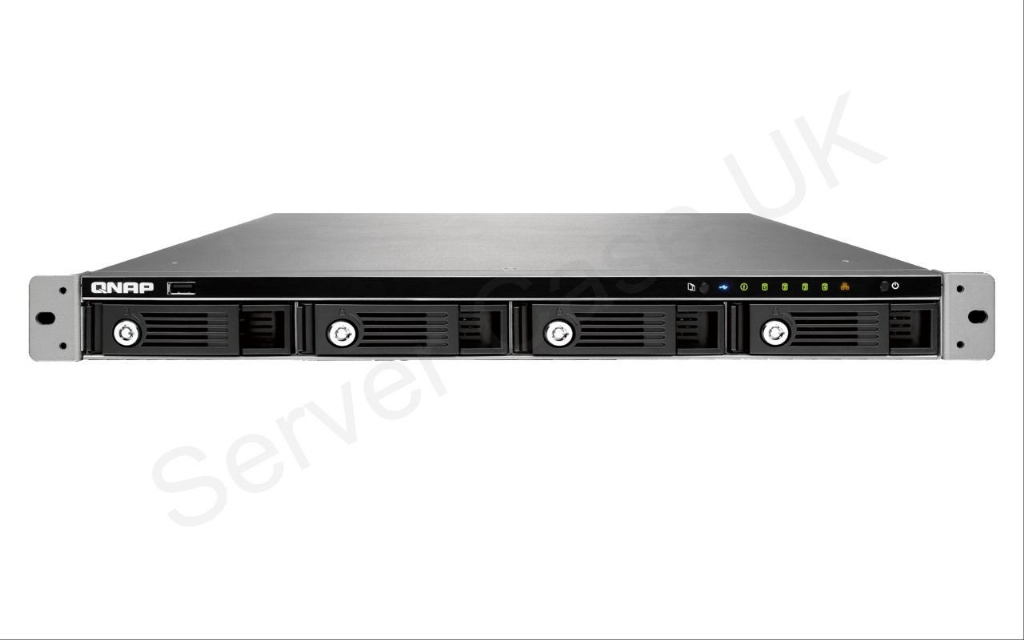

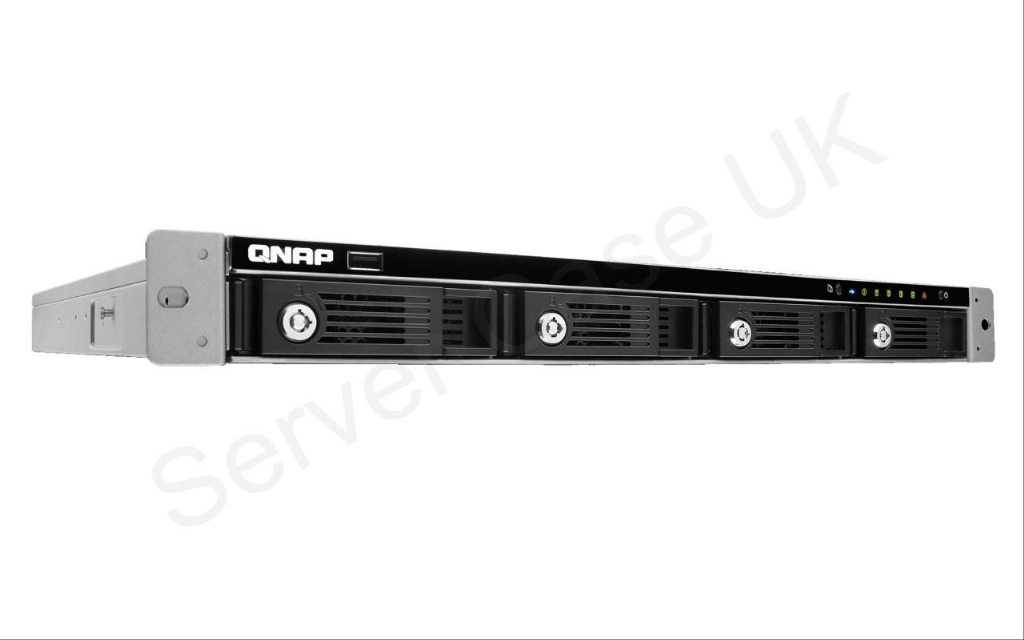

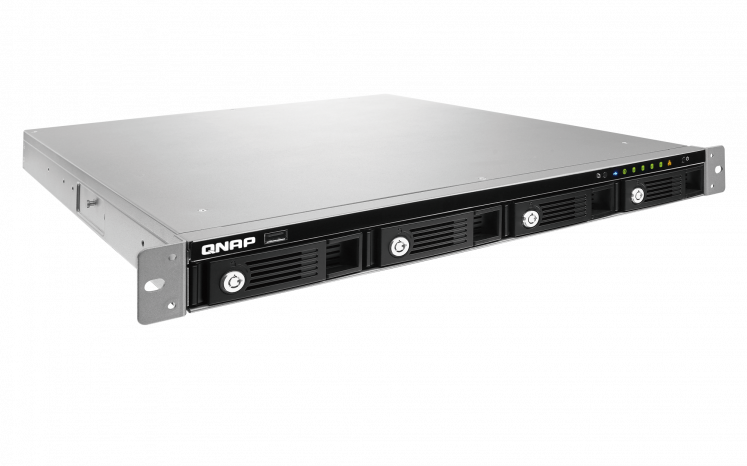

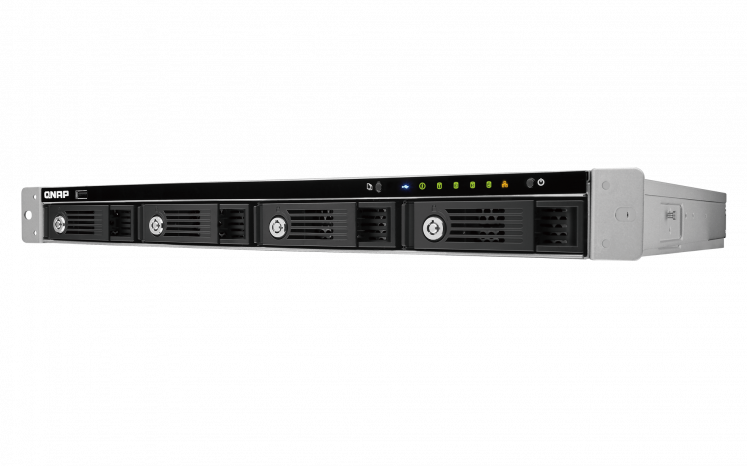

QNAP TS-469U-RP Rack NAS Server Atom 2.13GHz 1GB 4-Bay for Small and Medium Business Users

Modern businesses and workgroups face the challenge of finding a robust storage solution that can scale with the exponential increase in digital content their organization creates. From shared documents, old archived files and large rich media files, through to enterprise databases and core applications data, this challenge will only become more acute. Deploying an appropriate IT environment with a reliable, affordable, and expandable storage solution is business critical. The ability to securely store, share, and back up digital assets has become one of the most important tasks for an SMB IT administrator, choosing the right option will significantly enhance business productivity and crucially offer a reliable disaster recovery solution in an age when downtime of any nature impacts profitability.



The QNAP TS-469U-RP is a 4-bay, all-in-one NAS server with exceptional performance that can meet the storage requirements of modern SMB IT environments. Features include, secure cross-platform file sharing for Windows, Mac, and Linux/UNIX users, an iSCSI/ IP-SAN storage combo solution and a number of versatile, value-added business applications. With a well-rounded set of backup solutions integrated in the QNAP TS-469U-RP, critical business information can be safely protected against unexpected data loss. The QNAP TS-469U-RP is also an ideal shared storage solution for virtualized and clustered environments, via VMware Ready and Citrix Ready certification, and a proven compatibility with Microsoft Hyper-V environments. The IT administrators can use the Surveillance Station Pro on the Turbo NAS to manage the connected IP cameras and set up a video surveillance system with comprehensive monitoring, recording, and playback features through mobile access. The intuitive MyCloudNAS service simplifies the process of publishing content residing on the Turbo NAS over the Internet and helps users create a private cloud in just a few simple steps. The mobile apps Qfile, Qmanager, and Qmobile provide iOS or Android users a convenient way to access and monitor the Turbo NAS live and on the go.Features

• QNAP TS-469U-RP Rackmount NAS Server
• Intel Atom 2.13GHz Dual-core Processor
• 1GB RAM (512MB DOM Flash)
• Operating Syatem: QNAP Turbo NAS System 3.7
• Centralized Storage, Backup, and File Sharing for Business
• NAS, iSCSI/ IP-SAN Storage Combo Solution for Server Virtualization
• Private Cloud Storage for Ease of Deployment
• Exceptional Performance: 221.8 MB/sec Reading, 220.8 MB/sec Writing
• Secure Measures for Data Storage and Access
• The Surveillance Station Pro supports over 1,000 IP cameras and compatible with ONVIF/PSIA specifications
• TS-469U-RP is equipped with two power supply units
• Advanced folder permissions allow users to configure folder/subfolder access to the Turbo NAS
• FIPS 140-2 Certified AES 256-bit Volume-based Data Encryption
• Virtual LAN and Wireless LAN

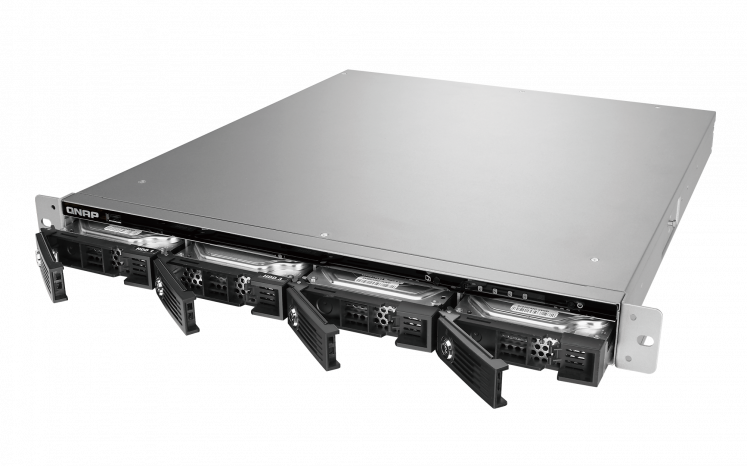

• 4 x hot-swappable and lockable tray

Specifications

CPU
Processor	Intel Atom 2.13GHz
Processors (Max)	1 (1)
Electrical
Power Supply	Dual Redundant
Voltage/Power/Frequency	100 to 240V AC / 52W / 47 to 63Hz
Electrical Power Available	250W
Cooling System	2 x quiet cooling fan (11.5 cm, 12V DC)
Environmental
Environmental	Operating Temperature 0 to 40�C - Humidity 0 to 95%
General
Model Name	TS-469U-RP
Warranty	3 years limited warranty.
Barcode	4712511123425

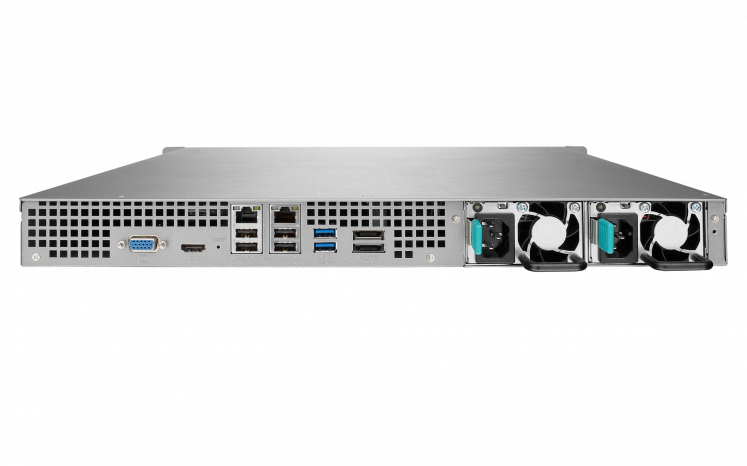

Interfaces/Ports
RJ-45 Ports	2 x RJ-45
USB Ports	2 x USB 3.0 � 5 x USB 2.0
VGA Port	1 x 15-pin VGA
eSATA Ports	2 x eSATA
Memory
Memory (Maximum)	1GB (3GB)
Flash Memory	512MB
Network (Wired)
Network Card	Ethernet 10/100/1000Mbps
Network Transport Protocols	TCP/IP
Network Client Types	DHCP Client
Network Connection	Dual Gigabit NICs with Jumbo Frame (Failover, Multi-IP Settings, Port Trunking/NIC Teaming); Service Binding based on Network Interfaces; Virtual LAN (VLAN ); UPnP & Bonjour Discovery
Physical
Case Colour	Black
In The Box	TS-469U-RP NAS Server � CD-ROM � Ethernet Cable x 2 � Screw x 8 � Handle x 2 � Quick Installation Guide � Flat Head Screw x 12 (for 2.5 inch HDD) � Flat Head Screw x 16 (for 3.5 inch HDD) � Power Cord � Mount kit x 2 � Hard disk lock
Dimensions	43.9cm (W) x 49.9cm (D) x 4.4cm (H) - Weight 7.63kg
LED Status Indicators	Status, LAN, USB, HDD 1, HDD 2, HDD3, HDD4
Storage
Hard Drive Interface	SATA
Hard Disk	0GB (4 x 0GB)
System
Management	Power Management: Wake on LAN, Internal Hard Drive Standby Mode, Scheduled Power on/off (Max 15 Settings), Automatic Power on after Power Recovery, USB and Network UPS support with SNMP Management � Access Right Management: Max No. of Users: 4096, Max No. of User Groups: 512, Max No. of Network Shares: 512, Batch Creating Users, Import/Export Users, User Quota Management, Subfolder Permissions Support for CIFS/SMB, AFP, FTP and Web File Manager
Security	IP Filter & Policy-based Automatic IP Blocking; Network Access Protection with Auto-blocking; Encrypted Access: HTTPS, FTP with SSL/TLS (Explicit), SSH/SFTP (admin only), Encrypted Remote Replication (Rsync over SSH); CIFS Host Access Control for Shared Folders; Antivirus Protection; FIPS 140-2 Certified AES 256-bit Volume-based Data Encryption; AES 256-bit External Drive Encryption; Importable SSL Certificate; Instant Alert via E-mail, SMS, Instant Messaging (Windows Live), and Beep
Language Selection	Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish
Operating System	Turbo NAS System 3.7
System Requirements
Operating Systems Supported	Windows XP, Vista, Windows 7 (32/64-bit), Windows Server 2003/2008 R2 � Apple Mac OS X � Linux and Unix
