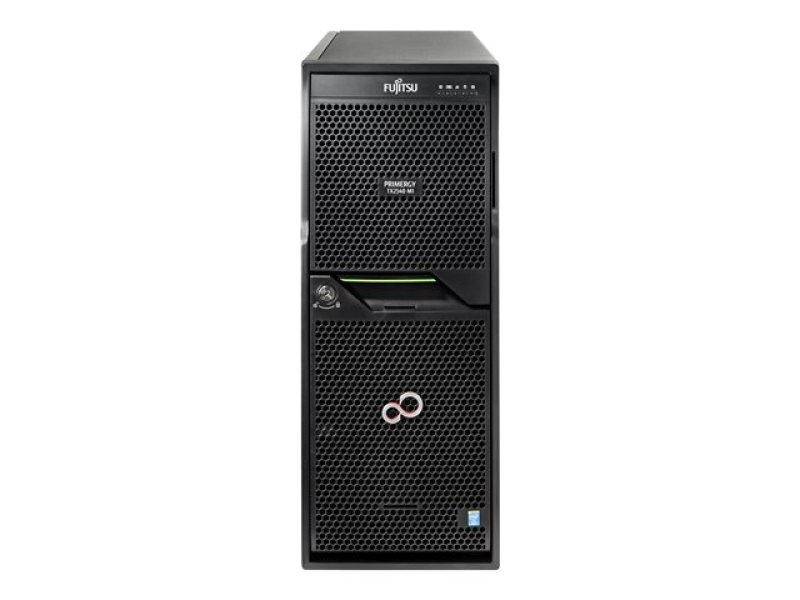

Fujitsu PRIMERGY TX2540 M1 Xeon E5-2420V2 2.2GHz 16GB RAM 4U Tower Server
VFY:T2541SX110GB
Fujitsu PRIMERGY TX2540 M1 Xeon E5-2420V2 2.2GHz 16GB RAM 4U Tower Server
Sorry, but this product is no longer available to purchase online.
Please contact us to discuss alternative products which may be suitable.
Please contact us to discuss alternative products which may be suitable.
Product Description
Technical Specifications
Miscellaneous | |
|---|---|
| Features | 94% efficiency power supply |
| Compliant Standards | FCC Class A certified, TUV GS, C-Tick, BSMI, CB, RoHS, WEEE, cULus, cCSAus, VCCI Class A, JIS C 61000-3-2 |
RAM | |
| Memory Speed | 1600 MHz |
| Memory Specification Compliance | PC3-12800 (1600 MHz) |
| Installed Size | 16 GB / 192 GB (max) |
| Technology | DDR3 SDRAM - Advanced ECC |
| Effective Memory Speed | 1600 MHz |
| Features | Registered |
| Configuration Features | 2 x 8 GB |
Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years - on-site |
| Service & Support Details | Limited warranty - 3 years - on-site |
General | |
| Type | Server |
| Product Form Factor | Tower - 4U |
| Server Scalability | 2-way |
| Front Accessible Bays Qty | 3 |
| Hot-Swap Bays Qty | 4 |
| Localisation | United Kingdom |
Processor / Chipset | |
| CPU | Intel Xeon E5-2420V2 / 2.2 GHz |
| Max Turbo Speed | 2.7 GHz |
| Number of Cores | 6-core |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Intel Turbo Boost Technology 2 |
| Chipset Type | Intel C602 |
Cache Memory | |
| Installed Size | 15 MB |
| Cache Per Processor | 15 MB |
Hard Drive | |
| Type | No HDD |
Storage Controller | |
| Type | 1 x RAID - plug-in card |
| Controller Interface Type | SATA 6Gb/s / SAS 6Gb/s |
| Channel Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| Buffer Size | 1 GB |
Storage Controller (2nd) | |
| Type | 1 x SATA - integrated |
| Controller Interface Type | SATA 3Gb/s |
| Channel Qty | 6 |
| RAID Level | RAID 0, RAID 1, RAID 10 |
Optical Storage | |
| Type | DVD±RW (±R DL) / DVD-RAM - SATA |
Monitor | |
| Monitor Type | None. |
Graphics Controller | |
| Type | Integrated |
| Video Interfaces | VGA |
Networking | |
| Type | Integrated |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | Intel I210 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | IPMI 2.0 |
| Remote Management Controller | Integrated Remote Management Controller (iRMC) |
| Features | PXE support |
Expansion / Connectivity | |
| Bays | 4 (total) / 4 (free) x hot-swap 3.5" ¦ 3 (total) / 2 (free) x external 5.25" |
| Slots | 2 (total) / 1 (free) x CPU ¦ 12 (total) / 10 (free) x memory ¦ 2 (total) / 2 (free) x PCIe 3.0 x8 - full-height ( x4 mode ) ¦ 2 (total) / 2 (free) x PCIe 3.0 x16 - full-height ( 2 processors must be installed ) ¦ 1 (total) / 0 (free) x PCIe 2.0 x8 - full-height ( x4 mode ) ¦ 1 (total) / 1 (free) x PCI |
| Interfaces | 9 x USB 2.0 ¦ 1 x VGA ¦ 1 x serial ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x management (NIC) |
Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Nominal Voltage | AC 120/230 V ( 50/60 Hz ) |
| Power Provided | 450 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Efficiency | 94% |
Dimensions & Weight | |
| Width | 17.7 cm |
| Depth | 65.1 cm |
| Height | 45.6 cm |
Environmental Parameters | |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 10 - 85% (non-condensing) |
