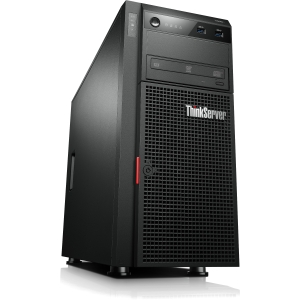

Lenovo ThinkServer TS440 70AN0000UK Tower Server - 1 x Intel Xeon E3-1225 v3 3.20 GHz
70AN0000UKPlease contact us to discuss alternative products which may be suitable.
Enterprise-Class
The ThinkServer TS440 is a true enterprise-class server. Thanks to the increased performance of the latest Intel® Xeon® E3-1200 v3 series processors, the TS440 has the power and speed to handle your workload with ease. To help keep you up and running and your data safe, the TS440 includes reliability features such as error correcting code (ECC) memory and an onboard storage controller with the capability of implementing up to RAID 5. You can also choose between enterprise SAS or SATA hot-swap drives. Plus, the TS440 is designed for 24/7 operation and is certified for MSP support with many ecosystem vendors.
Specifications
| General Information | |
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 70AN0000UK |
| Manufacturer Website Address | http://www.lenovo.com/uk/en/ |
| Brand Name | Lenovo |
| Product Line | ThinkServer |
| Product Series | TS440 |
| Product Model | 70AN0000UK |
| Product Name | ThinkServer TS440 70AN0000UK Server |
| Marketing Information |
Enterprise-Class The ThinkServer TS440 is a true enterprise-class server. Thanks to the increased performance of the latest Intel® Xeon® E3-1200 v3 series processors, the TS440 has the power and speed to handle your workload with ease. To help keep you up and running and your data safe, the TS440 includes reliability features such as error correcting code (ECC) memory and an onboard storage controller with the capability of implementing up to RAID 5. You can also choose between enterprise SAS or SATA hot-swap drives. Plus, the TS440 is designed for 24/7 operation and is certified for MSP support with many ecosystem vendors. |
| Product Type | Server |
| Processor & Chipset | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Manufacturer | Intel |
| Processor Type | Xeon |
| Processor Model | E3-1225 v3 |
| Processor Core | Quad-core (4 Core) |
| Processor Speed | 3.20 GHz |
| 64-bit Processing | Yes |
| Chipset Manufacturer | Intel |
| Chipset Model | C226 |
| Memory | |
| Standard Memory | 4 GB |
| Maximum Memory | 32 GB |
| Memory Technology | DDR3 SDRAM |
| Memory Standard | DDR3-1600/PC3-12800 |
| Number of Total Memory Slots | 4 |
| Storage | |
| Optical Drive Type | DVD-Writer |
| Optical Media Supported | DVD±R/±RW |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 1+0, 5 |
| I/O Expansions | |
| Number of Total Expansion Bays | 6 |
| Number of Total Expansion Slots | 4 |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | HD P4600 |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 8 |
| Software | |
| Operating System | No |
| Power Description | |
| Maximum Power Supply Wattage | 450 W |
| Miscellaneous | |
| Green Compliant | Yes |
| Green Compliance Certificate/Authority | GREENGUARD |
| Green Compliance Certificate/Authority | ENERGY STAR 1.1 |
| Green Compliance Certificate/Authority | RoHS |
| Physical Characteristics | |
| Colour | Business Black |
| Form Factor | Tower |
| Height | 429.3 mm |
| Width | 195.1 mm |
| Depth | 594.4 mm |
| Weight (Approximate) | 28 kg |
| Warranty | |
| Limited Warranty | 1 Year |
