The PRIMERGY RX Rack Server family is the perfect platform to form dynamic infrastructures for your business processes today and in the coming decade. You will thus benefit several times over from our recognized experience in optimized data centre technology and our innovative strength in developing energy-efficient and cost/ performance-optimized rack systems for universal use. PRIMERGY rack servers, built upon industry standards, focus from a functional viewpoint on core features: energy efficiency, reliability, optimized for virtualization, ease of operation and maintenance, flexibility for your future. And thus they notably meet your requirements for outstanding cost efficiency. Optimal operating costs and long-term usability comply with the IT quality required by your customers. Our responsibility goes way beyond the hardware as our tailor-made ServicePackages mean that you can rely on the best support for your IT during its whole lifecycle.

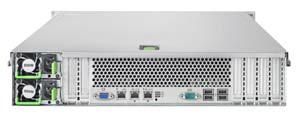

The Fujitsu PRIMERGY RX300 S7 is a dual socket rack server, focusing on versatility and scalability. The new modular concept supports excellent expandability with up to 16 hard disk drives, up to 7 PCIe Gen 3 cards and up to 768GB RAM, all in one single 2U rack housing. Furthermore, the new Intel Xeon E5 product family delivers the top performance to ensure today's demand while being prepared for future requirements thanks to the upgrade kits as well as the cost saving Modular LAN options. Thanks to the power supply units with 94% efficiency and the new power management this will result in lower operational costs. This 2U power house is the right choice for all types of business applications and consolidations.Features
Specifications
BIOS | |
BIOS Features | ROM based setup utility • Recovery BIOS • BIOS settings save and restore • Local BIOS update from USB device • Online update tools for main Windows and Linux versions • Local and remote update via ServerView Update Manager • SMBIOS V2.4 • Remote PXE boot support • Remote iSCSI boot support |
CPU | |
Processor | Intel Xeon (Six Core) E5 (2630) 2.3GHz 15MB (L3 Cache) |
CPU Bus Speed | 1333GHz |
Electrical | |
Power Supply | 450W Hot Plug |
Cooling System | 4+1 redundant |
Cooling Fans | 5 |
Environmental | |
Environmental | Operating Temperature 10 to 35°C - Humidity 10 to 85% |
Noise Level (full operating mode) | 48dbA |
General | |
Model Name | S7 |
Product Family | RX 300 |
Product Type | Server |
Warranty | 3 Year On-Site |
Barcode | 4051554413736 |
Input | |
Buttons | On/off switch • Reset button • NMI button • ID button |
Interfaces/Ports | |
VGA Port | 2 x 15-pin VGA |
USB Ports | 10 x USB (2 x Front, 4 x Rear, 2 x Internal) |
Serial Ports | 1 x 9-pin RS-232-C |
RJ-45 Ports | 2 x RJ-45 |
Management Port | 1 x RJ-45 (dedicated for iRMC S3 Management) |
Memory | |
Memory (Maximum) | 8GB (768GB) DDR3 |
Memory Slots (Free) | 24 x DIMM |
Motherboard | |
Motherboard | D2939 |
Chipset | Intel C600 |
PCI Express Slot | 5 x PCI Express 3.0 x8 (Low Profile ) • (2nd Processor Required) 2 x PCI-Express 3.0 x16 (Low Profile) Slots |
Network | |
Network Card | 2 x 1350 Ethernet 10/100/1000MBps |
Physical | |
Dimensions | 48.26cm (W) x 77.0cm (D) x 86.9cm (H) - Weight 25.0kg |
LED Status Indicators | System status (orange / yellow) • Identification (blue) • Hard disks access (green) • Power (amber / green) • At system rear side: • System status (orange / yellow) • Identification (blue) • LAN connection (green) • LAN speed (green / yellow) |
Mounting Type | Rack |
Storage | |
External Expansion Bays | 3 x 5.25 inch |
Internal Expansion Bays | 4 x 2.5 inch |
System | |
Management | ServerView Suite - Deploy • ServerView Suite - Control • ServerView Suite - Maintain • ServerView Suite - Integrate |
System Requirements | |
Operating Systems Supported | Microsoft Hyper-V Server 2008 R2 • Microsoft Windows Server 2008 R2 Datacentre • Microsoft Windows Server 2008 R2 Enterprise • Microsoft Windows Server 2008 R2 Standard • Microsoft Windows Web Server 2008 R2 • Microsoft Windows HPC Server 2008 R2 Suite • Microsoft Windows Small Business Server 2011 Premium Add-On • Microsoft Windows Small Business Server Standard 2011 • Microsoft Windows Server 2008 Datacentre • Microsoft Windows Server 2008 Enterprise • Microsoft Windows Server 2008 Standard • Microsoft Windows Web Server 2008 • VMware vSphere 5.0 Embedded • VMware vSphere 5.0 • VMware vSphere 4.1 • VMware vSphere 4.1 Embedded • VMware vSphere 4.1 Installable • VMware vSphere 4.0 • VMware vSphere 4.0 Embedded • VMware vSphere 4.0 Installable • Novell SUSE Linux Enterprise Server 11 • Novell SUSE Linux Enterprise Server 10 • Novell SUSE Linux Enterprise Server 10 with XEN • Red Hat Enterprise Linux 6 • Red Hat Enterprise Linux 5 • Red Hat Enterprise Linux 5 with XEN • Citrix XenServer |
